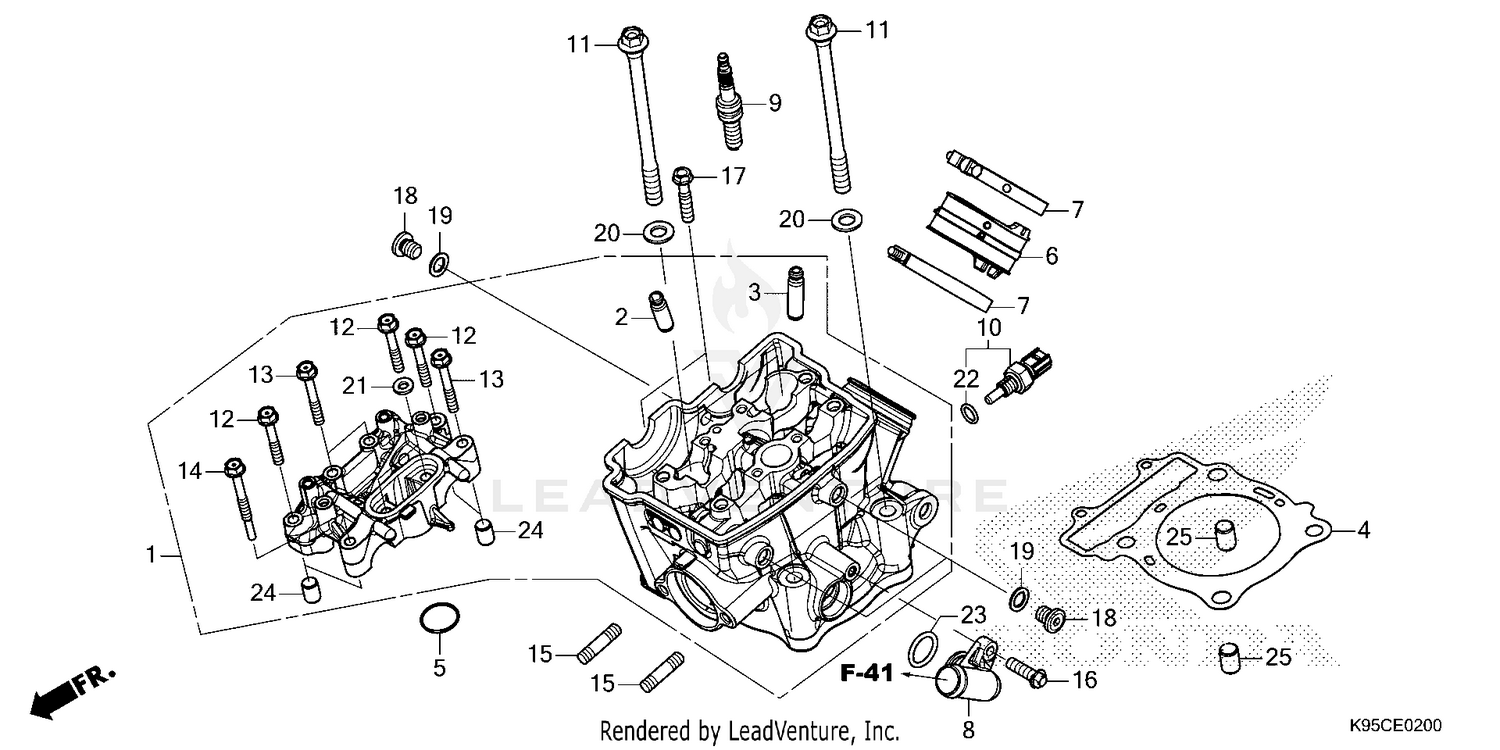

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY.
12010-K95-AA0
|
$662.85 | ||
|
Unavailable |
|||
|
#2
GUIDE, VALVE (OVER SIZE)
12204-K95-P20
|
$17.31 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, VALVE (OVER SIZE)
12204-KRN-P10
|
$16.15 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, CYLINDER HEAD
12251-K95-A21
|
$35.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
O-RING, PLUG HOLE
12395-MKR-D10
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
INSULATOR
16211-K95-AA0
|
$16.22 | ||
|
Unavailable |
|||
|
#7
BAND, INSULATOR
16217-MKE-AF0
|
$13.96 | ||
|
Available to order. Add to View Price |
|||
|
#8
JOINT, WATER
19523-KRN-730
|
$20.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPARK PLUG (SILMAR9A9S) (NGK)
31909-MEN-A31
|
$22.13 | ||
|
Unavailable |
|||
|
#10
SENSOR ASSY., WATER TEMPERATURE
37870-KZR-601
|
$10.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (10X135)
90001-K95-A20
|
$9.82 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X40)
90003-K95-A20
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X45)
90004-K95-AA0
|
$3.49 | ||
|
Unavailable |
|||
|
#14
BOLT (6X45)
90007-K95-AA0
|
$6.00 | ||
|
Unavailable |
|||
|
#15
BOLT, STUD (8X34)
90012-KM9-000
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X20)
90020-GHB-660
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X28)
90020-GHB-690
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, SPECIAL (10MM)
90042-K95-AA0
|
$5.02 | ||
|
Unavailable |
|||
|
#19
WASHER, SEALING (10.2MM)
90443-MB0-000
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLAIN (10MM)
90453-MKE-A00
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SEALING (6.5MM)
90463-ML7-000
|
$3.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
O-RING (9.5X1.9)
91307-KZR-600
|
$1.65 | ||
|
Unavailable |
|||
|
#22
O-RING (9.5X1.9) (PANASONIC)
91307-PLC-004
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING (19X3) (NOK)
91312-KE7-003
|
$2.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
PIN A, DOWEL (8X10)
94301-08100
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN A, DOWEL (12X16)
94301-12160
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
