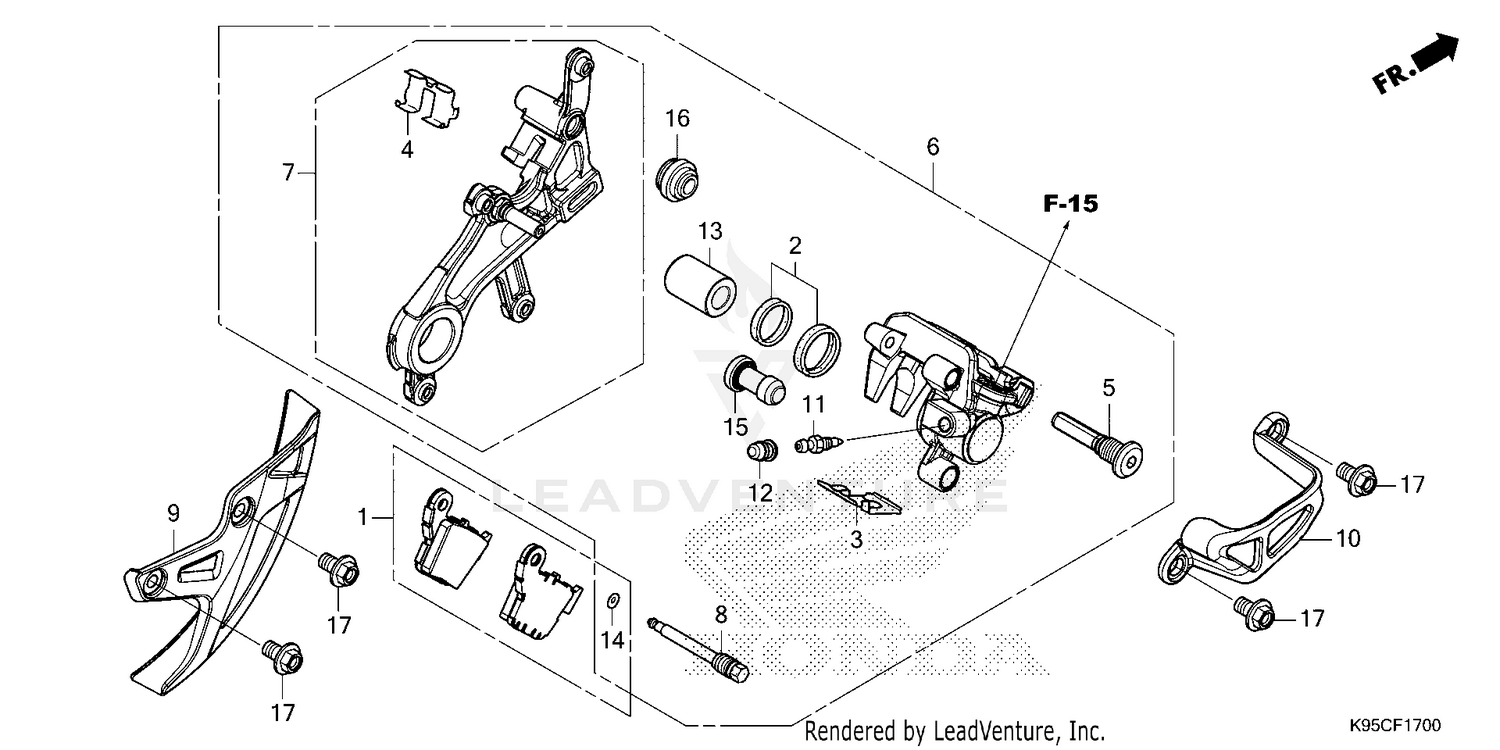

Rear Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PAD SET, RR.
06435-MKE-AA1
|
$73.54 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAL SET, PISTON (RIGHT SIDE, QTY-1 & LEFT SIDE QTY-1, TOTAL QTY-2)
06451-MZ2-405
|
$15.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, PAD
43108-KZ4-J41
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
RETAINER, BRACKET
43112-KZ4-J41
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, PIN
43131-KW3-006
|
$12.47 | ||
|
Available to order. Add to View Price |
|||
|
#6
CALIPER SUB-ASSY., RR. (MSDS)
43150-MKE-A01
|
$291.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET SUB-ASSY., RR.
43190-MKE-A01
|
$196.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, HANGER
43215-KZ4-J41
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, RR. DISK
43330-MKE-AA0
|
$26.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUARD, RR. CALIPER (LIMITED EDITION)
43340-MEN-A20
|
$22.96 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, BLEEDER (NISSIN)
43352-568-003
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, BLEEDER
43353-461-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
PISTON (22 A)
45107-MCT-006
|
$35.73 | ||
|
Available to order. Add to View Price |
|||
|
#14
RING, STOPPER
45111-MAJ-G41
|
$4.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOOT, PIN BUSH (NISSIN)
45132-166-016
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOOT B
45133-MA3-006
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X10)
90026-GHB-610
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
