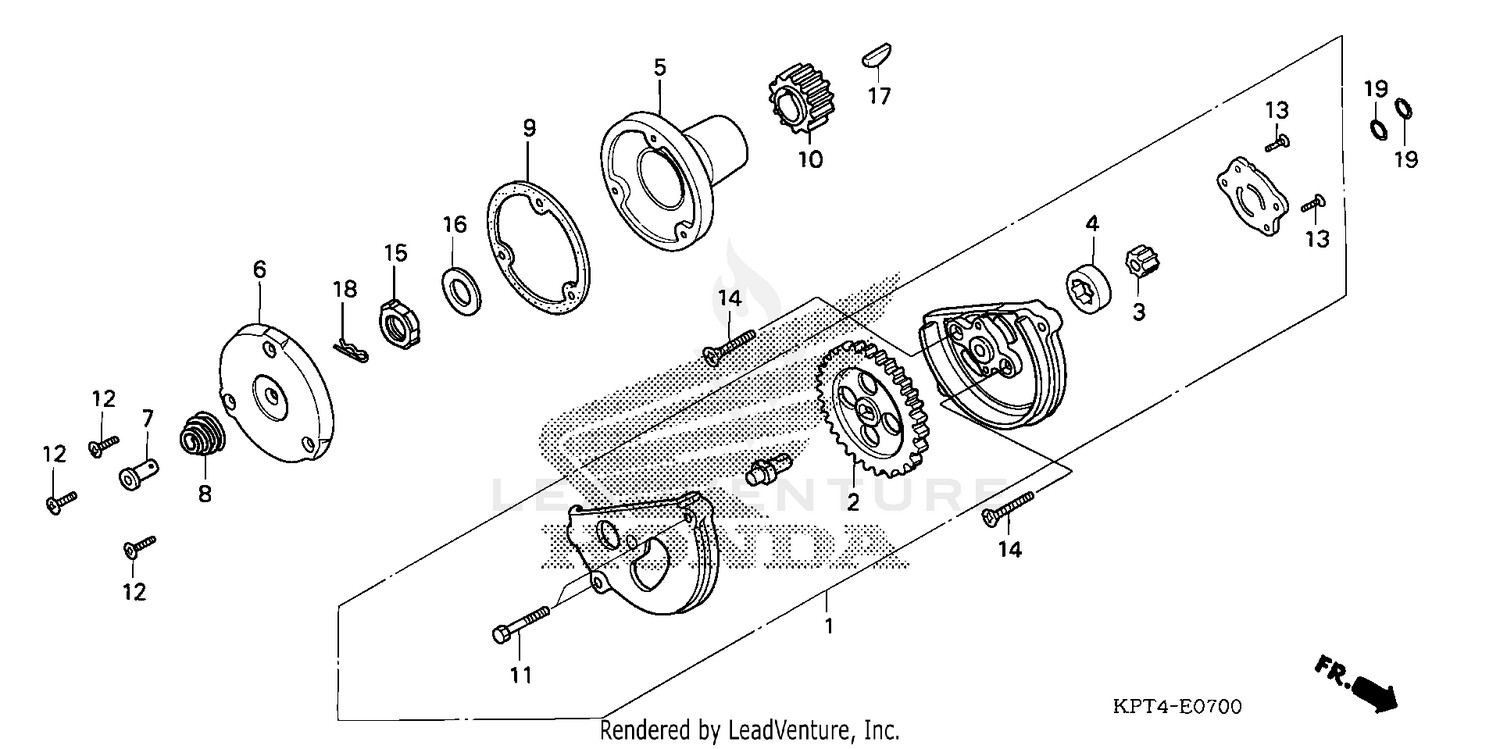

Oil Pump (1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY., OIL
15100-KPT-900
Superseded by 15100-KGA-900
|
$59.66 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, OIL PUMP DRIVE (31T)
15131-KPT-900
|
$33.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
ROTOR, OIL PUMP (INNER)
15331-KPS-900
|
$2.96 | ||
|
Available to order. Add to View Price |
|||
|
#4
ROTOR, OIL PUMP (OUTER)
15332-KPS-900
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROTOR, OIL FILTER
15430-KPS-900
|
$10.31 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, OIL FILTER ROTOR
15436-KPS-900
Superseded by 15436-KRM-840
|
$8.02 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, OIL FILTER ROTOR
15436-KRM-840
|
$8.02 | ||
|
Unavailable |
|||
|
#7
THROUGH, OIL
15441-KPS-900
Superseded by 15441-KCS-650
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, OIL THROUGH
15446-KPS-900
Superseded by 15446-107-000
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, OIL THROUGH
15446-107-000
|
$4.71 | ||
|
Unavailable |
|||
|
#9
GSKT, OIL FILTER CAP
15459-KT0-710
Superseded by 15459-K70-630
|
$4.34 | ||
|
Available to order. Add to View Price |
|||
|
#9
GSKT, OIL FILTER CAP
15459-KWK-900
Superseded by 15459-K70-630
|
$4.34 | ||
|
Unavailable |
|||
|
#10
GEAR A, PRIMARY DRIVE (18T)
23121-KPT-900
Superseded by 23121-KW1-900
|
$42.07 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEX. (5X20)
90010-KPS-900
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEX. (5X20)
92101-05020-0A
|
$1.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, OVAL (5X12)
90112-KPS-900
|
$1.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, FLAT (4X12)
90211-KPS-900
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, FLAT (4X12)
93600-04012-0A
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, FLAT (6X30)
90213-KPS-900
|
$1.91 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, LOCK (16MM)
90231-KPS-900
Superseded by 90231-KK3-830
|
$6.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER (16MM)
90434-KPS-900
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#17
KEY, WOODRUFF (25X18)
90471-KGA-900
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, LOCK (8MM)
90751-KPS-900
|
$0.44 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING (9.4X2.4)
91304-KPS-900
Superseded by 91304-KK3-830
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
