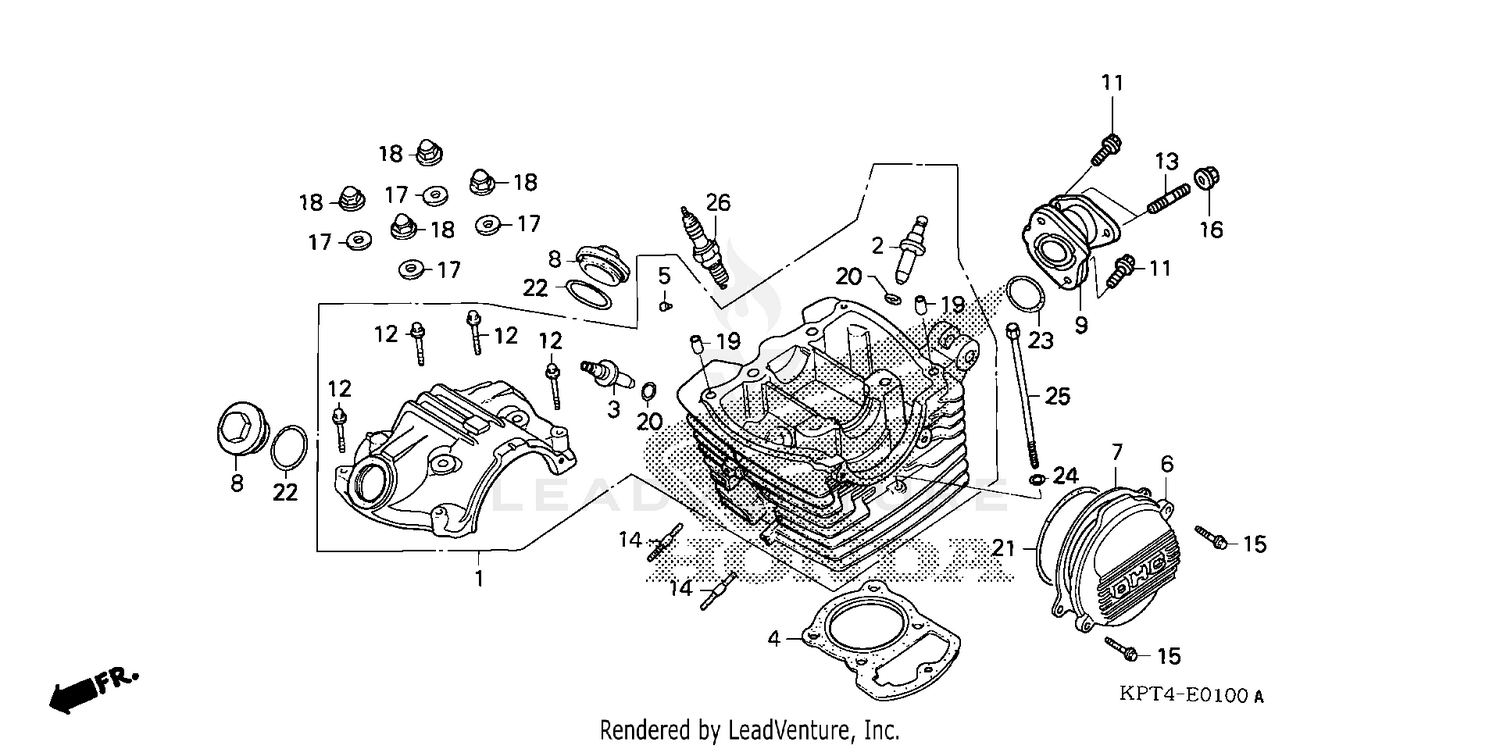

Cylinder Head Cover + Cylinder Head (1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY.
12000-KHA-941
|
$542.80 | ||
|
Available to order. Add to View Price |
|||
|
#1
CYLINDER HEAD ASSY.
12000-KPT-900
Superseded by 12000-KHA-941
|
$542.80 | ||
|
Unavailable |
|||
|
#2
GUIDE, VALVE
12204-KW1-305
Superseded by 12204-KW1-405
|
$13.16 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE
12204-KW1-405
|
$13.16 | ||
|
Unavailable |
|||
|
#3
GUIDE, VALVE
12204-KW1-405
|
$13.16 | ||
|
Unavailable |
|||
|
#3
GUIDE, VALVE
12206-KW1-315
Superseded by 12204-KW1-405
|
$13.16 | ||
|
Unavailable |
|||
|
#4
GASKET, CYLINDER HEAD
12251-KBB-901
|
$26.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER, OIL SEAL
12271-383-000
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, L. CYLINDER HEAD
12331-KPS-900
|
$8.71 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET
12339-KT0-710
Superseded by 12339-KT0-712
|
$8.84 | ||
|
Unavailable |
|||
|
#7
GASKET
12339-KT0-711
Superseded by 12339-KT0-712
|
$8.84 | ||
|
Unavailable |
|||
|
#8
CAP, TAPPET ADJUSTING HOLE
12361-KPS-900
|
$4.44 | ||
|
Available to order. Add to View Price |
|||
|
#9
INSULATOR, CARBURETOR
16210-KRG-000
|
$41.09 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X22)
90003-KPS-900
Superseded by 90040-GHR-690
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X22)
90040-GHR-690
|
$1.13 | ||
|
Unavailable |
|||
|
#12
BOLT, FLANGE (6X35) (NSHF)
90004-GHB-700
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X35) (NSHF)
90004-GHR-700
Superseded by 90004-GHB-700
|
$5.11 | ||
|
Unavailable |
|||
|
#13
BOLT, STUD (6X16)
90033-KPT-900
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, STUD (7X35)
90041-KW1-900
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X20)
90040-GHR-680
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X20)
90104-KPS-900
Superseded by 90040-GHR-680
|
$1.05 | ||
|
Unavailable |
|||
|
#16
NUT, FLANGE (6MM)
90208-GHR-630
Superseded by 94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
NUT, FLANGE (6MM)
90402-KPT-900
Superseded by 94050-06000
|
$0.68 | ||
|
Unavailable |
|||
|
#16
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
Unavailable |
|||
|
#17
WASHER, SEALING (8MM)
90442-KPS-900
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, CAP (8MM)
90443-KPS-900
Superseded by 90443-107-000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, CAP (8MM)
90443-107-000
|
$3.29 | ||
|
Unavailable |
|||
|
#19
PIN, DOWEL (8X14)
90702-KRM-840
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, DOWEL (8X14)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
O-RING (10X1.6)
91301-KPF-960
|
$1.02 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING (10X1.6)
91301-KW1-900
Superseded by 91301-KPF-960
|
$1.02 | ||
|
Unavailable |
|||
|
#21
O-RING (75X2.5)
91301-107-000
|
$6.13 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
O-RING (35X3) (ARAI)
91303-KK3-830
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING (33.5X3.0)
91304-HB3-003
|
$9.69 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#24
WASHER, PLAIN (6MM)
94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#25
BOLT, SOCKET (6X110) (SOURCE: VINTAGE PARTS INC.)
96700-06110-00
|
$3.78 | ||
|
Unavailable |
|||
|
#26
SPARK PLUG (DPR7EA-9) (NGK)
98069-57916
|
$2.91 | ||
|
Unavailable |
|||
|
#26
SPARK PLUG (X22EPR-U9) (DENSO)
98069-57926
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPARK PLUG (DPR8EA-9) (NGK)
98069-58916
|
$2.91 | ||
|
Unavailable |
|||
|
#26
SPARK PLUG (X24EPR-U9) (DENSO)
98069-58926
|
$2.80 | ||
|
Unavailable |
|||
