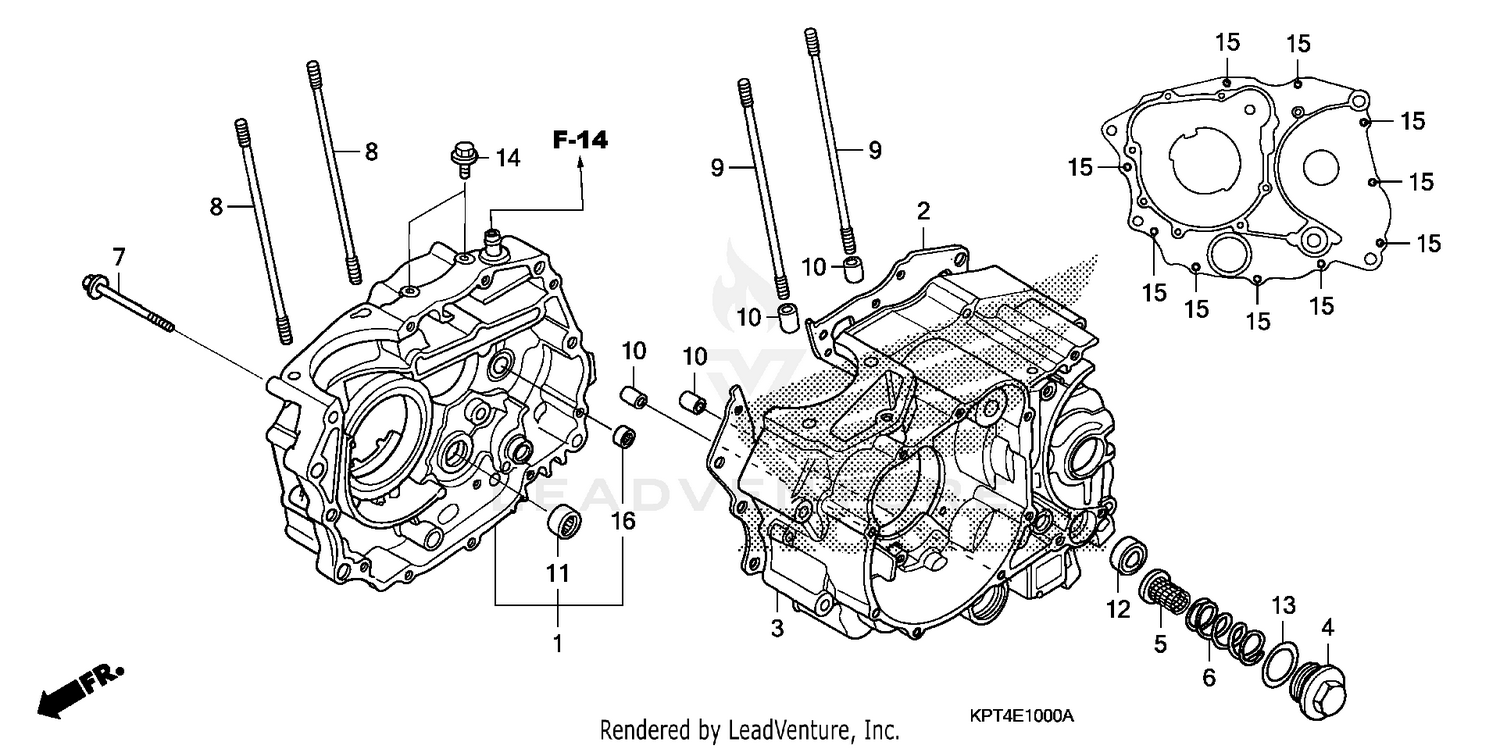

Crankcase (1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE, R.
11100-KPS-900
|
$125.38 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, CRANKCASE
11191-KHA-940
|
$25.11 | ||
|
Available to order. Add to View Price |
|||
|
#3
CRANKCASE, L.
11200-KPT-900
|
$89.13 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, TAPPET ADJUSTING HOLE
12361-KPS-900
|
$4.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREEN, OIL FILTER
15421-KPS-900
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, OIL FILTER SCREEN
15426-KPS-900
|
$0.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE (6X55)
90004-KPS-900
Superseded by 90040-GHR-790
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE (6X55)
90040-GHR-790
|
$4.71 | ||
|
Unavailable |
|||
|
#8
BOLT A, CYLINDER STUD
90031-KFB-000
|
$7.71 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT A, CYLINDER STUD
90031-107-010
|
$11.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, DOWEL (10X14)
90703-KPS-900
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING, NEEDLE (21MM)
91008-KCN-003
|
$20.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
OIL SEAL (14X28X7) (ARAI)
91202-965-003
|
$8.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
O-RING (35X3) (ARAI)
91303-KK3-830
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X12)
95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X50)
96001-06050-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING, NEEDLE (15MM)
91106-KB4-003
|
$16.65 | ||
|
Available to order. Add to View Price |
|||
