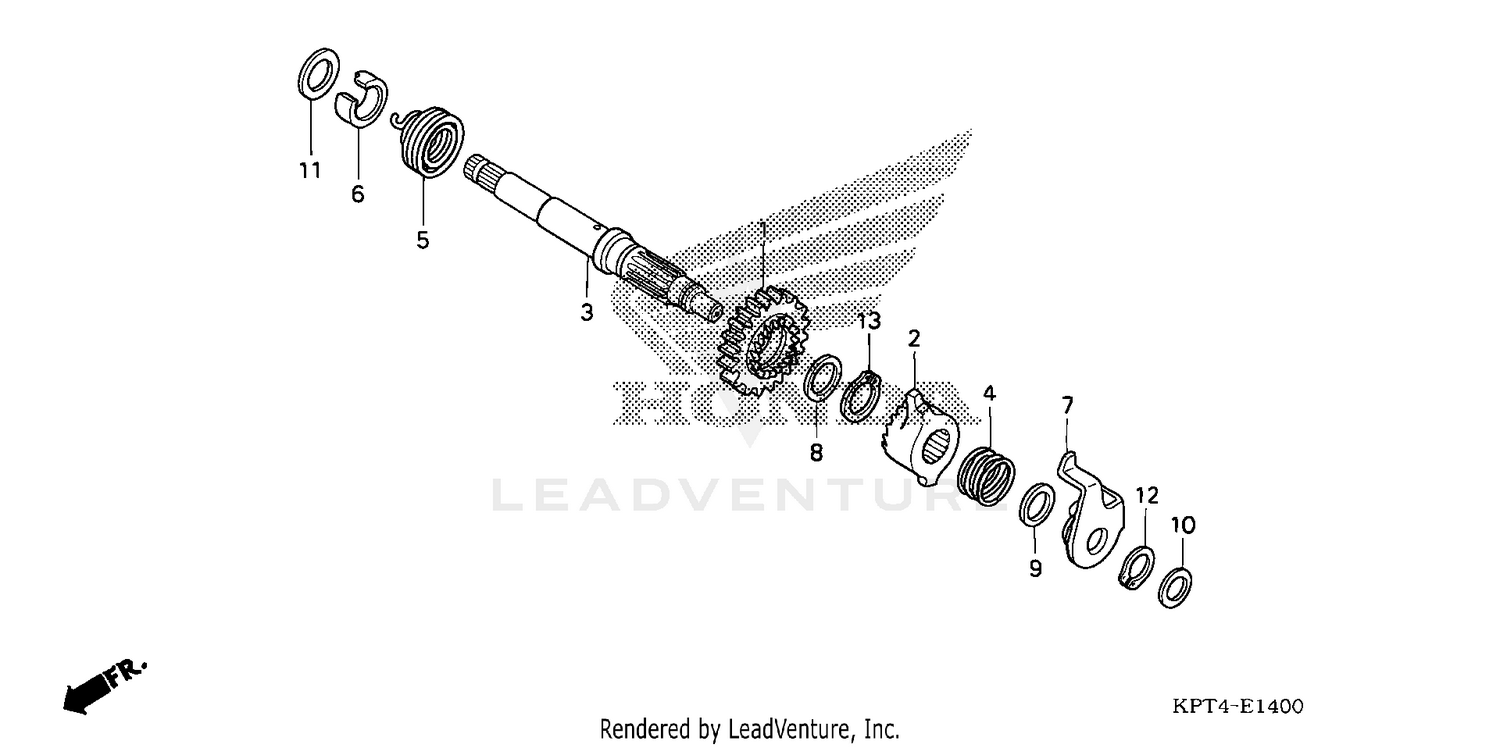

Kick Starter Spindle Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PINION, KICK STARTER (29T)
28211-KPT-900
Superseded by 28211-397-010
|
$74.45 | ||
|
Unavailable |
|||
|
#2
RATCHET, KICK STARTER
28221-KPT-900
Superseded by 28221-397-020
|
$48.65 | ||
|
Unavailable |
|||
|
#3
SPINDLE
28251-KPT-900
Superseded by 28251-KGA-900
|
$36.07 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, KICK STARTER RATCHET
28253-KA2-000
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, KICK STARTER RATCHET
28253-KPT-900
Superseded by 28253-KA2-000
|
$6.31 | ||
|
Unavailable |
|||
|
#5
SPRING, KICK STARTER
28261-KPT-900
Superseded by 28261-KGA-900
|
$3.49 | ||
|
Unavailable |
|||
|
#6
COLLAR, KICK SPINDLE
28262-KGA-900
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, RATCHET GUIDE
28270-397-020
|
$31.05 | ||
|
Unavailable |
|||
|
#8
WASHER A, THRUST (20MM)
90453-KPT-900
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, THRUST (16MM)
90453-235-000
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, THRUST (16MM)
90454-KPT-900
Superseded by 90453-235-000
|
$2.20 | ||
|
Unavailable |
|||
|
#10
WASHER, THRUST (12MM)
90459-KPT-900
Superseded by 90459-107-000
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, THRUST (12MM)
90459-107-000
|
$1.64 | ||
|
Unavailable |
|||
|
#11
WASHER, THRUST (19MM)
90462-KGA-900
|
$0.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, THRUST (19MM)
90462-KPT-900
Superseded by 90462-KGA-900
|
$0.49 | ||
|
Unavailable |
|||
|
#12
CIRCLIP (OUTER) (16MM)
90602-KPT-900
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
CIRCLIP, OUTER (20MM)
90603-KPT-900
Superseded by 94510-20000
|
$1.38 | ||
|
Unavailable |
|||
|
#13
CIRCLIP (OUTER) (20MM)
94510-20000
|
$1.38 | ||
|
Unavailable |
|||
