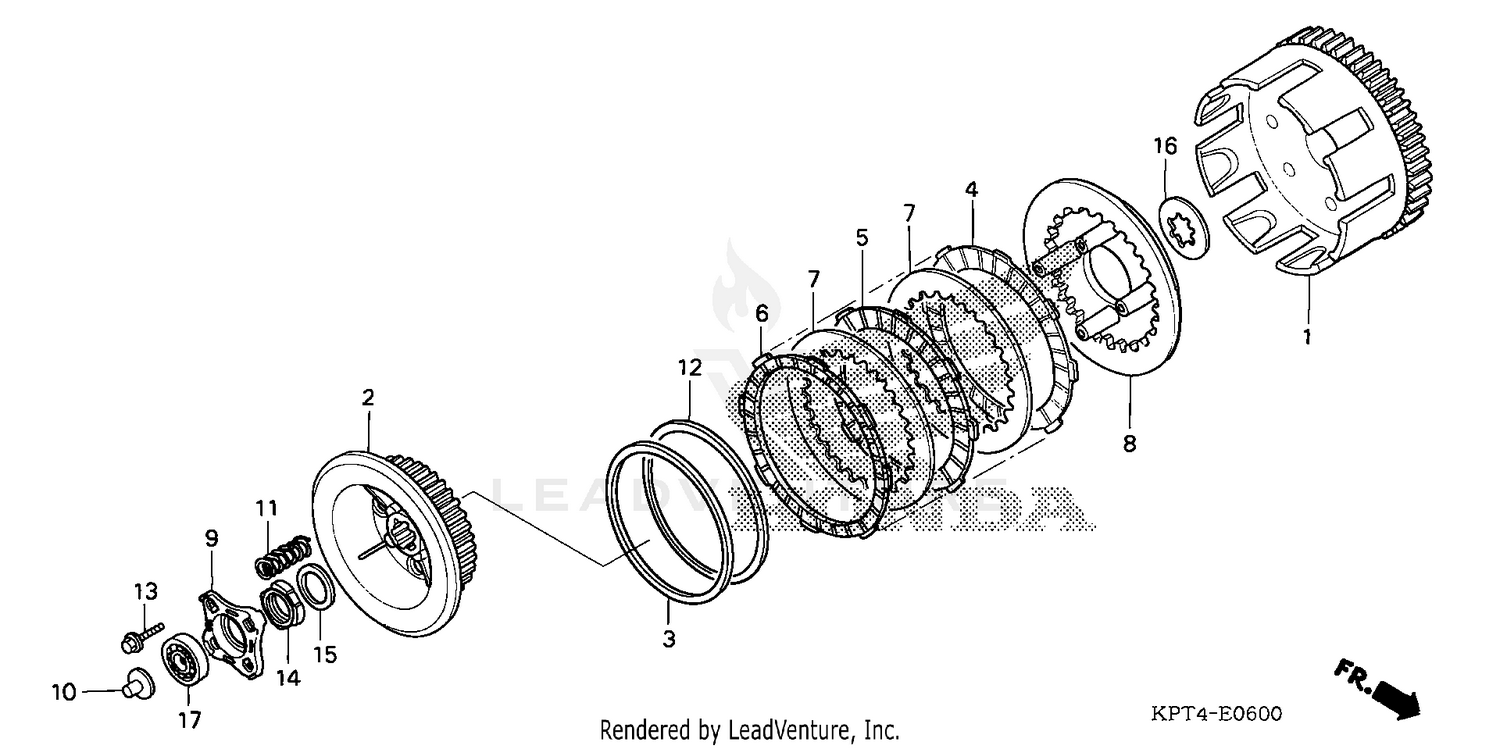

Clutch (1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#NI
CLUTCH KIT (INCLUDES FRICTION & METAL PLATES, SPRINGS & O-RING)
06001-KPT-000
|
$83.22 | ||
|
Unavailable |
|||
|
#1
CLUTCH OUTER
22100-KPT-900
|
$111.70 | ||
|
Unavailable |
|||
|
#2
CENTER, CLUTCH
22121-KPS-900
|
$28.11 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAT, JUDDER SPRING
22125-KT7-750
|
$13.73 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAT, JUDDER SPRING
22125-KW7-900
Superseded by 22125-KT7-750
|
$13.73 | ||
|
Unavailable |
|||
|
#4
DISK, CLUTCH FRICTION
22201-KBW-900
|
$18.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
DISK, CLUTCH FRICTION (4X8X45)
22201-KPM-850
|
$15.64 | ||
|
Available to order. Add to View Price |
|||
|
#6
DISK, CLUTCH FRICTION
22201-KY1-000
Superseded by 22201-KAZ-000
|
$32.11 | ||
|
Available to order. Add to View Price |
|||
|
#6
DISK, CLUTCH FRICTION
22201-MJ8-000
Superseded by 22201-KAZ-000
|
$32.11 | ||
|
Unavailable |
|||
|
#7
PLATE, CLUTCH
22321-KPS-900
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, CLUTCH PRESSURE
22350-KPS-900
|
$20.73 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, CLUTCH LIFTER
22361-KPS-900
Superseded by 22361-437-000
|
$17.96 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, CLUTCH LIFTER
22361-437-000
|
$17.96 | ||
|
Unavailable |
|||
|
#10
ROD, CLUTCH LIFTER
22366-KHA-940
Superseded by 22366-KRM-840
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, CLUTCH
22401-KCN-000
|
$4.96 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, JUDDER
22402-KPM-850
|
$23.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, SPECIAL FLANGE (6X22)
90050-KPS-900
|
$0.84 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, LOCK (16MM)
90231-KB5-720
|
$5.89 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER (16MM)
90434-KPS-900
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER B, SPLINE (20MM)
90461-KPS-900
|
$11.02 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING, RADIAL BALL (16003)
91008-KPS-900
|
$10.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
