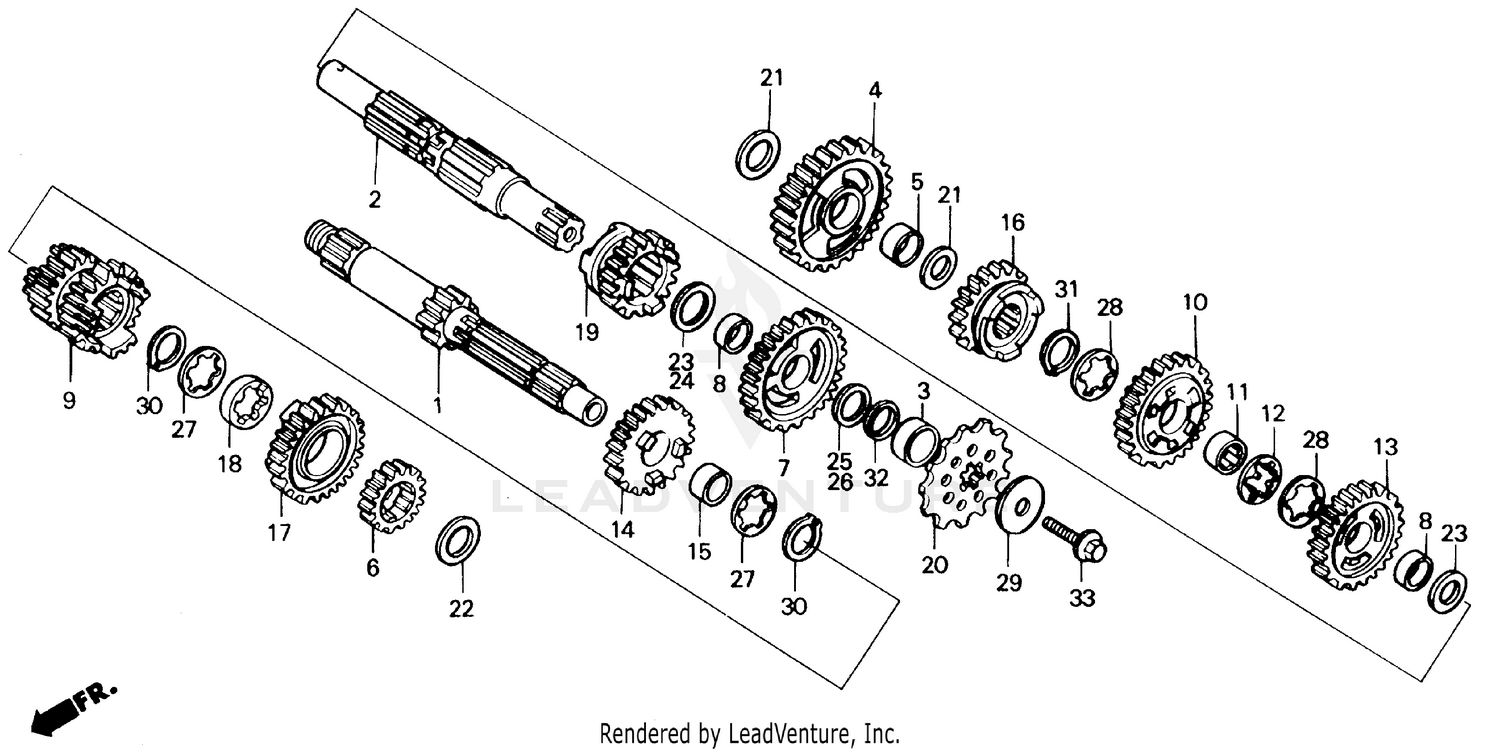

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MAINSHAFT (NOT AVAILABLE)
23210-KA3-740
|
$79.64 | ||
|
Unavailable |
|||
|
#2
COUNTERSHAFT (NOT AVAILABLE)
23221-KA3-760
|
$104.28 | ||
|
Unavailable |
|||
|
#3
COLLAR, COUNTERSHAFT
23225-KA3-760
|
$17.89 | ||
|
Unavailable |
|||
|
#4
GEAR, COUNTERSHAFT LOW (28T)
23410-KA3-760
|
$105.84 | ||
|
Unavailable |
|||
|
#6
GEAR, MAINSHAFT SECOND (16T) (NOT AVAILABLE)
23421-KA3-740
|
$34.79 | ||
|
Unavailable |
|||
|
#7
GEAR, COUNTERSHAFT SECOND (30T)
23431-KA3-760
|
$88.09 | ||
|
Unavailable |
|||
|
#9
GEAR, MAINSHAFT THIRD (18T/20T)
23441-KA3-760
|
$87.39 | ||
|
Unavailable |
|||
|
#10
GEAR, COUNTERSHAFT THIRD (28T) (NOT AVAILABLE)
23451-KA3-760
|
$69.46 | ||
|
Unavailable |
|||
|
#12
WASHER, LOCK
23456-KA3-000
|
$6.71 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR, COUNTERSHAFT FOURTH (26T)
23461-KA3-760
|
$109.47 | ||
|
Unavailable |
|||
|
#14
GEAR, MAINSHAFT FIFTH (22T)
23471-KA3-760
|
$66.17 | ||
|
Unavailable |
|||
|
#16
GEAR, COUNTERSHAFT FIFTH (25T)
23481-KA3-760
|
$88.09 | ||
|
Unavailable |
|||
|
#17
GEAR, MAINSHAFT SIXTH (23T)
23491-KA3-760
|
$66.17 | ||
|
Unavailable |
|||
|
#18
COLLAR, MAINSHAFT SIXTH GEAR
23492-KA3-710
|
$35.29 | ||
|
Available to order. Add to View Price |
|||
|
#19
GEAR, COUNTERSHAFT SIXTH (23T)
23501-KA3-760
|
$83.81 | ||
|
Unavailable |
|||
|
#20
SPROCKET, DRIVE (13T) (NOT AVAILABLE)
23803-KA3-710
|
$28.01 | ||
|
Unavailable |
|||
|
#21
WASHER, THRUST (17.2MM)
90446-357-000
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, THRUST (22MM)
90452-357-000
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, THRUST (20X28X1.5)
90453-KA3-710
|
$4.40 | ||
|
Unavailable |
|||
|
#27
WASHER, SPLINE (20MM)
90461-444-000
|
$6.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
WASHER, SPLINE (22MM)
90464-444-000
|
$6.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
WASHER, SPRING (8X40)
90501-KA3-741
Superseded by 90501-HB9-003
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#30
SET-RING (20MM)
90601-360-000
|
$11.15 | ||
|
Available to order. Add to View Price |
|||
|
#31
SET-RING, COUNTER SECOND
90602-360-000
|
$11.04 | ||
|
Available to order. Add to View Price |
|||
|
#32
O-RING (20MM)
91351-KA3-711
|
$5.09 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (8X20)
96300-08020-07
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
