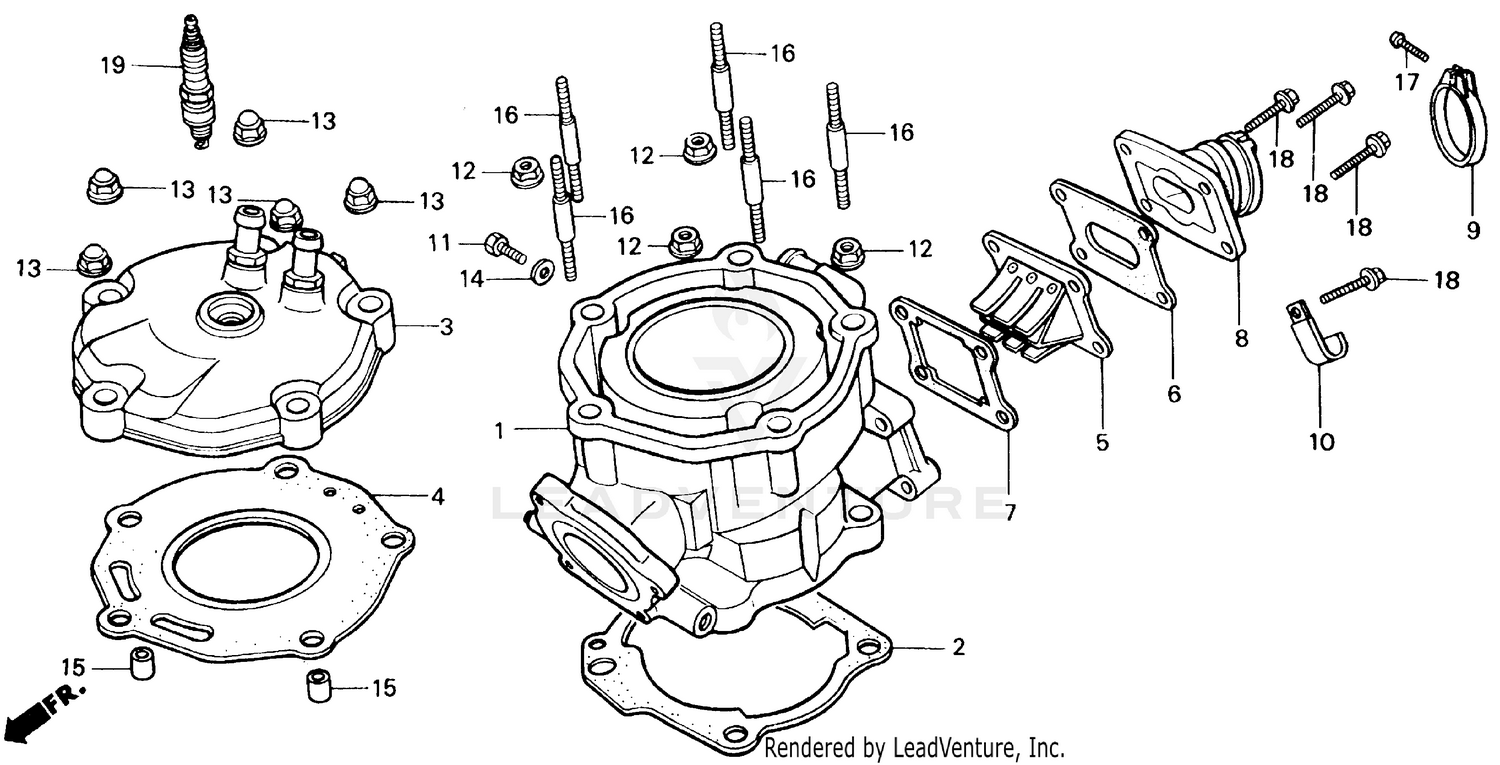

Cylinder 84-85 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER (NOT AVAILABLE)
12100-KA3-760
|
$345.37 | ||
|
Unavailable |
|||
|
#2
GASKET, CYLINDER
12191-KA3-307
|
$9.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
GASKET, CYLINDER
12191-KA3-740
Superseded by 12191-KA3-307
|
$9.67 | ||
|
Unavailable |
|||
|
#2
GASKET, CYLINDER
12191-KA3-760
Superseded by 12191-KA3-307
|
$9.67 | ||
|
Unavailable |
|||
|
#3
CYLINDER HEAD
12200-KA3-760
|
$141.89 | ||
|
Unavailable |
|||
|
#4
GASKET, CYLINDER HEAD
12251-KA3-309
|
$26.21 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, CYLINDER HEAD
12251-KA3-760
Superseded by 12251-KA3-309
|
$26.21 | ||
|
Unavailable |
|||
|
#5
VALVE ASSY., REED
14100-KA3-761
|
$102.67 | ||
|
Unavailable |
|||
|
#6
GASKET, REED VALVE
14131-KA3-306
|
$2.74 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
GASKET, REED VALVE
14131-KA3-710
Superseded by 14131-KA3-306
|
$2.74 | ||
|
Unavailable |
|||
|
#7
GASKET, REED VALVE
14132-KA3-306
|
$2.74 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET, REED VALVE
14132-KA3-710
Superseded by 14132-KA3-306
|
$2.74 | ||
|
Unavailable |
|||
|
#8
INSULATOR, CARBURETOR (NOT AVAILABLE)
16221-KA3-760
|
$29.79 | ||
|
Unavailable |
|||
|
#9
BAND, INSULATOR
16223-KA3-740
|
$16.30 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP, WIRE HARNESS
91406-657-671
|
$11.08 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, OIL CHECK
90037-360-000
|
$4.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
NUT, FLANGE (8MM)
90236-300-000
Superseded by 94050-08000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
NUT, FLANGE (8MM)
94050-08000
|
$0.98 | ||
|
Unavailable |
|||
|
#13
NUT, CAP (8MM)
90443-107-000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, FR. FORK DRAIN VALVE
90543-273-000
|
$2.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
PIN, DOWEL (10X12)
90701-360-000
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT 2, STUD (8X32)
92700-08050-0E
Superseded by 92900-08032-0E
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT 2, STUD (8X32)
92900-08032-0E
|
$2.38 | ||
|
Unavailable |
|||
|
#16
BOLT, STUD (8X55)
92900-08055-3E
|
$3.72 | ||
|
Unavailable |
|||
|
#17
SCREW, PAN (5X20)
93500-05020-0A
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X22)
96000-06022-00
Superseded by 96001-06022-00
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X22)
96001-06022-00
|
$1.42 | ||
|
Unavailable |
|||
|
#19
SPARK PLUG (BR9EG) (NGK)
98079-59649
Superseded by 98079-59679
|
$7.07 | ||
|
Unavailable |
|||
|
#19
SPARK PLUG (W27ESR-V) (DENSO)
98079-59659
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPARK PLUG (BR9EG) (NGK)
98079-59669
Superseded by 98079-59679
|
$7.07 | ||
|
Unavailable |
|||
|
#19
SPARK PLUG (BR9EG) (NGK)
98079-59679
|
$7.07 | ||
|
Unavailable |
|||
