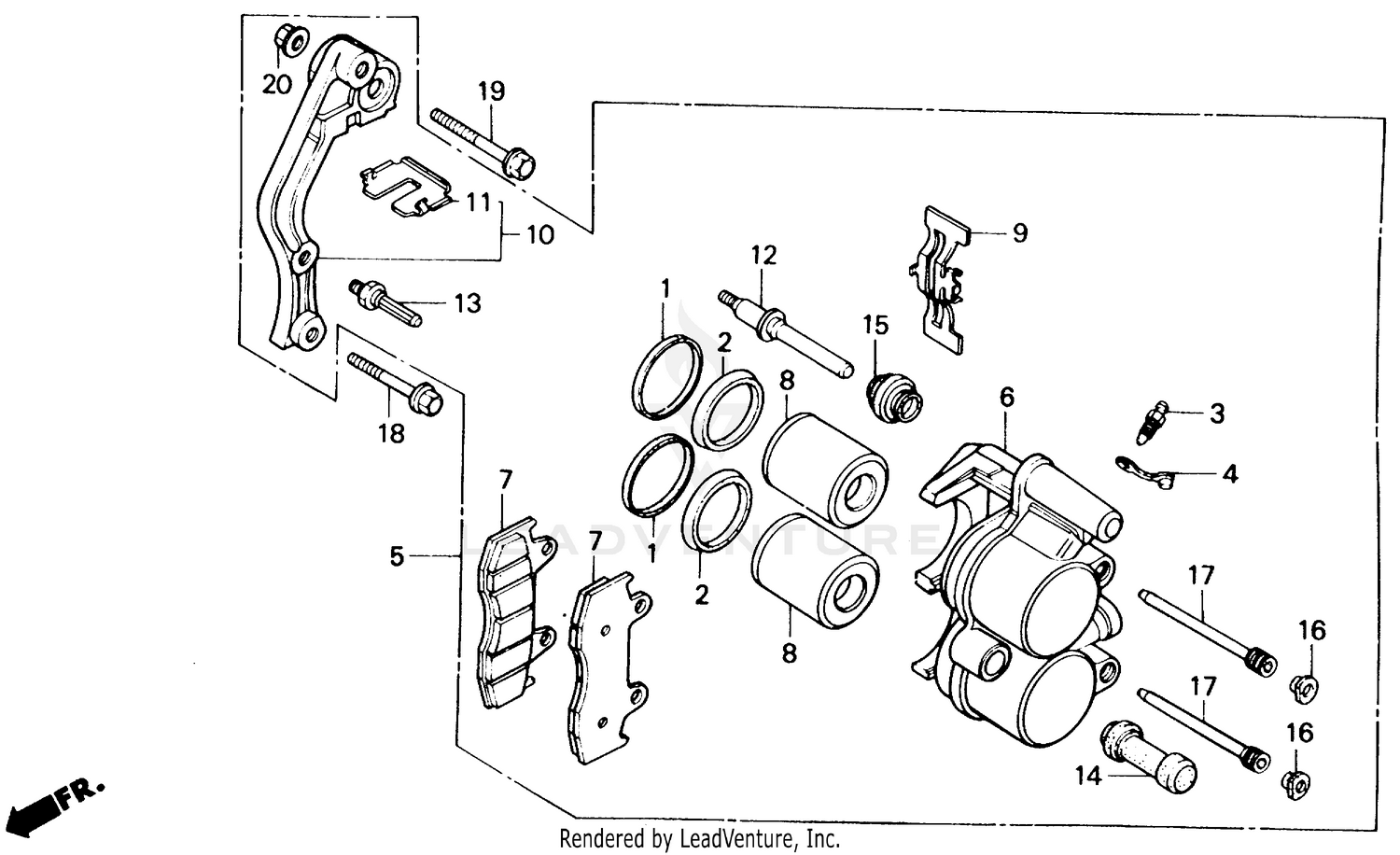

Fr. Brake Caliper 84-86 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DUST SEAL
43109-MA3-006
|
$7.22 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAL, PISTON
43209-MA3-006
|
$8.84 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, BLEEDER
43352-568-003
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, BLEEDER
43353-461-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
CALIPER ASSY. (NOT AVAILABLE)
45100-KA3-732
|
$297.51 | ||
|
Unavailable |
|||
|
#6
CALIPER (NOT AVAILABLE)
45101-KA3-732
|
$130.17 | ||
|
Unavailable |
|||
|
#7
PAD
45105-KA3-731
|
$24.91 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON
45107-KA3-731
Superseded by 45107-ML0-016
|
$52.64 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON
45107-KN5-006
Superseded by 45107-ML0-016
|
$52.64 | ||
|
Unavailable |
|||
|
#8
PISTON
45107-ML0-016
|
$52.64 | ||
|
Unavailable |
|||
|
#9
SPRING, PAD
45108-GE2-006
|
$7.12 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, L. FR.
45110-MG3-006
|
$135.72 | ||
|
Unavailable |
|||
|
#11
RETAINER
45112-MG3-006
|
$9.13 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT A, PIN
45131-MG3-006
|
$14.89 | ||
|
Unavailable |
|||
|
#13
PIN, BOLT
45131-166-016
|
$9.58 | ||
|
Available to order. Add to View Price |
|||
|
#14
BUSH, PIN
45132-166-016
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOOT B
45133-MA3-006
|
$6.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
PLUG, PIN
45203-KA3-731
|
$5.37 | ||
|
Unavailable |
|||
|
#17
PIN, HANGER
45215-KA3-731
Superseded by 45215-KA3-732
|
$13.95 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, HANGER
45215-KA3-732
|
$13.95 | ||
|
Unavailable |
|||
|
#18
BOLT, FLANGE (8X40)
90131-MG3-000
Superseded by 96400-08040-00
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (8X50)
90132-MG3-000
Superseded by 95801-08050-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (8X50)
95801-08050-00
|
$3.75 | ||
|
Unavailable |
|||
|
#20
NUT, FLANGE (8MM)
94050-08080
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
