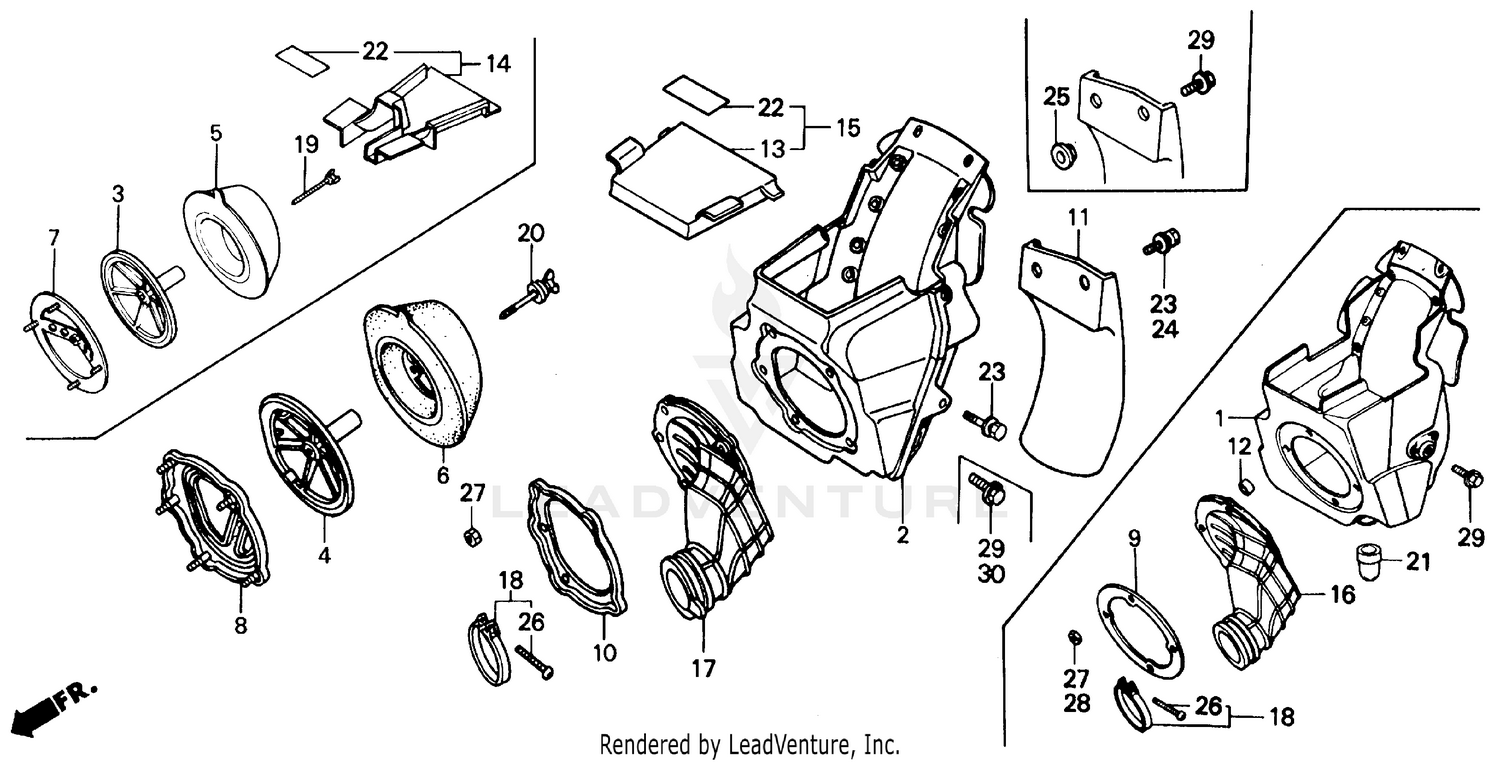

Air Cleaner 85-89 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOUSING, AIR CLEANER (NOT AVAILABLE)
17210-KA3-830
|
$114.78 | ||
|
Unavailable |
|||
|
#3
BASE, ELEMENT (NOT AVAILABLE)
17212-KA3-830
Superseded by 17212-KA3-831
|
$13.11 | ||
|
Unavailable |
|||
|
#5
ELEMENT, AIR CLEANER
17213-KA3-830
|
$30.58 | ||
|
Unavailable |
|||
|
#7
STAY, AIR CLEANER ELEMENT (NOT AVAILABLE)
17215-KA3-830
|
$48.11 | ||
|
Unavailable |
|||
|
#9
PLATE, FR. AIR CLEANER HOUSING
17217-KA4-700
|
$16.76 | ||
|
Unavailable |
|||
|
#11
SPLASH GUARD A, AIR CLEANER HOUSING (NOT AVAILABLE)
17218-KA3-730
|
$45.61 | ||
|
Unavailable |
|||
|
#12
COLLAR, CONNECTING TUBE SETTING
17221-KA4-300
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER SUB-ASSY., AIR CLEANER HOUSING (NOT AVAILABLE)
17224-KA3-840
|
$16.15 | ||
|
Unavailable |
|||
|
#16
TUBE, AIR CLEANER CONNECTING
17253-KA3-830
|
$37.66 | ||
|
Unavailable |
|||
|
#18
BAND, AIR CLEANER CONNECTING TUBE (70)
17256-MK4-000
Superseded by 95018-70250
|
$18.07 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAND, AIR CLEANER CONNECTING TUBE (70)
17257-KA3-830
Superseded by 95018-70250
|
$18.07 | ||
|
Unavailable |
|||
|
#18
BAND, AIR CLEANER CONNECTING TUBE (70)
90652-GHB-780
Superseded by 95018-70250
|
$18.07 | ||
|
Unavailable |
|||
|
#18
BAND, AIR CLEANER CONNECTING TUBE (70)
95018-70250
|
$18.07 | ||
|
Unavailable |
|||
|
#19
BOLT, ELEMENT SETTING
17291-KA3-830
Superseded by 17291-MAC-740
|
$13.71 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, ELEMENT SETTING
17291-KS6-000
Superseded by 17291-MAC-740
|
$13.71 | ||
|
Unavailable |
|||
|
#19
BOLT, ELEMENT SETTING
17291-KS6-700
Superseded by 17291-MAC-740
|
$13.71 | ||
|
Unavailable |
|||
|
#19
BOLT, ELEMENT SETTING
17291-MAC-740
|
$13.71 | ||
|
Unavailable |
|||
|
#21
TUBE, DRAIN (NOT AVAILABLE)
17358-KA3-830
|
$5.04 | ||
|
Unavailable |
|||
|
#22
LABEL, AIR CLEANER COVER CAUTION (NOT AVAILABLE)
87517-KA4-770
|
$2.75 | ||
|
Unavailable |
|||
|
#25
WASHER, RR. COVER
90506-425-000
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW, PAN (4X20)
93500-04020-0A
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, HEX. (6MM)
94002-06000-0S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X10)
96000-06010-00
Superseded by 96001-06010-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X10)
96001-06010-00
|
$1.70 | ||
|
Unavailable |
|||
