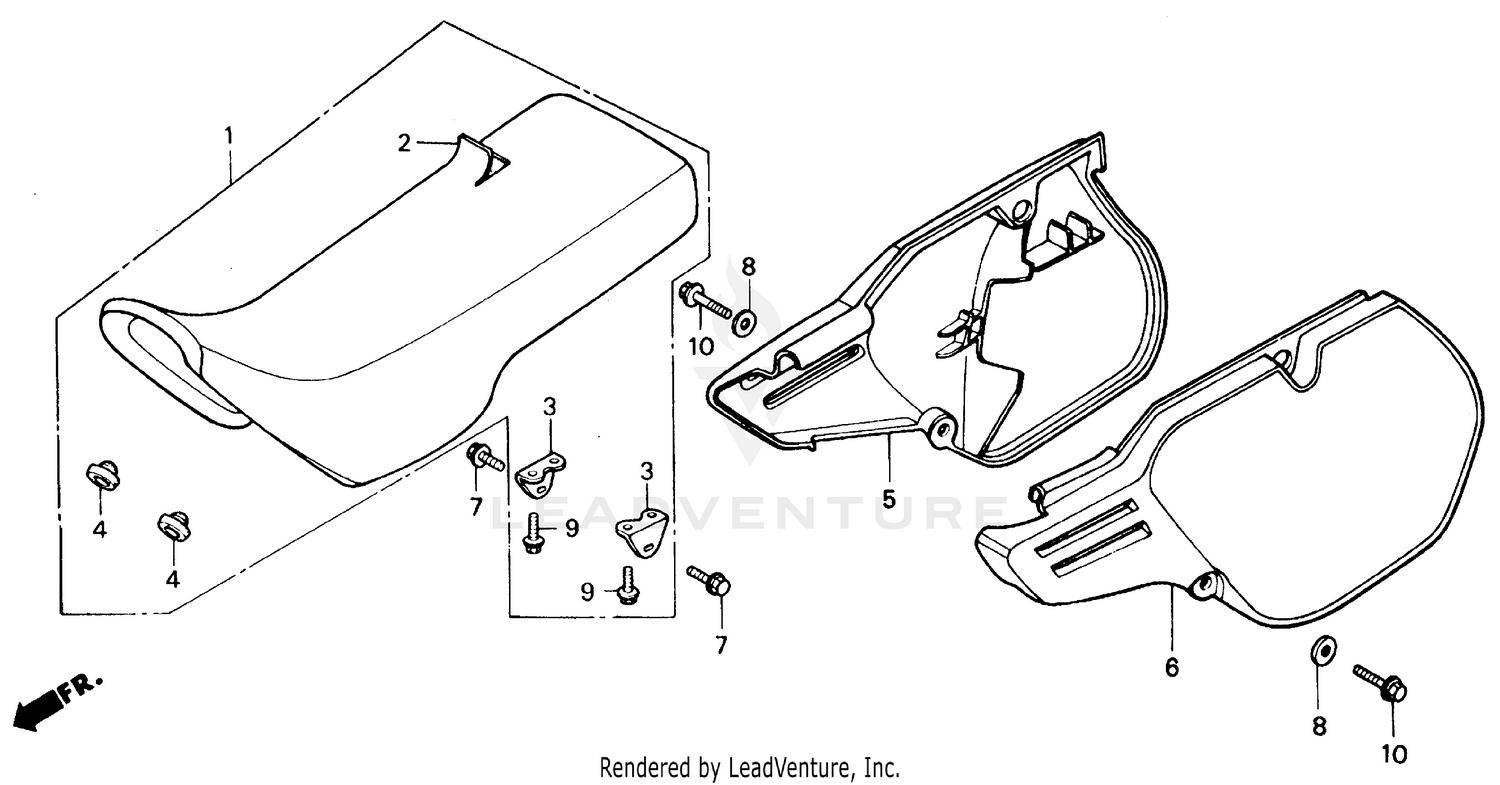

Seat 85-86 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT (82MM) (NOT AVAILABLE)
77100-KA3-830
Superseded by 77100-KS6-000
|
$226.27 | ||
|
Unavailable |
|||
|
#1
SEAT (98MM) (NOT AVAILABLE)
77100-KA3-840
Superseded by 77100-KS6-670
|
$199.14 | ||
|
Unavailable |
|||
|
#1
SEAT (NOT AVAILABLE)
77100-KA3-850
|
$206.71 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, SEAT ( 82MM) (NOT AVAILABLE)
77101-KA3-830
|
$48.46 | ||
|
Unavailable |
|||
|
#2
COVER, SEAT ( 98MM) (NOT AVAILABLE)
77101-KA3-840
|
$49.92 | ||
|
Unavailable |
|||
|
#2
COVER, SEAT ( 122MM) (NOT AVAILABLE)
77101-KA3-850
|
$48.46 | ||
|
Unavailable |
|||
|
#3
STAY, RR. SEAT (NOT AVAILABLE)
77105-KA3-830
|
$15.70 | ||
|
Unavailable |
|||
|
#4
RUBBER, SEAT MOUNTING
77110-KA3-730
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER SUB-ASSY., SIDE (TYPE3)
83520-KA3-305ZC
|
$83.03 | ||
|
Unavailable |
|||
|
#5
COVER SUB-ASSY., SIDE (TYPE3)
83520-KA3-830ZC
Superseded by 83520-KA3-305ZC
|
$83.03 | ||
|
Unavailable |
|||
|
#6
COVER SUB-ASSY., L. SIDE *R119* (TYPE3) (FLASH RED) (NOT AVAILABLE)
83620-KA3-830ZC
Superseded by 83620-KS6-000ZC
|
$56.91 | ||
|
Unavailable |
|||
|
#7
BOLT, FLANGE (8X20)
90133-KA3-730
Superseded by 96300-08020-00
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE (8X20)
96300-08020-00
|
$1.80 | ||
|
Unavailable |
|||
|
#7
BOLT, FLANGE (8X20)
96500-08012-00
Superseded by 96300-08020-00
|
$1.80 | ||
|
Unavailable |
|||
|
#7
BOLT, FLANGE (8X20)
96500-08020-00
Superseded by 96300-08020-00
|
$1.80 | ||
|
Unavailable |
|||
|
#8
WASHER, SIDE COVER
90506-KA3-710
|
$1.76 | ||
|
Unavailable |
|||
|
#9
BOLT, FLANGE (6X16)
95700-06016-08
Superseded by 95701-06016-08
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X16)
95701-06016-08
|
$1.52 | ||
|
Unavailable |
|||
|
#10
BOLT, FLANGE (6X14)
96000-06014-00
Superseded by 96001-06014-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X14)
96001-06014-00
|
$1.88 | ||
|
Unavailable |
|||
