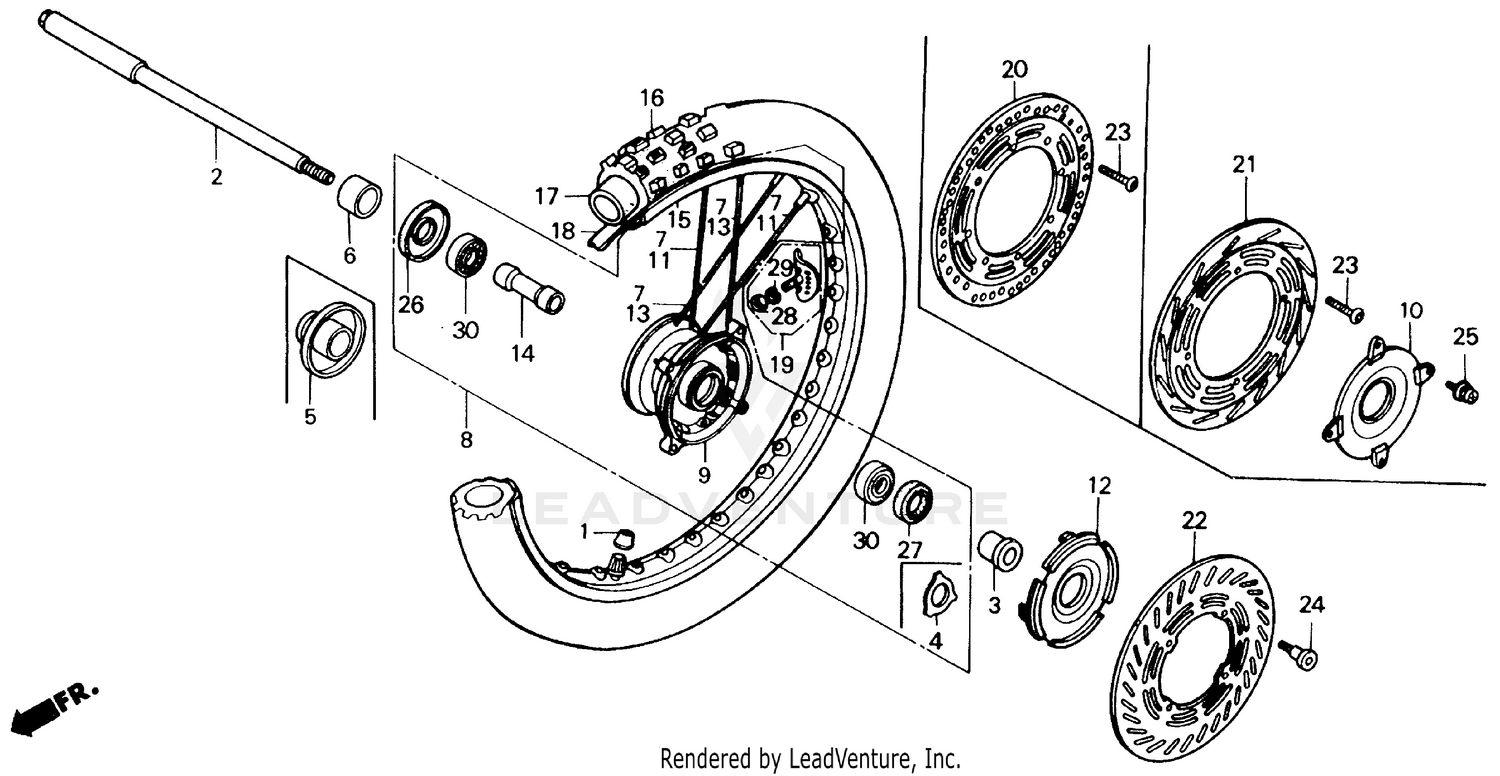

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAP, VALVE
42714-KA3-710
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
AXLE, FR. WHEEL (NOT AVAILABLE)
44301-KA3-830
|
$34.20 | ||
|
Unavailable |
|||
|
#3
COLLAR, FR. WHEEL (NOT AVAILABLE)
44311-KA3-830
|
$8.55 | ||
|
Unavailable |
|||
|
#4
WASHER, FR. WHEEL SIDE (NOT AVAILABLE)
44313-KA3-830
|
$2.77 | ||
|
Unavailable |
|||
|
#5
COLLAR, R. FR. WHEEL
44312-KA3-830
Superseded by 44312-KS6-830
|
$10.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, R. FR. WHEEL
44312-KS6-010
Superseded by 44312-KS6-830
|
$10.40 | ||
|
Unavailable |
|||
|
#5
COLLAR, R. FR. WHEEL
44312-KS6-830
|
$10.40 | ||
|
Unavailable |
|||
|
#8
RIM ASSY., FR. WHEEL (NOT AVAILABLE)
446A5-KA3-831
|
$503.40 | ||
|
Unavailable |
|||
|
#9
HUB, FR. WHEEL *NH105* (MAT BLACK)
44601-KA3-830ZA
|
$223.25 | ||
|
Unavailable |
|||
|
#10
COVER, FR. HUB
44610-KA3-730
|
$9.20 | ||
|
Unavailable |
|||
|
#11
SPOKE SET, FR. (230MM)
44610-KA3-831
|
$4.47 | ||
|
Unavailable |
|||
|
#13
SPOKE B SET, FR.
44611-KA3-830
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR, FR. WHEEL DISTANCE
44620-KA3-830
|
$8.39 | ||
|
Available to order. Add to View Price |
|||
|
#15
RIM, FR. WHEEL
44701-MG3-003
Superseded by 44701-KS6-831
|
$273.66 | ||
|
Unavailable |
|||
|
#15
RIM, FR. WHEEL
44701-KS6-831
|
$273.66 | ||
|
Unavailable |
|||
|
#16
TIRE, FR. (80/100-21) (BS)
44711-KA3-841
Superseded by 44711-KCE-671
|
$64.00 | ||
|
Unavailable |
|||
|
#16
TIRE, FR. (80/100-21) (BS)
44711-KCE-671
|
$64.00 | ||
|
Unavailable |
|||
|
#16
TIRE, FR. (80/100-21) (BS)
44711-KS7-771
Superseded by 44711-KCE-671
|
$64.00 | ||
|
Unavailable |
|||
|
#17
TUBE, TIRE (2.75/3.00-21) (INOUE)
44712-340-003
Superseded by 44712-446-631
|
$12.96 | ||
|
Available to order. Add to View Price |
|||
|
#17
TUBE, TIRE (2.75/3.00-21) (INOUE)
44712-446-631
|
$12.96 | ||
|
Unavailable |
|||
|
#18
FLAP, TIRE (BS)
44713-KA3-841
Superseded by 44713-KS6-003
|
$5.31 | ||
|
Unavailable |
|||
|
#18
FLAP, TIRE (BS)
44713-KS6-003
|
$5.31 | ||
|
Unavailable |
|||
|
#19
STOPPER, BEAD (1.60)
44715-MA0-770
|
$44.58 | ||
|
Available to order. Add to View Price |
|||
|
#20
DISK, FR. BRAKE *NH105* (MAT BLACK) (NOT AVAILABLE)
45351-KA3-830ZA
|
$254.70 | ||
|
Unavailable |
|||
|
#23
BOLT, DISK (6X17)
90105-KA3-730
Superseded by 90105-KN5-000
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, DISK (6X17)
90105-KN5-000
|
$4.89 | ||
|
Unavailable |
|||
|
#25
SCREW-WASHER (4X8)
90204-KA3-730
Superseded by 90204-KPS-900
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#26
DUST SEAL (22X50X5) (NOK)
91254-KA3-831
|
$11.15 | ||
|
Available to order. Add to View Price |
|||
|
#26
DUST SEAL (22X50X5) (NOK)
91254-KA3-832
Superseded by 91254-KA3-831
|
$11.15 | ||
|
Unavailable |
|||
|
#27
DUST SEAL (24X37X7) (NOK)
91259-KA3-832
Superseded by 91259-KS6-831
|
$11.15 | ||
|
Available to order. Add to View Price |
|||
|
#27
DUST SEAL (24X37X7) (NOK)
91259-KS6-831
|
$11.15 | ||
|
Unavailable |
|||
|
#28
NUT, HEX. (8MM)
94001-08000-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
WASHER, SPRING (8MM)
94111-08000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
BEARING, RADIAL BALL (6003-SH2)
91065-KA3-832
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
