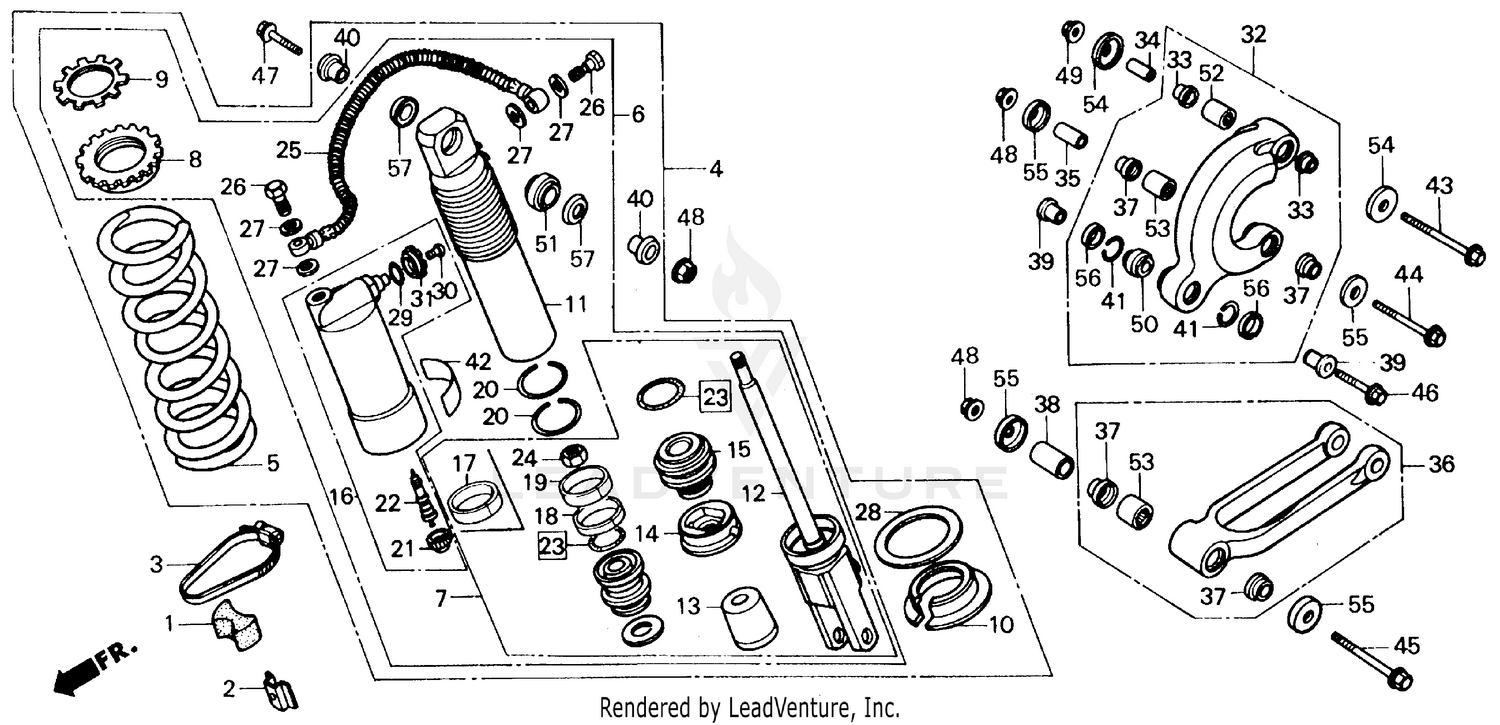

Shock Absorber 85-86 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RUBBER, SUB-TANK MOUNTING (NOT AVAILABLE)
50250-KA3-830
|
$5.78 | ||
|
Unavailable |
|||
|
#2
RUBBER, SUB-TANK
50251-KS7-000
|
$3.74 | ||
|
Unavailable |
|||
|
#3
BAND, SUB-TANK (NOT AVAILABLE)
50252-KA3-830
|
$15.63 | ||
|
Unavailable |
|||
|
#4
SHOCK ABSORBER ASSY., RR. (KAYABA)
52400-KS6-671
|
$1,275.15 | ||
|
Unavailable |
|||
|
#5
SPRING, RR. SHOCK ABSORBER (43.15N/MM,4.4KGF/MM) (KAYABA)
52401-KS6-004
|
$169.38 | ||
|
Unavailable |
|||
|
#5
SPRING, RR. SHOCK ABSORBER (39.23N/MM,4.0KGF/MM) (KAYABA)
52402-KS6-305
|
$141.48 | ||
|
Unavailable |
|||
|
#5
SPRING, RR. SHOCK ABSORBER (47.07N/MM,4.8KGF/MM) (KAYABA)
52403-KS6-305
|
$139.57 | ||
|
Unavailable |
|||
|
#6
DAMPER, RR. (KAYABA)
52410-KS6-671
|
$848.25 | ||
|
Unavailable |
|||
|
#7
ROD, PISTON (KAYABA)
52421-KS6-004
|
$306.30 | ||
|
Unavailable |
|||
|
#8
SEAT, SPRING (UPPER) (KAYABA)
52422-KS6-004
|
$27.60 | ||
|
Unavailable |
|||
|
#9
NUT, ADJUSTER (KAYABA)
52423-KS6-004
|
$21.62 | ||
|
Unavailable |
|||
|
#10
SEAT, SPRING (LOWER)
52424-KA3-831
Superseded by 52424-KS6-701
|
$15.14 | ||
|
Unavailable |
|||
|
#10
SEAT, SPRING (LOWER) (KAYABA)
52424-KS6-701
|
$15.14 | ||
|
Unavailable |
|||
|
#10
SEAT, SPRING (LOWER)
52424-KT1-671
Superseded by 52424-KS6-701
|
$15.14 | ||
|
Unavailable |
|||
|
#11
CASE, RR. SHOCK ABSORBER (NOT AVAILABLE)
52425-KS6-004
|
$271.25 | ||
|
Unavailable |
|||
|
#12
ROD (KAYABA)
52426-KS6-004
|
$428.77 | ||
|
Unavailable |
|||
|
#13
RUBBER, BUMPER (NOT AVAILABLE)
52427-KA3-731
|
$9.31 | ||
|
Unavailable |
|||
|
#14
CAP, CASE
52428-KA3-731
|
$16.40 | ||
|
Unavailable |
|||
|
#15
CASE, ROD GUIDE (KAYABA)
52429-KS6-004
|
$40.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
TANK ASSY., SUB (KAYABA)
52430-KS6-004
|
$150.40 | ||
|
Unavailable |
|||
|
#18
RING A, PISTON (KAYABA)
52431-KS6-014
|
$14.20 | ||
|
Unavailable |
|||
|
#19
RING B, PISTON (KAYABA)
52433-KS6-004
|
$12.23 | ||
|
Unavailable |
|||
|
#20
RING, SNAP (KAYABA)
52435-KS6-004
|
$3.78 | ||
|
Unavailable |
|||
|
#21
CAP, AIR VALVE
52436-KA3-731
|
$9.74 | ||
|
Unavailable |
|||
|
#22
CORE, VALVE
52437-KA3-731
|
$11.95 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING SET (KAYABA)
52437-KA3-832
|
$7.45 | ||
|
Unavailable |
|||
|
#24
NUT, HEX. (12MM)
52438-KA3-731
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOSE, JOINT (KAYABA)
52440-KS6-004
|
$95.99 | ||
|
Unavailable |
|||
|
#26
BOLT, OIL
52441-KA3-731
|
$10.78 | ||
|
Unavailable |
|||
|
#27
WASHER, OIL BOLT (KAYABA)
52442-KA3-731
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, SPRING SEAT (KAYABA)
52445-KA3-831
|
$14.58 | ||
|
Unavailable |
|||
|
#29
O-RING (2.4X10.8)
52447-KA3-731
|
$2.10 | ||
|
Unavailable |
|||
|
#30
SCREW, PAN (3X8)
52448-KS6-004
|
$2.57 | ||
|
Unavailable |
|||
|
#31
DIAL, ADJUSTING (NOT AVAILABLE)
52449-KA3-831
Superseded by 52449-KS6-701
|
$14.26 | ||
|
Unavailable |
|||
|
#32
ARM ASSY., SHOCK ABSORBER (NOT AVAILABLE)
52460-KA3-831
|
$252.10 | ||
|
Unavailable |
|||
|
#33
BUSH, DAMPER ARM
52462-KA3-831
|
$22.47 | ||
|
Available to order. Add to View Price |
|||
|
#34
COLLAR, CUSHION ARM PIVOT
52463-KA3-830
|
$12.30 | ||
|
Unavailable |
|||
|
#35
COLLAR, CUSHION ARM
52464-KA3-830
|
$15.21 | ||
|
Available to order. Add to View Price |
|||
|
#36
ROD ASSY., RUBBER CONNECTING
52470-KS6-000
|
$167.30 | ||
|
Unavailable |
|||
|
#37
BUSH, SHOCK CONNECTING ROD THRUST
52472-KA3-831
|
$23.26 | ||
|
Unavailable |
|||
|
#38
COLLAR, CONNECTING ROD PIVOT
52473-KA3-830
|
$14.88 | ||
|
Available to order. Add to View Price |
|||
|
#39
COLLAR, SHOCK ABSORBER (UPPER)
52486-KA3-731
|
$15.22 | ||
|
Unavailable |
|||
|
#40
COLLAR, SHOCK ABSORBER (UPPER)
52486-KS6-004
|
$14.89 | ||
|
Unavailable |
|||
|
#41
RING, STOPPER
52487-KA3-731
|
$4.42 | ||
|
Unavailable |
|||
|
#42
LABEL, RR. DAMPER WARNING (NOT AVAILABLE)
87516-KA3-741
Superseded by 87516-KT1-901
|
$5.37 | ||
|
Unavailable |
|||
|
#42
LABEL, RR. DAMPER WARNING (NOT AVAILABLE)
87516-KK0-771
Superseded by 87516-KT1-901
|
$5.37 | ||
|
Unavailable |
|||
|
#42
LABEL, RR. DAMPER WARNING (NOT AVAILABLE)
87516-KT1-771
Superseded by 87516-KT1-901
|
$5.37 | ||
|
Unavailable |
|||
|
#42
LABEL, RR. DAMPER WARNING
87516-KT1-901
|
$5.37 | ||
|
Unavailable |
|||
|
#43
BOLT, FLANGE (12X105)
90128-KA3-831
Superseded by 90128-KA4-003
|
$10.80 | ||
|
Unavailable |
|||
|
#43
BOLT, FLANGE (12X105)
90128-KA4-003
|
$10.80 | ||
|
Unavailable |
|||
|
#44
BOLT, FLANGE (10X77)
90129-KF0-000
|
$18.00 | ||
|
Available to order. Add to View Price |
|||
|
#45
BOLT, FLANGE (10X83)
90130-KS6-000
|
$9.12 | ||
|
Unavailable |
|||
|
#46
BOLT, FLANGE (10X48)
90153-KA3-730
|
$6.28 | ||
|
Available to order. Add to View Price |
|||
|
#47
BOLT, FLANGE (10X52)
90154-KA3-830
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#48
NUT, AXLE (10MM)
90304-GA6-003
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#49
NUT, FLANGE (12MM)
90306-KA4-003
Superseded by 90306-181-761
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#49
NUT, FLANGE (12MM)
90306-181-761
|
$7.64 | ||
|
Unavailable |
|||
|
#50
BEARING, SPHERICAL (14MM)
91077-KA3-731
Superseded by 91077-KN5-004
|
$25.84 | ||
|
Available to order. Add to View Price |
|||
|
#50
BEARING, SPHERICAL (14MM)
91077-KN5-004
|
$25.84 | ||
|
Unavailable |
|||
|
#51
BEARING, SPHERICAL (14MM)
91077-KA3-831
|
$37.68 | ||
|
Unavailable |
|||
|
#52
BEARING, NEEDLE (19.1X26.1X27) (TOYO)
91078-KA3-831
|
$34.01 | ||
|
Unavailable |
|||
|
#53
BEARING, NEEDLE (17.5X24.5X22)
91079-KA3-831
|
$33.65 | ||
|
Available to order. Add to View Price |
|||
|
#54
SEAL, CUSHION ARM PIVOT
91261-KA3-831
Superseded by 91261-KS6-701
|
$9.85 | ||
|
Available to order. Add to View Price |
|||
|
#54
SEAL, CUSHION ARM PIVOT
91261-KS6-701
|
$9.85 | ||
|
Unavailable |
|||
|
#55
SEAL, RUBBER CONNECTING ROD PIVOT
91262-KA3-831
|
$7.77 | ||
|
Unavailable |
|||
|
#56
DUST SEAL, RR. SHOCK (UPPER)
91351-KA3-731
|
$5.18 | ||
|
Unavailable |
|||
|
#57
DUST SEAL, RR. SHOCK (UPPER)
91351-KA3-831
|
$7.84 | ||
|
Available to order. Add to View Price |
|||
