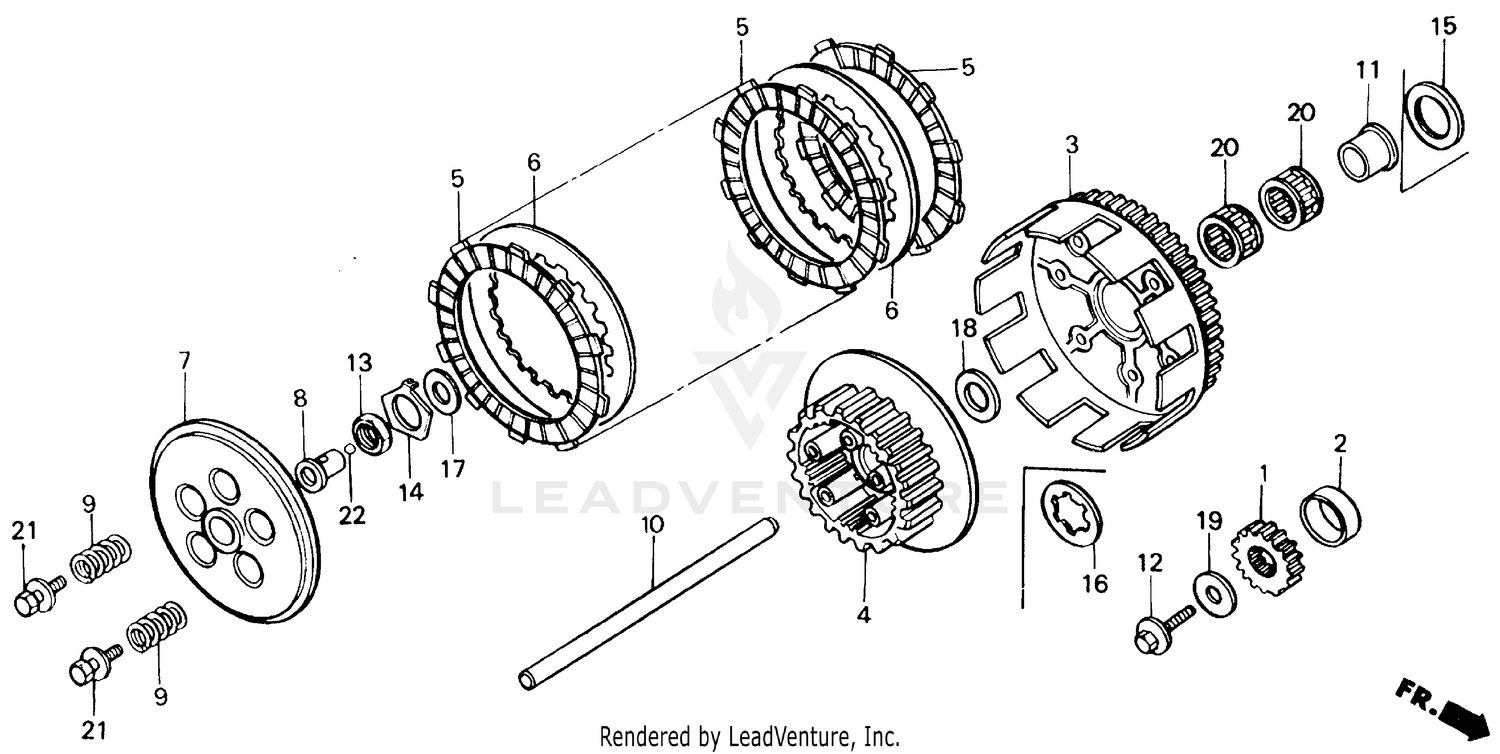

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRIMARY DRIVE (20T) (NOT AVAILABLE)
13615-KA3-740
|
$27.94 | ||
|
Unavailable |
|||
|
#2
COLLAR, DRIVE GEAR (NOT AVAILABLE)
13617-KA3-740
|
$21.34 | ||
|
Unavailable |
|||
|
#3
CLUTCH (OUTER) (64T)
22100-KS6-000
|
$277.05 | ||
|
Unavailable |
|||
|
#4
CENTER, CLUTCH
22120-KS6-000
Superseded by 22120-KS6-010
|
$104.08 | ||
|
Unavailable |
|||
|
#5
DISK, CLUTCH FRICTION
22201-KA3-760
Superseded by 22201-KS6-700
|
$21.42 | ||
|
Available to order. Add to View Price |
|||
|
#5
DISK, CLUTCH FRICTION
22201-KS6-700
|
$21.42 | ||
|
Unavailable |
|||
|
#5
DISK, CLUTCH FRICTION
22201-KZ4-700
Superseded by 22201-KS6-700
|
$21.42 | ||
|
Unavailable |
|||
|
#6
PLATE, CLUTCH
22321-KA3-710
|
$23.24 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, CLUTCH PRESSURE
22351-KS6-000
|
$63.48 | ||
|
Unavailable |
|||
|
#8
PIECE, CLUTCH LIFTER
22352-KA4-000
|
$34.45 | ||
|
Unavailable |
|||
|
#9
SPRING, CLUTCH
22401-KA3-710
|
$5.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROD, CLUTCH LIFTER (NOT AVAILABLE)
22850-KS6-000
|
$12.74 | ||
|
Unavailable |
|||
|
#11
COLLAR (20X25X25.5)
28237-KS6-000
|
$23.28 | ||
|
Unavailable |
|||
|
#12
BOLT, SPECIAL (10X25)
90013-430-000
|
$8.11 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT (18MM)
90235-KA4-000
|
$13.44 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, LOCK (18MM)
90441-HA2-670
Superseded by 90445-KAE-000
|
$6.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WASHER, LOCK (18MM)
90445-KAE-000
|
$6.42 | ||
|
Unavailable |
|||
|
#17
WASHER, THRUST (18X32)
90456-KA4-000
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, THRUST (20MM)
90456-KS6-000
|
$13.13 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING (10MM)
90481-430-000
|
$7.76 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, NEEDLE (25X29X22) (TOYO)
91011-KS6-003
|
$38.13 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, NEEDLE (25X29X22) (TOYO)
91011-KS6-004
Superseded by 91011-KS6-003
|
$38.13 | ||
|
Unavailable |
|||
|
#20
BEARING, NEEDLE (25X29X22) (TOYO)
91011-KS6-005
Superseded by 91011-KS6-003
|
$38.13 | ||
|
Unavailable |
|||
|
#21
BOLT-WASHER (6X20)
93494-06020-08
Superseded by 93404-06020-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT-WASHER (6X20)
93404-06020-08
|
$1.70 | ||
|
Unavailable |
|||
|
#22
BALL, STEEL (#9) (9/32)
96211-09000
|
$0.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
