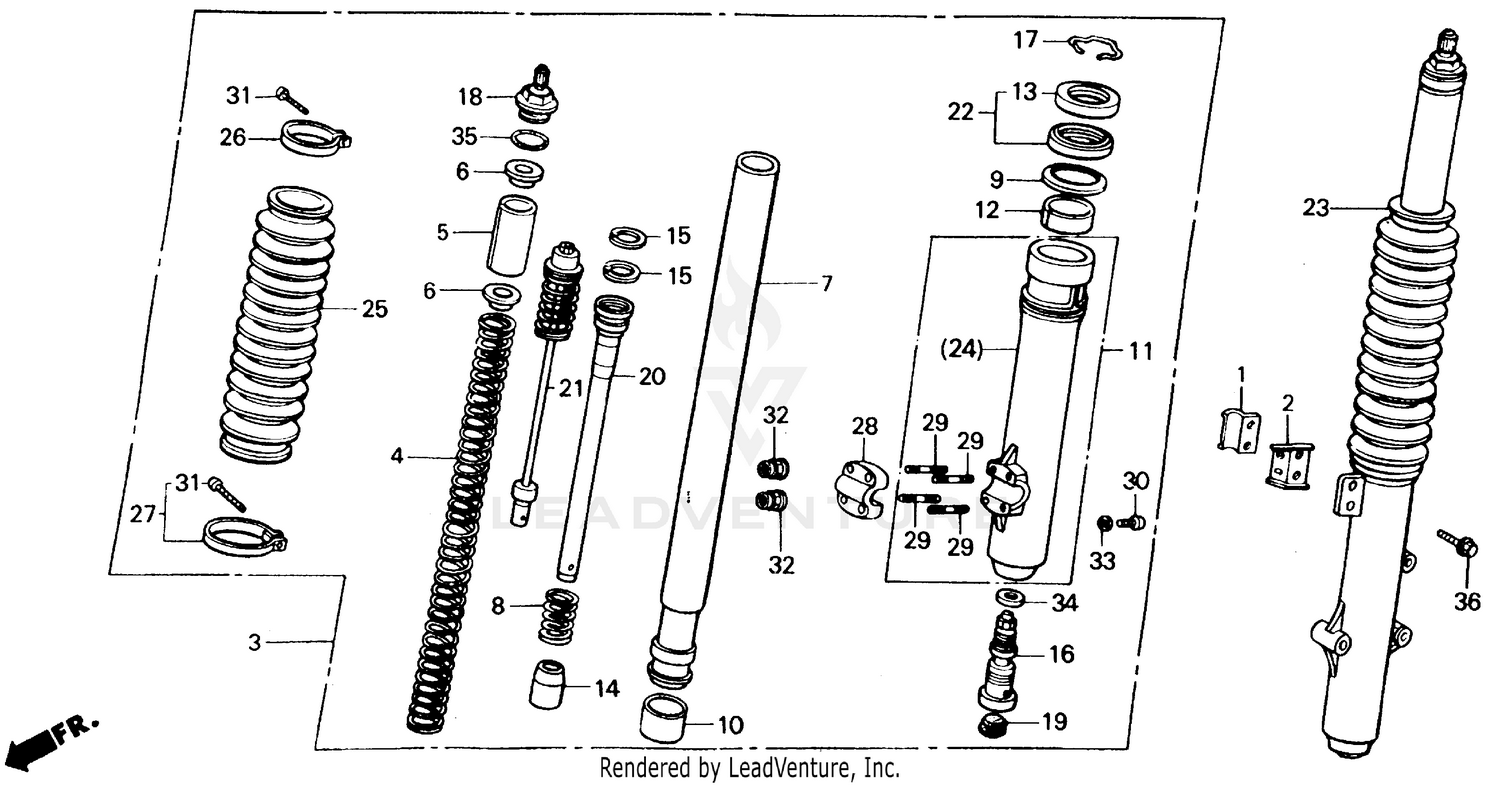

Front Fork 86 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLAMP A, FR. BRAKE CABLE
45461-KA3-710
|
$12.60 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLAMP B, FR. BRAKE CABLE
45462-KA3-710
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#3
FORK ASSY., R. FR. (KAYABA) (NOT AVAILABLE)
51400-KS6-004
|
$618.51 | ||
|
Unavailable |
|||
|
#4
SPRING, FR. FORK (3.43N/MM) (0.350KGF/MM) (KAYABA)
51401-KS6-004
|
$51.44 | ||
|
Unavailable |
|||
|
#4
SPRING, FR. FORK (3.24N/MM) (0.330KGF/MM) (KAYABA)
51401-KS6-651
|
$66.08 | ||
|
Unavailable |
|||
|
#4
SPRING, FR. FORK (3.63N/MM,0.370KG/MM) (KAYABA)
51403-KS6-305
|
$90.06 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER, SPRING (KAYABA) (NOT AVAILABLE)
51404-KS6-004
|
$6.06 | ||
|
Unavailable |
|||
|
#6
GUIDE, SPRING
51405-KA3-731
|
$3.92 | ||
|
Unavailable |
|||
|
#7
PIPE, FR. FORK (KAYABA)
51410-KS6-004
|
$352.70 | ||
|
Unavailable |
|||
|
#8
SPRING, FR. REBOUND (1.62KG/MM) (KAYABA)
51411-KS6-004
|
$10.01 | ||
|
Unavailable |
|||
|
#9
WASHER (NOT AVAILABLE)
51412-KA4-701
|
$3.63 | ||
|
Unavailable |
|||
|
#10
SLEEVE, FORK PIPE
51415-KA3-731
|
$17.29 | ||
|
Unavailable |
|||
|
#11
CASE, R. (LOWER) (KAYABA)
51421-KS6-004
|
$352.70 | ||
|
Unavailable |
|||
|
#12
BUSH, FORK PIPE
51424-KA4-701
|
$16.83 | ||
|
Unavailable |
|||
|
#13
DUST SEAL, FR. FORK
51425-KA3-731
|
$13.92 | ||
|
Unavailable |
|||
|
#14
PIECE, OIL LOCK (KAYABA)
51432-KS6-004
|
$14.87 | ||
|
Unavailable |
|||
|
#15
RING, PISTON (NOT AVAILABLE)
51437-KA3-731
|
$3.86 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, CENTER (KAYABA)
51441-KS6-004
|
$44.37 | ||
|
Unavailable |
|||
|
#17
RING, OIL SEAL STOP
51447-KA4-701
Superseded by 51447-KZ4-711
|
$6.33 | ||
|
Available to order. Add to View Price |
|||
|
#17
RING, OIL SEAL STOP
51447-KZ4-711
|
$6.33 | ||
|
Unavailable |
|||
|
#18
BOLT, FR. FORK (NOT AVAILABLE)
51455-KA3-731
|
$24.36 | ||
|
Unavailable |
|||
|
#19
CAP, ADJUSTING BOLT
51461-KA3-831
|
$4.31 | ||
|
Unavailable |
|||
|
#20
PIPE, SEAT (KAYABA)
51470-KS6-004
|
$54.72 | ||
|
Unavailable |
|||
|
#21
ROD, TENSION CONTROL VALVE (KAYABA) (NOT AVAILABLE)
51480-KS6-004
|
$60.92 | ||
|
Unavailable |
|||
|
#22
SEAL SET, FR. FORK
51490-KA3-731
|
$31.17 | ||
|
Unavailable |
|||
|
#23
FORK ASSY., L. FR. (KAYABA)
51500-KS6-004
|
$962.45 | ||
|
Unavailable |
|||
|
#24
CASE, L. (LOWER)
51521-KS6-004
|
$348.95 | ||
|
Unavailable |
|||
|
#25
BOOT, FR. FORK (KAYABA) (NOT AVAILABLE)
51611-KA3-831
|
$30.38 | ||
|
Unavailable |
|||
|
#26
BAND, FR. FORK BOOT
51612-KA3-831
|
$7.59 | ||
|
Unavailable |
|||
|
#27
BAND, BOOT (LOWER)
51613-KS6-004
|
$9.91 | ||
|
Unavailable |
|||
|
#28
HOLDER, AXLE (KAYABA)
51634-KA3-831
|
$27.96 | ||
|
Unavailable |
|||
|
#29
BOLT, STUD (6X34)
90136-KA3-831
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, PAN (4X8) (NOT AVAILABLE)
90201-KA4-004
|
$1.48 | ||
|
Unavailable |
|||
|
#30
SCREW, PAN (4X8)
93500-04008-0A
|
$0.92 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW, PAN (4X16)
90202-KA4-004
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW, PAN (4X26)
93500-04016-0A
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, U (6MM)
90301-473-003
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, DRAIN (4MM)
90543-KA4-004
|
$0.87 | ||
|
Unavailable |
|||
|
#34
WASHER (KAYABA)
90544-KS6-004
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#35
O-RING (33.7X3.5) (NOT AVAILABLE)
91356-KA4-701
|
$2.06 | ||
|
Unavailable |
|||
|
#36
BOLT, FLANGE (6X16)
96000-06016-00
Superseded by 96001-06016-00
|
$1.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
BOLT, FLANGE (6X16)
96001-06016-00
|
$1.10 | ||
|
Unavailable |
|||
