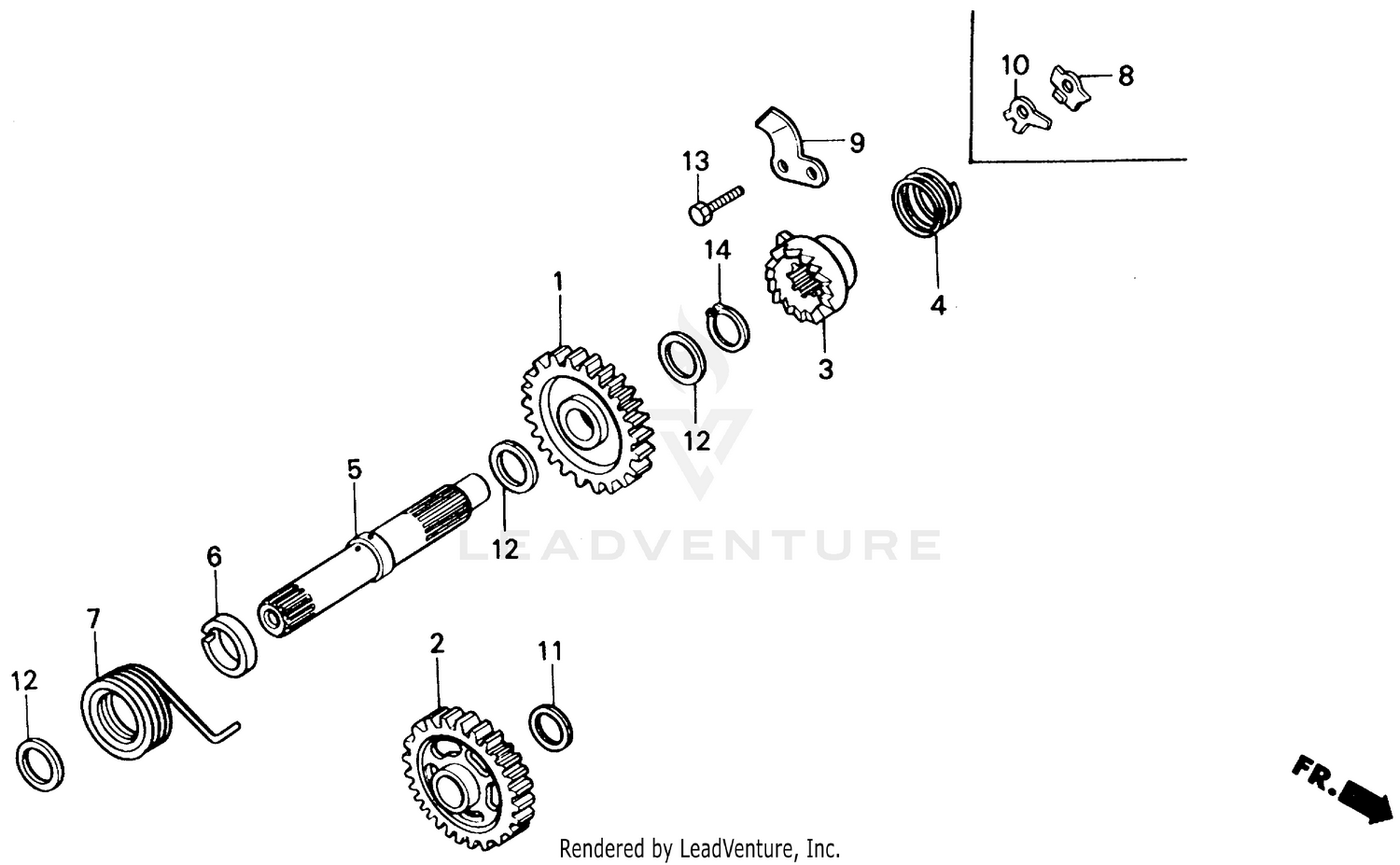

Kick Starter Spindle Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, KICK STARTER (29T)
28210-KS6-000
|
$79.30 | ||
|
Unavailable |
|||
|
#2
GEAR, STARTER IDLE (27T) (NOT AVAILABLE)
28230-KS6-000
|
$57.82 | ||
|
Unavailable |
|||
|
#3
RATCHET, STARTER
28241-KA3-710
|
$78.47 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, RATCHET
28242-KA3-710
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPINDLE, KICK STARTER
28251-KA3-760
|
$75.63 | ||
|
Unavailable |
|||
|
#5
SPINDLE, KICK STARTER
28251-KS6-000
Superseded by 28251-KA3-760
|
$75.63 | ||
|
Unavailable |
|||
|
#6
COLLAR, KICK SPINDLE
28255-KA3-710
|
$11.79 | ||
|
Unavailable |
|||
|
#7
SPRING, STARTER RETURN
28261-KA3-710
|
$16.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, RATCHET SLIDER (NOT AVAILABLE)
28262-KA3-710
|
$7.79 | ||
|
Unavailable |
|||
|
#10
WASHER, LOCK (6MM)
90435-KA3-710
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, THRUST (17MM)
90452-178-000
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER (16.8X24)
90501-444-000
|
$5.24 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEX. (6X16)
93300-06016-0A
Superseded by 93301-06016-0A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEX. (6X16)
93301-06016-0A
|
$1.53 | ||
|
Unavailable |
|||
|
#14
CIRCLIP (OUTER) (16MM)
94510-16000
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
