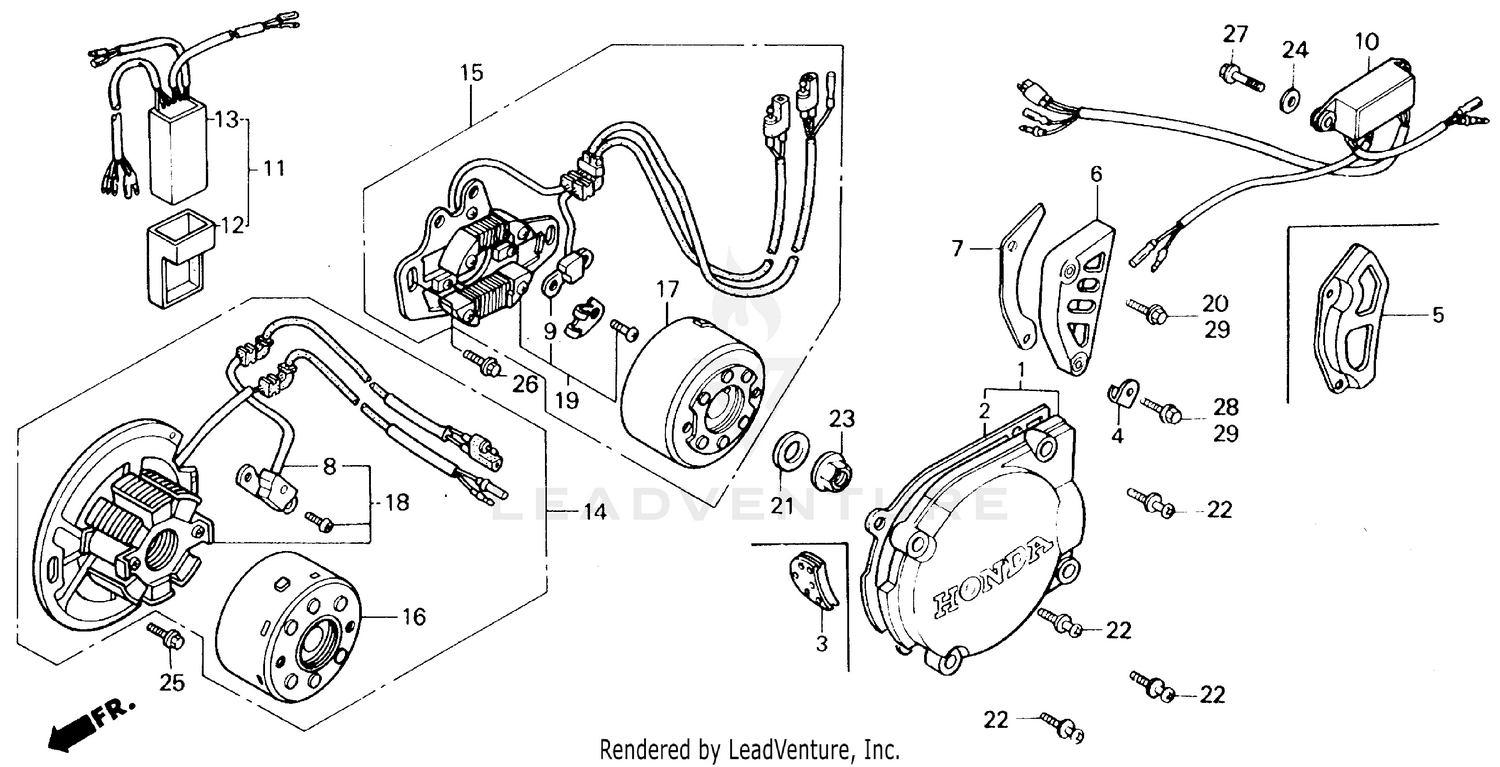

Alternator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER ASSY., L. CRANKCASE (NOT AVAILABLE)
11350-KA3-760
|
$31.19 | ||
|
Unavailable |
|||
|
#2
GASKET, L. COVER
11352-KA3-760
|
$3.83 | ||
|
Unavailable |
|||
|
#3
GROMMET, L. CRANKCASE COVER (NOT AVAILABLE)
11353-KA3-760
|
$4.18 | ||
|
Unavailable |
|||
|
#4
CLAMP, OVERFLOW PIPE
16236-045-010
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, DRIVE SPROCKET
23810-KS6-000
|
$18.96 | ||
|
Unavailable |
|||
|
#7
GUIDE, DRIVE CHAIN (NOT AVAILABLE)
23812-KA3-710
|
$15.57 | ||
|
Unavailable |
|||
|
#9
GENERATOR ASSY., PULSE (NOT AVAILABLE)
30300-KS6-000
|
$41.58 | ||
|
Unavailable |
|||
|
#11
MODULE, IGNITION CONTROL (CDI) (KOKUSAN) (NOT AVAILABLE)
30400-KS6-004
|
$226.87 | ||
|
Unavailable |
|||
|
#12
SUSPENSION, IGNITION CONTROL MODULE (KOKUSAN) (NOT AVAILABLE)
30406-ML3-000
Superseded by 30406-KS6-701
|
$8.38 | ||
|
Unavailable |
|||
|
#15
ALTERNATOR ASSY.
31100-KS6-010
Superseded by 31100-KS6-003
|
$396.89 | ||
|
Unavailable |
|||
|
#17
FLYWHEEL
31110-KS6-000
Superseded by 31110-KS6-003
|
$266.94 | ||
|
Unavailable |
|||
|
#17
FLYWHEEL
31110-KS6-003
|
$266.94 | ||
|
Unavailable |
|||
|
#19
STATOR
31120-KS6-000
Superseded by 31120-KS6-003
|
$486.76 | ||
|
Unavailable |
|||
|
#19
STATOR
31120-KS6-003
|
$486.76 | ||
|
Unavailable |
|||
|
#21
WASHER, PLAIN (12MM)
90437-611-000
|
$5.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
SCREW-WASHER (6X25)
93891-06025-07
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, FLANGE (12MM)
94050-12000
|
$1.18 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X18)
96300-06018-00
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X18)
96300-06018-00
|
$1.47 | ||
|
Unavailable |
|||
