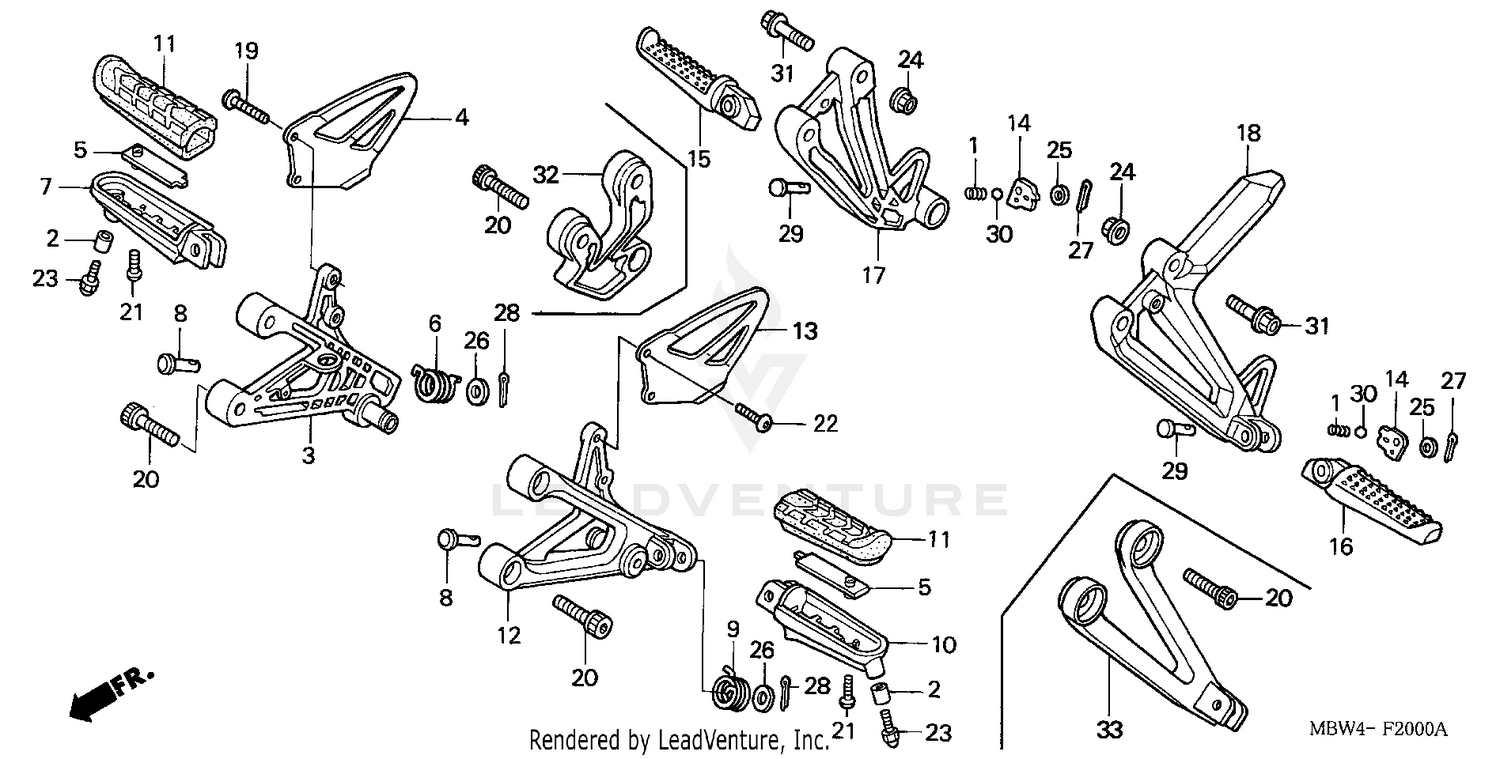

Step Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPRING, KICK STARTER STOPPER
28333-300-000
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR, SPECIAL (6X14)
30514-MZ7-000
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER, R. STEP *NH35M* (CLOUD SILVER METALLIC)
50600-MBW-000ZA
|
$123.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
GUARD, R. STEP
50607-MBW-010
|
$17.66 | ||
|
Unavailable |
|||
|
#5
PLATE, STEP SETTING
50609-MBW-000
|
$6.84 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, R. STEP RETURN
50617-445-840
|
$6.84 | ||
|
Available to order. Add to View Price |
|||
|
#7
ARM, R. MAIN STEP
50635-MBW-000
|
$61.13 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, STEP BAR
50639-ML0-010
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, L. STEP RETURN
50644-445-840
|
$6.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
ARM, L. MAIN STEP
50645-MBW-000
|
$61.13 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, MAIN STEP (COO)
50661-MBW-000
Superseded by 50661-MJM-305
|
$10.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOLDER, L. STEP *NH35M* (CLOUD SILVER METALLIC)
50700-MBW-000ZA
|
$123.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
GUARD, L. STEP
50707-MBW-010
|
$17.67 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, PILLION STEP CLICK
50718-KT7-761
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#15
BAR, R. PILLION STEP (COO)
50720-KT7-761
Superseded by 50720-K26-305
|
$54.47 | ||
|
Available to order. Add to View Price |
|||
|
#16
BAR, L. PILLION STEP (COO)
50730-KT7-761
Superseded by 50730-K26-305
|
$54.47 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, SPECIAL (6X25)
90085-MBW-000
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, SOCKET (8X25)
90105-MBW-000
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, SPECIAL (5X14)
90118-MBW-000
|
$3.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
SCREW, PAN (6X14)
90118-MR1-000
|
$3.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
BOLT, HEX. CAP (6X22)
92501-06022-0A
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLAIN (6MM)
94101-06000
Superseded by 94101-06800
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLAIN (6MM)
94101-06080
Superseded by 94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#25
WASHER, PLAIN (6MM)
94101-06800
|
$0.68 | ||
|
Unavailable |
|||
|
#26
WASHER, PLAIN (8MM)
94102-08000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
PIN, SPLIT (1.6X12)
94201-16120
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
PIN, SPLIT (2.0X15)
94201-20150
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
PIN C, PILLION STEP
95015-83000
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#30
BALL, STEEL (#8) (1/4)
96211-08000
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
HOLDER, R. PILLION STEP *NH35M* (CLOUD SILVER METALLIC)
50750-MBW-A10ZA
|
$60.81 | ||
|
Unavailable |
|||
|
#33
HOLDER, L. PILLION STEP *NH35M* (CLOUD SILVER METALLIC)
50760-MBW-A10ZA
|
$60.81 | ||
|
Unavailable |
|||
