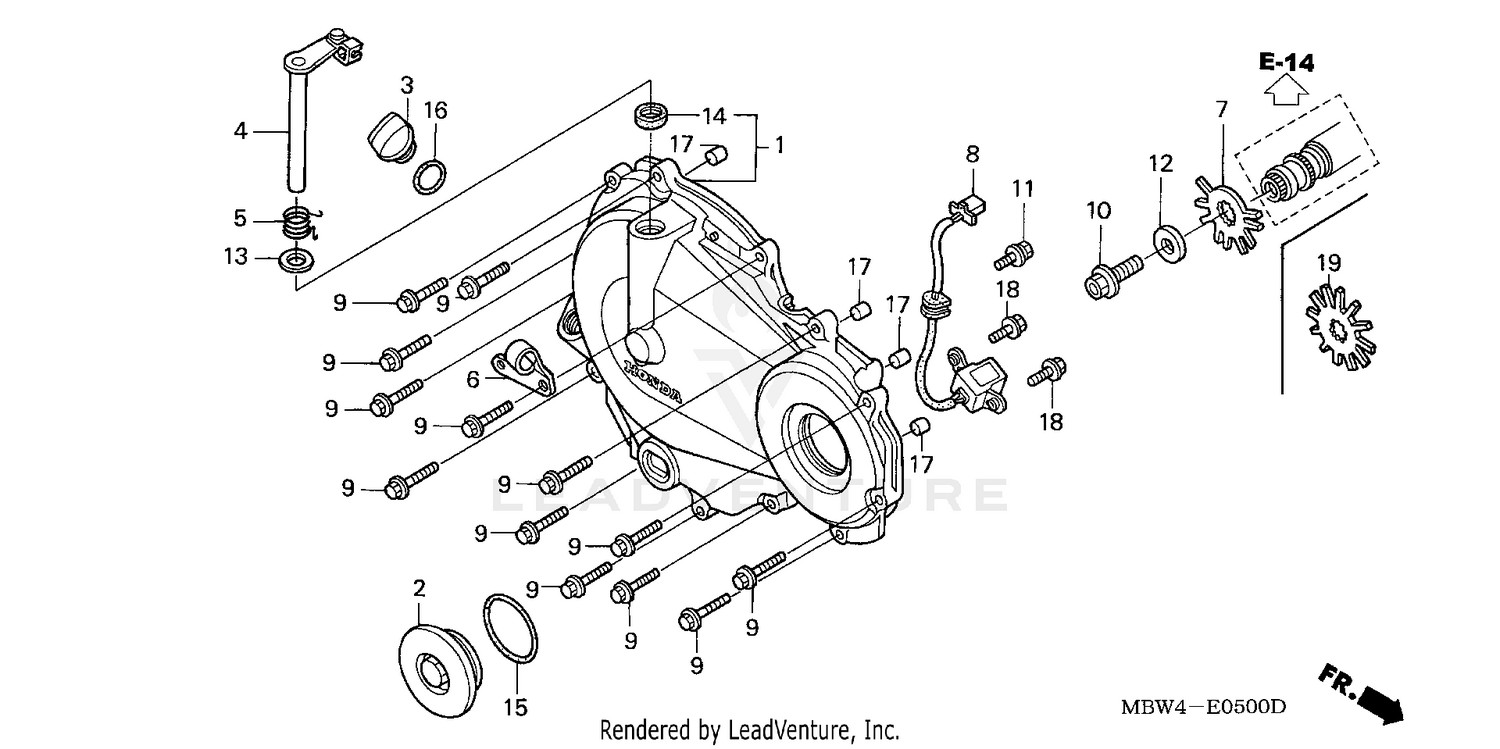

Right Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, R.
11330-MBW-E20
|
$246.95 | ||
|
Unavailable |
|||
|
#2
CAP (45MM)
11332-MM5-000
|
$29.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP, OIL FILLER
15611-KA4-710
|
$17.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
LEVER, CLUTCH
22810-MBW-E21
|
$54.48 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, CLUTCH LEVER
22815-MBW-000
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#6
RECEIVER, CLUTCH CABLE
22821-MBW-E20
|
$8.83 | ||
|
Unavailable |
|||
|
#8
GENERATOR ASSY., PULSE
30300-MBW-J21
|
$69.98 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE (6X28) (NSHF)
90006-GHB-680
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, SPECIAL (10X25)
90013-430-000
|
$8.11 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT-WASHER (6X12)
90021-MM5-000
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER (10.5X27)
90405-KT7-000
|
$5.38 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, BRAKE ARM
90525-GC4-700
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL (12X18X5) (ARAI)
91204-KK0-003
|
$6.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
O-RING (48.1X3.6) (ARAI)
91301-ML7-003
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING (18X3) (ARAI)
91307-KF0-003
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, DOWEL (10X16)
90701-MV9-670
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X14)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
ROTOR, PULSE GENERATOR
30291-MCJ-000
|
$15.12 | ||
|
Unavailable |
|||
