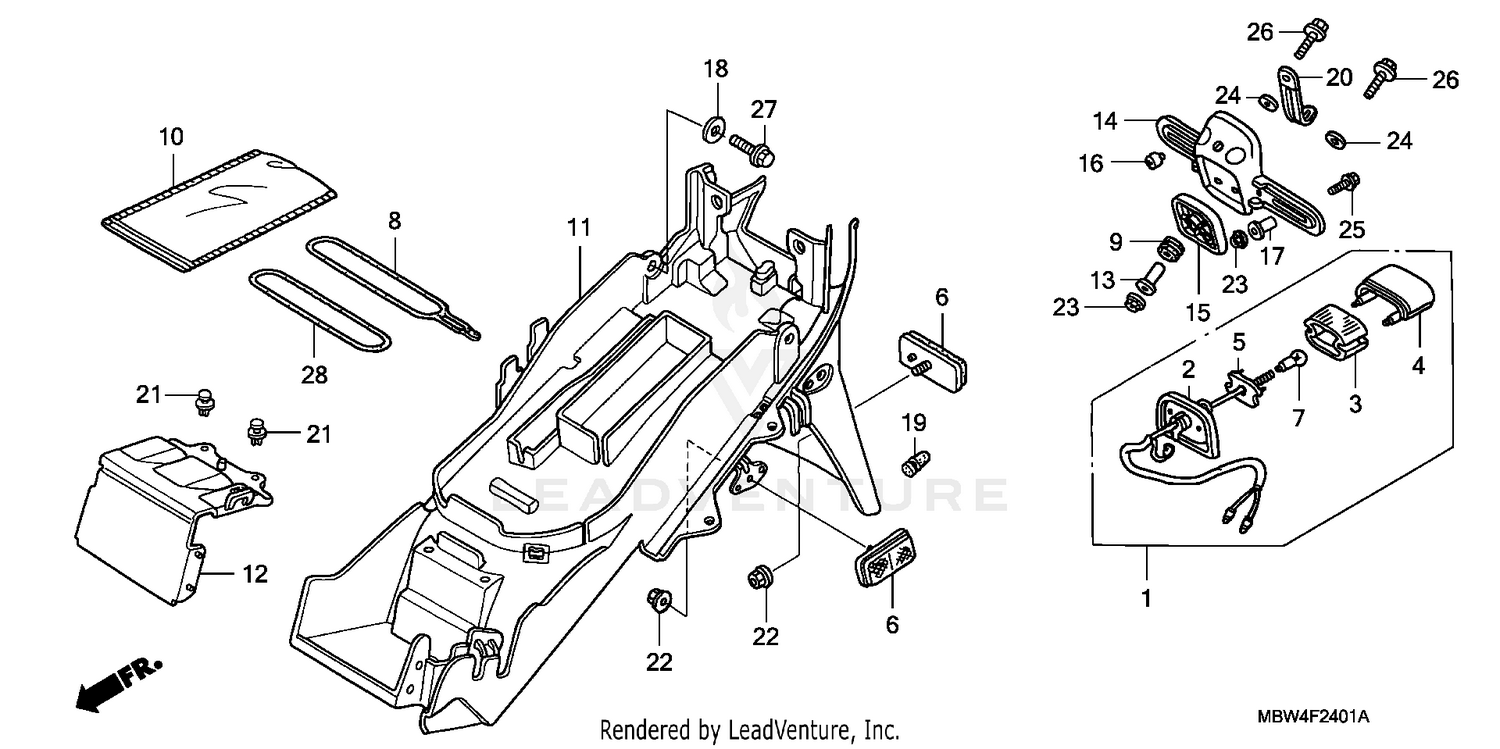

Rear Fender ('01-'03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LIGHT ASSY., LICENSE (12V 8W)
33720-MBW-A10
|
$91.71 | ||
|
Unavailable |
|||
|
#2
BASE, LICENSE
33721-MBW-A10
|
$25.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS, LICENSE LIGHT
33722-MB1-013
|
$23.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, LICENSE (STANLEY)
33727-ME4-671
|
$31.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, LENS
33729-MB1-003
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#6
REFLECTOR, REFLEX (STANLEY)
33741-MS6-921
|
$18.36 | ||
|
Available to order. Add to View Price |
|||
|
#7
BULB (12V8W)
34616-568-671
Superseded by 34909-505-003
|
$3.45 | ||
|
Unavailable |
|||
|
#7
BULB (12V8W)
34902-500-003
Superseded by 34909-505-003
|
$3.45 | ||
|
Unavailable |
|||
|
#7
BULB (12V8W)
34908-272-000
Superseded by 34909-505-003
|
$3.45 | ||
|
Unavailable |
|||
|
#7
BULB (12V8W)
34909-505-003
|
$3.45 | ||
|
Unavailable |
|||
|
#7
BULB (12V8W)
34909-505-610
Superseded by 34909-505-003
|
$3.45 | ||
|
Unavailable |
|||
|
#8
BAND, U-LOCK
50290-MBW-A10
|
$10.93 | ||
|
Unavailable |
|||
|
#9
RUBBER, FR. FENDER MOUNTING
61103-357-000
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAG, SERVICE BOOK
77251-GR1-000
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
FENDER, RR.
80105-MBW-A10
|
$179.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, BATTERY TRAY
80110-MBW-A10
|
$16.89 | ||
|
Unavailable |
|||
|
#13
COLLAR, RR. FENDER
80114-MCJ-670
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET, NUMBER PLATE
84701-ML7-670
|
$47.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER, LICENSE PLATE
84710-MCJ-670
|
$16.17 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, SPECIAL (4MM)
90302-MB2-000
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER (6X20)
90502-VA4-640
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER (6X20)
90505-HA0-680
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLUG, CONE TYPE
90899-422-610
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP (2X60)
91410-679-000
|
$12.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CLIP, PANEL FIXING *NH1* (BLACK)
91549-MW0-790ZA
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, FLANGE (5MM)
94050-05070
|
$1.35 | ||
|
Unavailable |
|||
|
#23
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
WASHER, PLAIN (6MM)
94103-06000
|
$1.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X16)
95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X40)
95701-06040-07
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X22)
96001-06022-00
|
$1.42 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BAND, U-LOCK
50290-MZ7-000
|
$24.15 | ||
|
Available to order. Add to View Price |
|||
