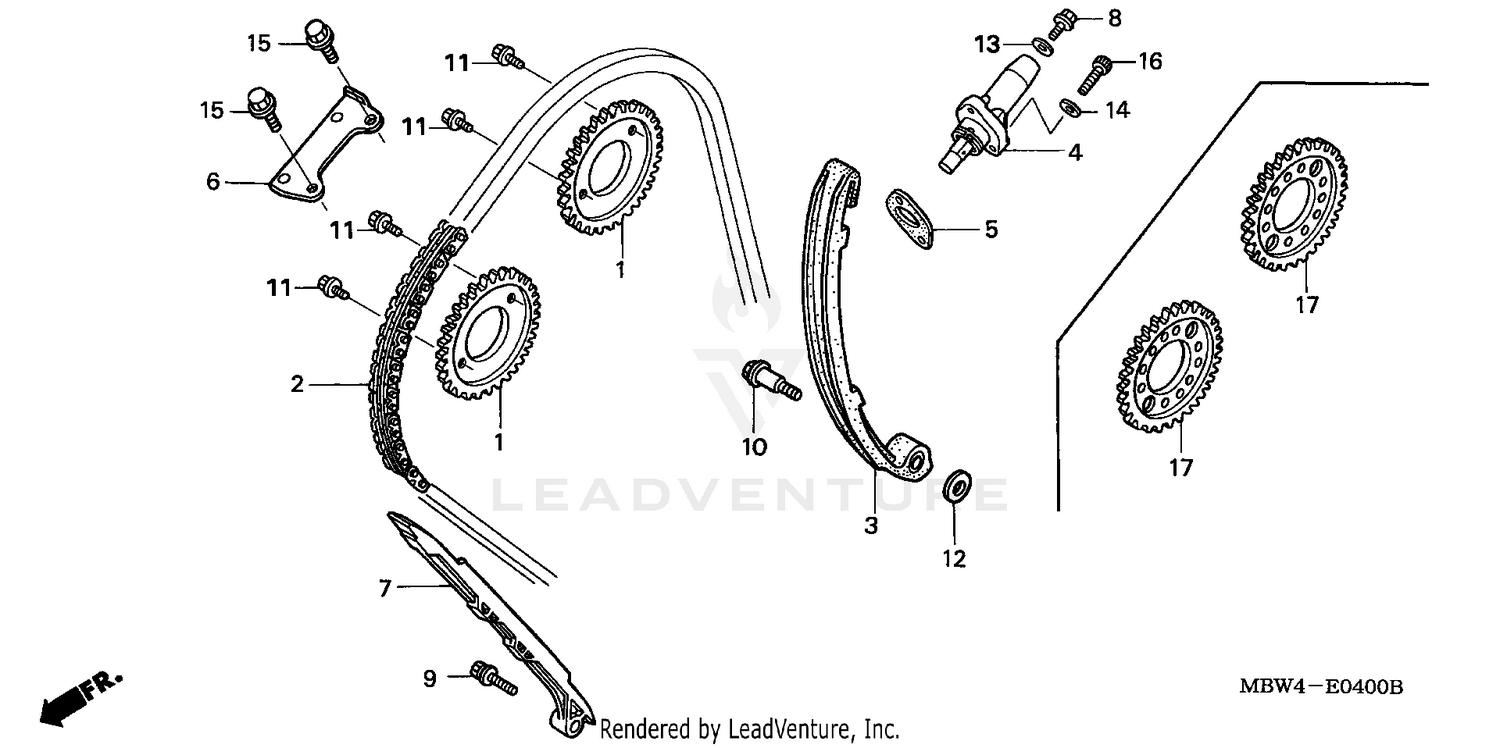

Cam Chain + Tensioner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
CHAIN, CAM (116L) (BORG WARNER)
14401-MAL-602
Superseded by 14401-MEE-003
|
$92.11 | ||
|
Available to order. Add to View Price |
|||
|
#3
TENSIONER, CAM CHAIN
14510-MBW-000
|
$87.71 | ||
|
Available to order. Add to View Price |
|||
|
#4
LIFTER ASSY., TENSIONER
14520-MBW-J22
Superseded by 14520-MBW-J24
|
$118.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
LIFTER ASSY., TENSIONER
14520-MBW-J23
Superseded by 14520-MBW-J24
|
$118.33 | ||
|
Unavailable |
|||
|
#4
LIFTER ASSY., TENSIONER
14520-MBW-J24
|
$118.33 | ||
|
Unavailable |
|||
|
#5
GSKT, TENSIONER HOLE
14523-MAL-A00
Superseded by 14523-MAL-A02
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GUIDE B, CAM CHAIN
14546-MBW-000
|
$42.09 | ||
|
Available to order. Add to View Price |
|||
|
#7
GUIDE, CAM CHAIN
14620-MBW-000
|
$76.11 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (6X10) (NSHF)
90004-GHB-600
|
$3.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOLT-WASHER (6X12)
90021-MM5-000
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIVOT, CAM CHAIN TENSIONER
90022-MBW-000
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE KNOCK (7X10.5)
90082-HA0-000
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER (6MM)
90401-MBW-000
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SEALING (6MM)
90442-397-000
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
WASHER, SEALING (6.5MM)
90463-ML7-000
|
$3.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X14)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
BOLT, SOCKET (6X25)
96600-06025-00
|
$2.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
SPROCKET, CAM (34T)
14321-MBW-J20
|
$82.81 | ||
|
Available to order. Add to View Price |
|||
