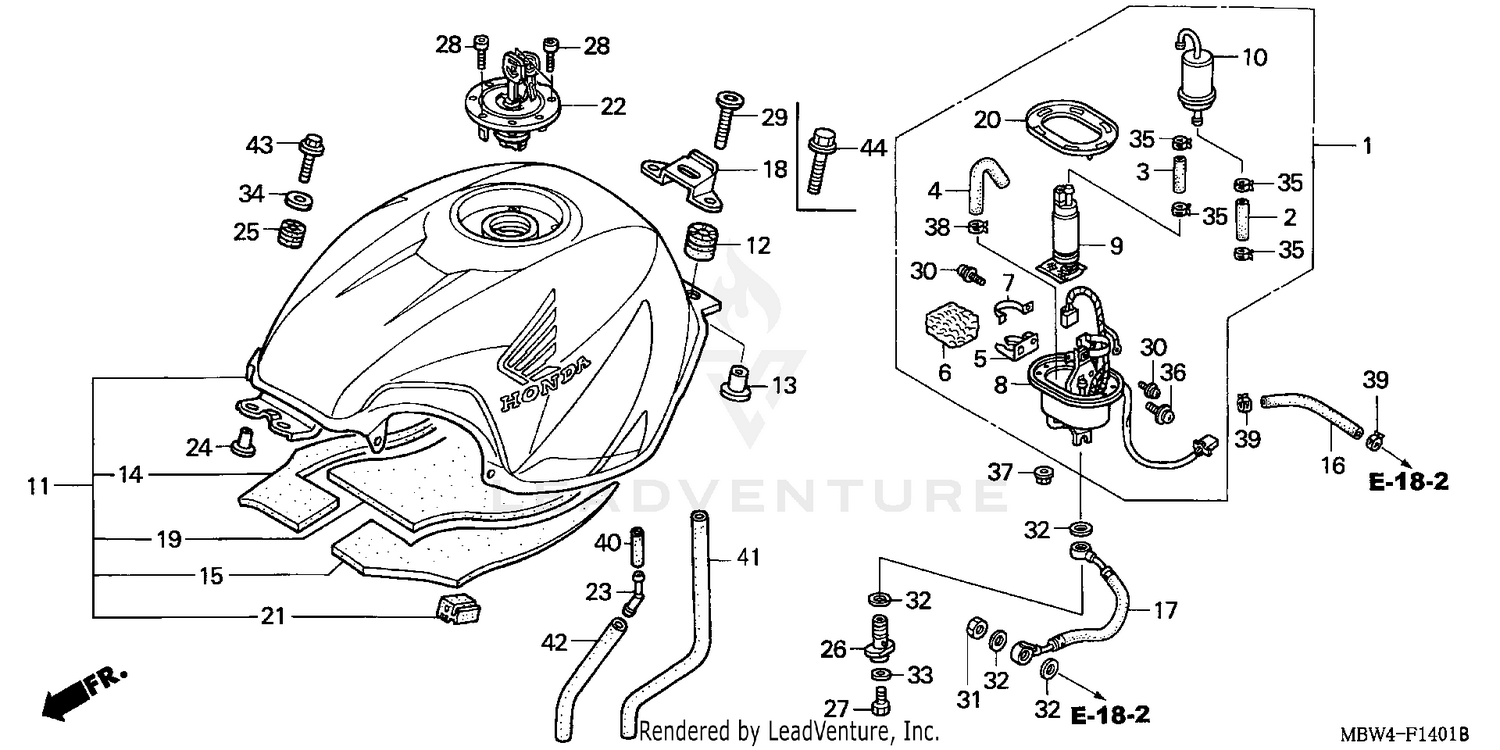

Fuel Tank ('01-'06) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY., FUEL
16700-MBW-A11
|
$788.24 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE A, PUMP
16711-MAT-D00
|
$6.71 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE B, PUMP
16712-MAT-D01
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
TUBE, FUEL PUMP RETURN
16713-MBG-010
|
$4.87 | ||
|
Available to order. Add to View Price |
|||
|
#5
STAY B
16714-MAT-D00
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
FILTER, FUEL RETURN
16714-MBG-000
|
$11.07 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND B
16717-MAT-D00
|
$4.20 | ||
|
Unavailable |
|||
|
#10
FILTER, FUEL
16900-MBG-013
|
$84.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
TANK SET, FUEL (TYPE2) (WL)
17506-MBW-A20ZB
|
$807.58 | ||
|
Unavailable |
|||
|
#11
TANK SET, FUEL (TYPE5) (WL)
17506-MBW-A20ZF
|
$831.80 | ||
|
Unavailable |
|||
|
#12
RUBBER, TANK MOUNTING
17508-MBW-000
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR, TANK SET
17509-MBW-D20
|
$6.87 | ||
|
Available to order. Add to View Price |
|||
|
#14
MAT, R. FUEL TANK SIDE
17514-MBW-300
|
$11.99 | ||
|
Unavailable |
|||
|
#15
MAT, L. FUEL TANK SIDE
17515-MBW-300
|
$11.99 | ||
|
Unavailable |
|||
|
#16
HOSE, FUEL RETURN
17525-MCC-000
Superseded by 17525-MCC-003
|
$11.90 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE, FUEL RETURN
17525-MCC-003
|
$11.90 | ||
|
Unavailable |
|||
|
#17
HOSE, FUEL FEED
17527-MBW-D20
|
$136.56 | ||
|
Available to order. Add to View Price |
|||
|
#18
STAY, FR. SEAT
17530-MBW-000
|
$17.69 | ||
|
Available to order. Add to View Price |
|||
|
#19
MAT, FUEL TANK
17570-MW4-300
|
$37.80 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET, BASE
17574-MBW-D20
|
$15.18 | ||
|
Available to order. Add to View Price |
|||
|
#21
CUSHION, FUEL TANK
17611-ML7-000
|
$10.33 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP, FUEL FILLER
17620-MAS-E02
Superseded by 17620-MAS-E04
|
$231.15 | ||
|
Available to order. Add to View Price |
|||
|
#23
JOINT, TUBE
19103-ML7-000
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR, SETTING
61104-422-000
|
$8.69 | ||
|
Available to order. Add to View Price |
|||
|
#25
RUBBER, TAILLIGHT MOUNTING
84703-425-000
|
$5.93 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, BANJO (12MM)
90008-PP4-E02
|
$19.92 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, SEALING (6MM)
90009-PP4-E01
|
$8.22 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, SOCKET (4X21)
90074-MT4-000
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, SOCKET (8X46)
90102-MBW-A10
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW-WASHER, LOCK (4X8)
90105-MBG-000
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT A, SEALING (12MM)
90201-PD1-000
|
$6.12 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, SEALING (12MM)
90428-PD6-003
|
$6.53 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, SEALING (6MM)
90430-PD6-003
|
$5.03 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLAIN (6MM)
90525-428-900
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLAMP, TUBE (D12)
91405-PD1-004
|
$10.87 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW-WASHER (5X12)
93893-05012-08
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#37
NUT, FLANGE (6MM)
94050-06080
|
$0.68 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLAMP, TUBE (D8.5)
95002-40850-04
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLAMP, TUBE (D10.5)
95002-41050-08
|
$2.65 | ||
|
Unavailable |
|||
|
#40
BULK HOSE, VACUUM (4.5X1000) (4.5X40)
95005-45001-20M
|
$40.16 | ||
|
Available to order. Add to View Price |
|||
|
#41
BULK HOSE, VACUUM (8X1000) (8X650)
95005-80001-20M
|
$28.98 | ||
|
Available to order. Add to View Price |
|||
|
#42
BULK HOSE, VACUUM (8X1000) (8X760)
95005-80001-50M
|
$19.70 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, FLANGE (6X28)
96001-06028-07
|
$1.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
