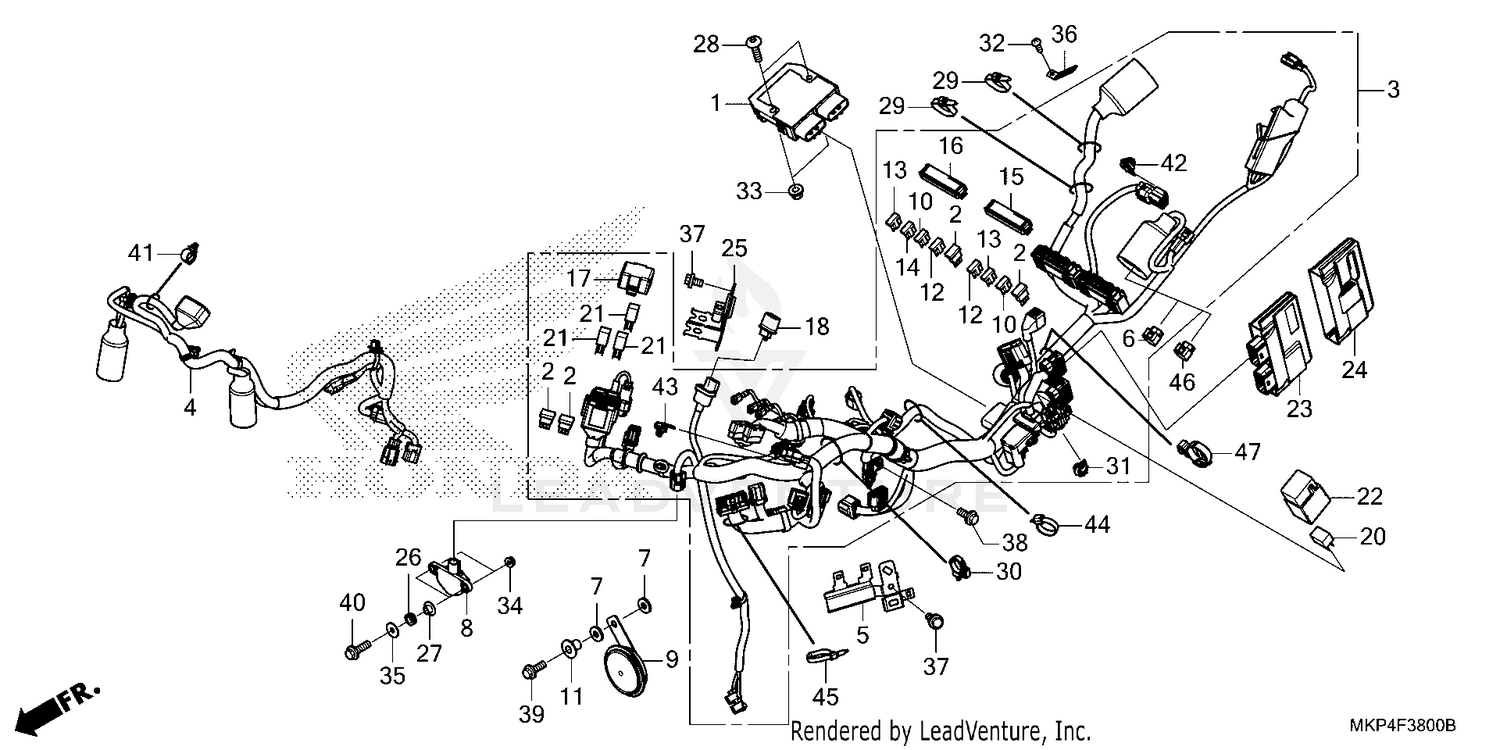

Wire Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RECTIFIER ASSY., REGULATOR
31600-MKN-D51
|
$228.55 | ||
|
Available to order. Add to View Price |
|||
|
#2
DIODE ASSY., THREE WAY (SUMITOMO)
31730-MAS-601
|
$13.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
WIRE HARNESS
32100-MKP-A90
|
$1,336.78 | ||
|
Available to order. Add to View Price |
|||
|
#4
SUB-HARNESS, FR.
32103-MKP-A80
|
$145.26 | ||
|
Available to order. Add to View Price |
|||
|
#5
STAY, CONNECTOR
32206-MGZ-J00
|
$8.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, DUMMY (6P) (RED)
91771-MKK-H11
|
$25.67 | ||
|
Available to order. Add to View Price |
|||
|
#7
RUBBER, TAILLIGHT BRACKET
33714-KL3-620
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#8
SENSOR ASSY., BANK ANGLE
35160-MGS-D31
|
$171.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
HORN (HIGH)
38110-MGZ-J01
|
$31.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
FUSE, BLADE (7.5A)
38221-SNA-A31
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, HORN SETTING
38117-KFE-701
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#12
FUSE, BLADE (10A)
38221-SNA-A41
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#13
FUSE, BLADE (15A)
38221-SNA-A51
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER (UPPER)
38255-MKP-T80
|
$20.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER (UPPER)
38256-MKP-A90
|
|||
|
Unavailable |
|||
|
#17
COVER, RELAY BOX
38281-MGZ-J01
|
$16.71 | ||
|
Available to order. Add to View Price |
|||
|
#18
RELAY, TURN SIGNAL
38301-KZZ-J01
|
$64.98 | ||
|
Available to order. Add to View Price |
|||
|
#20
RELAY, POWER (MICRO ISO 4P) (OMRON)
38501-KWN-901
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#21
RELAY (MICRO ISO 4P)
38501-MEL-003
Superseded by 38501-MKP-DN1
|
$5.85 | ||
|
Unavailable |
|||
|
#22
COVER, RELAY (2P)
38506-KZZ-900
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#23
PGM-FI UNIT
38770-MKP-A81
|
$558.41 | ||
|
Available to order. Add to View Price |
|||
|
#24
CUSHION, PGM-FI UNIT
38774-MKP-D00
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#25
STAY, RELAY BOX
50194-MGZ-J00
|
$10.78 | ||
|
Available to order. Add to View Price |
|||
|
#26
RUBBER, SIDE COVER
64535-MFJ-D00
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR, BANK ANGLE SENSOR
90129-MGZ-J00
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, PAN (6X25)
90135-K87-A00
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLAMP, HARNESS
90652-HC4-003
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLIP, CONNECTOR (DARK BLUE)
91535-STK-003
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCREW, TAPPING (4X12)
93903-24380
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
NUT, FLANGE (6MM)
94050-06070
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, FLANGE (6MM)
94050-06080
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
WASHER, PLAIN (6MM)
94103-06800
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
|
#36
CLIP (4X90)
94591-49000
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)
95701-06010-00
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, FLANGE (6X14)
95701-06014-08
|
$1.70 | ||
|
Unavailable |
|||
|
#39
BOLT, FLANGE (6X20)
95701-06020-07
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
BOLT, FLANGE (6X22)
95701-06022-08
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#41
CLIP, WIRE HARNESS (25MM)
90683-SA0-003
|
$10.40 | ||
|
Available to order. Add to View Price |
|||
|
#42
CLIP, CONNECTOR (DARK BROWN)
91535-TA0-003
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#43
CLIP, CONNECTOR (BLACK) (Honda Code 7386865)
91565-SEL-003
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#44
BAND, WIRE (Honda Code 2687788)
90650-KV6-003
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
