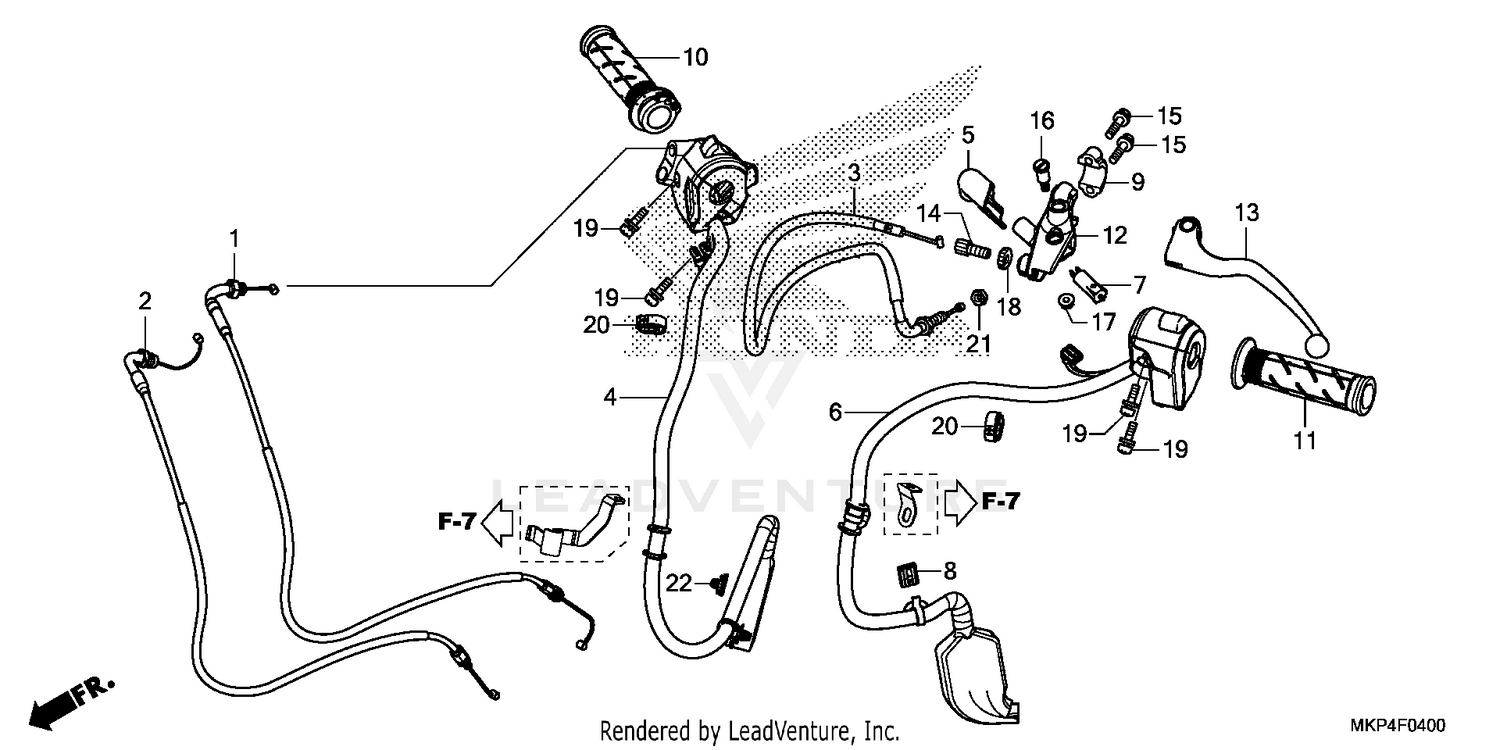

Handle Lever@switch@cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#20
CLAMP, HARNESS
90690-MEF-800
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT,HEX 8MM
94002-080700S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP, CONNECTOR (ORANGE)
91580-SM4-003
|
$7.33 | ||
|
Available to order. Add to View Price |
|||
|
#1
CABLE A, THROTTLE
17910-MGZ-J81
|
$16.98 | ||
|
Available to order. Add to View Price |
|||
|
#2
CABLE B, THROTTLE
17920-MGZ-J81
|
$16.62 | ||
|
Available to order. Add to View Price |
|||
|
#3
CABLE, CLUTCH
22870-MKP-J81
|
$15.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
SW ASSY., ENG STOP
35130-MKP-A82
|
$93.80 | ||
|
Unavailable |
|||
|
#5
COVER, CLUTCH SWITCH
35152-MGZ-J00
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#6
SWITCH ASSY., TURN SIGNAL
35200-MKP-A81
|
$87.27 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWITCH, FR. LEVER
35330-KYJ-901
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOLDER, BRACKET (RED)
91554-SM4-003
|
$8.18 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOLDER, MASTER CYLINDER
45517-166-006
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#10
GRIP, THROTTLE
53140-MGS-D30
|
$34.33 | ||
|
Available to order. Add to View Price |
|||
|
#11
GRIP, L. HANDLE
53150-MGS-D30
|
$14.69 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, HANDLE LEVER
53172-KYJ-900
|
$16.84 | ||
|
Available to order. Add to View Price |
|||
|
#13
LEVER, L. HANDLE
53178-MKP-J00
|
$16.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, CABLE ADJUSTING
53192-268-000
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X22)
90013-GHB-660
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, L. HANDLEBAR LEVER PIVOT
90113-438-000
|
$9.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NUT, U (6MM) (FUJI SEIMITSU)
90301-KGH-901
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, FIXING
90321-315-670
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW-WASHER (5X20)
90507-MGZ-J00
|
$0.56 | ||
|
Available to order. Add to View Price |
|||
