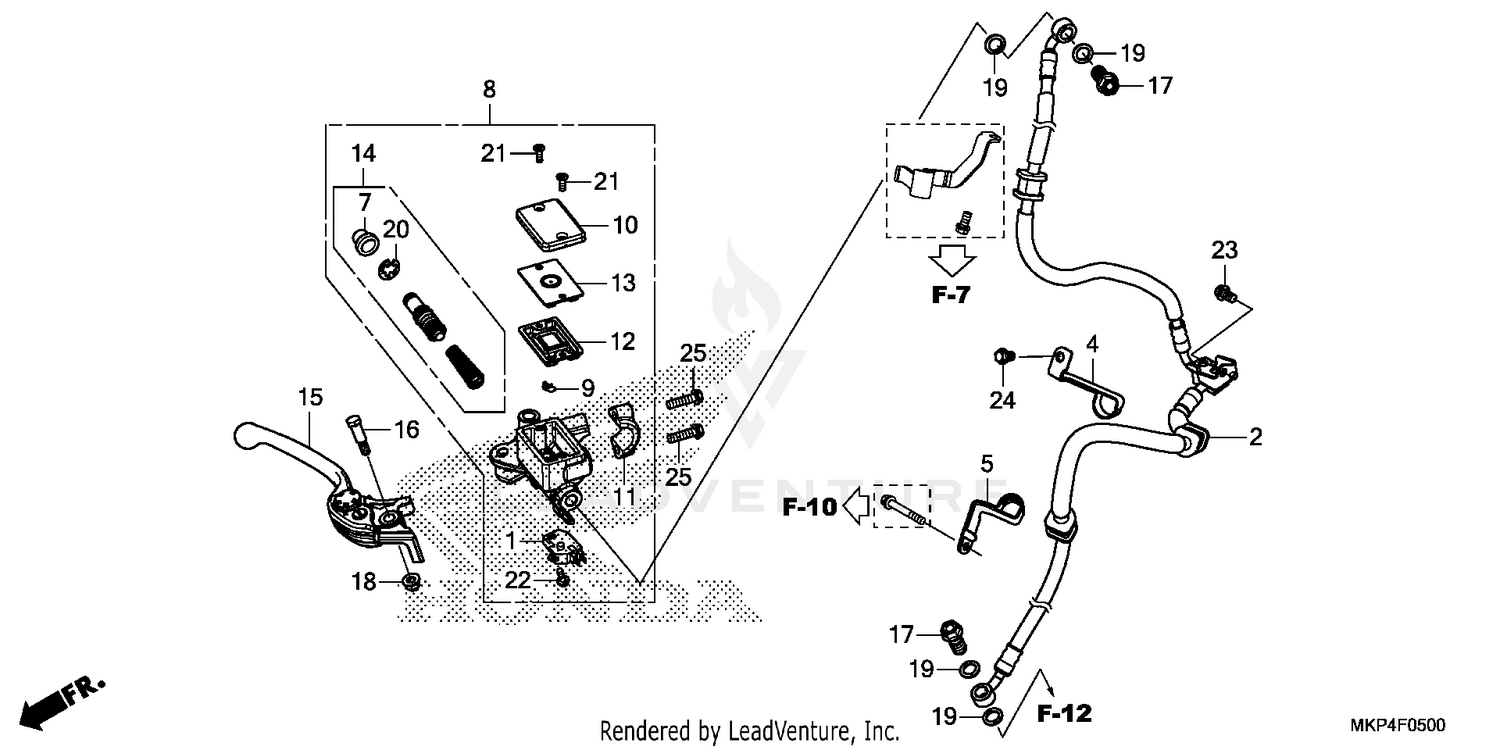

Front Brake Master Cylinder (1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH ASSY., FR. STOP
35340-MGS-D31
|
$22.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE, FR. BRAKE
45125-MKP-J91
|
$104.92 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP A, FR. BRAKE HOSE
45155-MKP-J90
|
$60.87 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP B, FR. BRAKE HOSE
45156-MKP-J90
|
$52.51 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOOT
45504-410-003
|
$14.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)
45510-MGZ-D02
Superseded by 45510-MGZ-315
|
$139.42 | ||
|
Available to order. Add to View Price |
|||
|
#8
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)
45510-MGZ-315
|
$139.42 | ||
|
Unavailable |
|||
|
#9
PROTECTOR
45512-MA6-006
|
$5.38 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, MASTER CYLINDER (COO)
45513-HR0-305
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, MASTER CYLINDER (COO)
45513-KK1-771
Superseded by 45513-HR0-305
|
$5.22 | ||
|
Unavailable |
|||
|
#11
HOLDER, MASTER CYLINDER
45517-166-006
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#12
DIAPHRAGM
45520-GE2-006
|
$11.27 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, DIAPHRAGM
45521-K21-901
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
MASTER CYLINDER SET
45530-471-831
|
$48.07 | ||
|
Available to order. Add to View Price |
|||
|
#15
LEVER ASSY., R. HANDLE
53170-MJW-J01
|
$110.25 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HANDLE LEVER PIVOT
90114-166-006
|
$8.16 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, OIL (10X22) (SAGA)
90145-MS9-612
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, CAP (6MM)
90202-KCW-870
|
$3.32 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
CIRCLIP
90651-MA5-671
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, FLAT (4X12)
93600-04012-0G
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
SCREW, FLAT (4X12)
93600-04012-1G
Superseded by 93600-04012-0G
|
$0.95 | ||
|
Unavailable |
|||
|
#22
SCREW-WASHER (4X12)
93893-04012-07
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.40 | ||
|
Unavailable |
|||
|
#23
BOLT, FLANGE (6X10)
95701-06010-07
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X10)
90013-GHB-600
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X22)
90013-GHB-660
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
