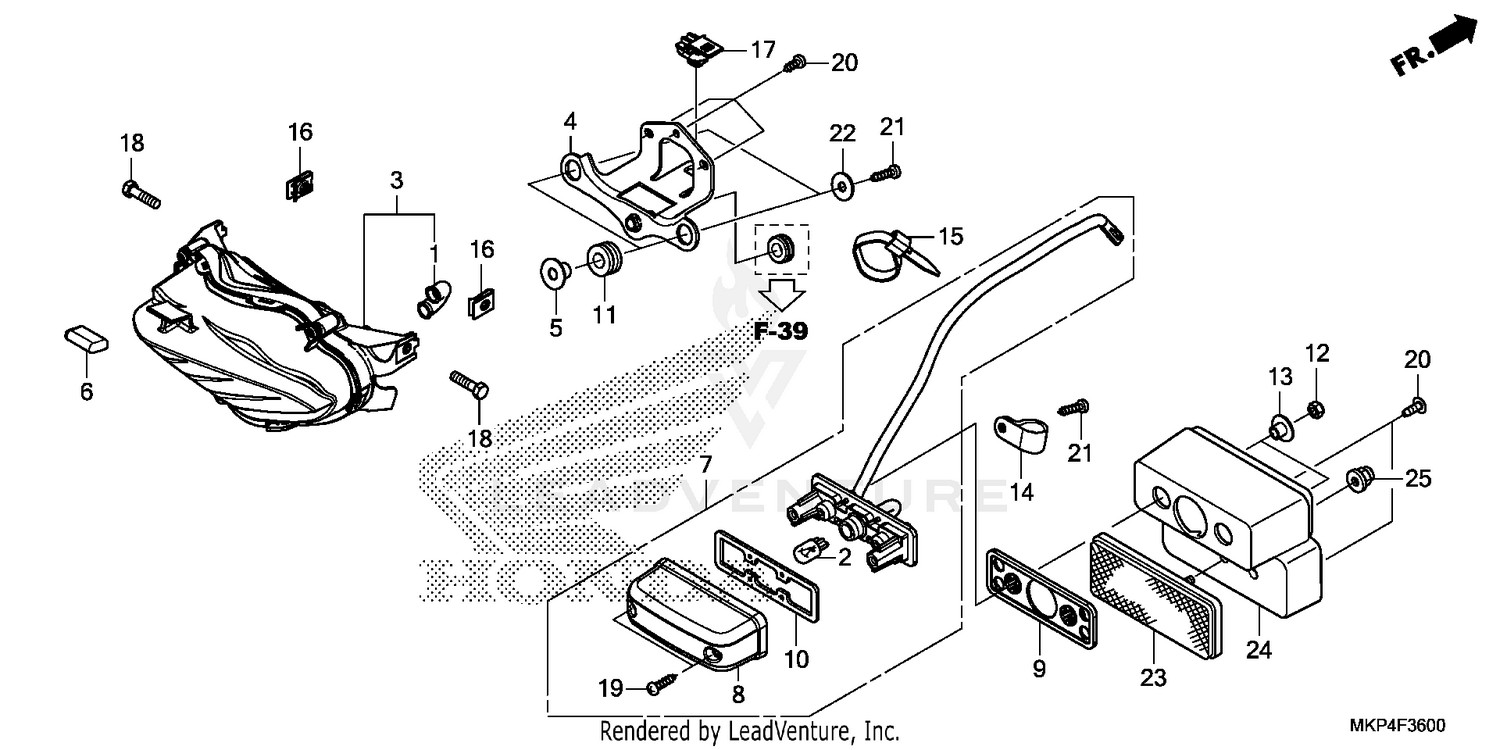

Taillight Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TUBE, VENT
33113-MJW-J80
|
$1.02 | ||
|
Available to order. Add to View Price |
|||
|
#2
BULB (12V 5W) (STANLEY)
33301-SA0-741
|
$4.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
TAILLIGHT UNIT
33701-MJW-A81
|
$283.53 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, TAILLIGHT
33702-MJW-J80
|
$7.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, TAILLIGHT
33705-MGZ-J00
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#6
SUSPENSION, TAILLIGHT
33706-MFN-D00
|
$1.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
LIGHT ASSY., LICENSE (12V 5W) (COO)
33720-MGZ-A01
Superseded by 33720-MGZ-305
|
$59.38 | ||
|
Available to order. Add to View Price |
|||
|
#7
LIGHT ASSY., LICENSE (12V 5W) (COO)
33720-MGZ-305
|
$59.38 | ||
|
Unavailable |
|||
|
#8
COVER, LICENSE (COO)
33722-KWN-901
Superseded by 33722-K26-305
|
$11.71 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, LICENSE (COO)
33722-K26-305
|
$11.71 | ||
|
Unavailable |
|||
|
#9
RUBBER, LICENSE LIGHT
33728-KPP-T00
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET, LENS
33729-MCZ-003
|
$10.82 | ||
|
Available to order. Add to View Price |
|||
|
#11
RUBBER, SIDE COVER
83545-KCJ-690
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, U (5MM)
90302-KVB-T01
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90505-MGZ-A00
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP (14MM)
90628-750-000
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#15
BAND, WIRE (BLACK)
90652-KT1-771
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, CLIP (5MM)
90677-KAN-T00
|
$0.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CLIP, CONNECTOR (DARK BROWN)
91535-TA0-003
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEX. (5X20) (USE ONLY WITH ORIGINAL OIL PUMP ASSY. P/N 15100-437-672.)
92101-05020-0A
|
$1.22 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, TAPPING (4X16)
93901-24480
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, TAPPING (4X12)
93903-24380
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, TAPPING (4X16)
93903-24420
|
$0.95 | ||
|
Unavailable |
|||
|
#22
WASHER, PLAIN (4MM)
94103-04000
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
|
#23
REFLECTOR, REFLEX
33741-KPL-902
|
$9.25 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRACKET, LICENSE LIGHT
80201-KYJ-920
|
$10.31 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, U (5MM)
90301-KWN-901
|
$0.76 | ||
|
Available to order. Add to View Price |
|||
