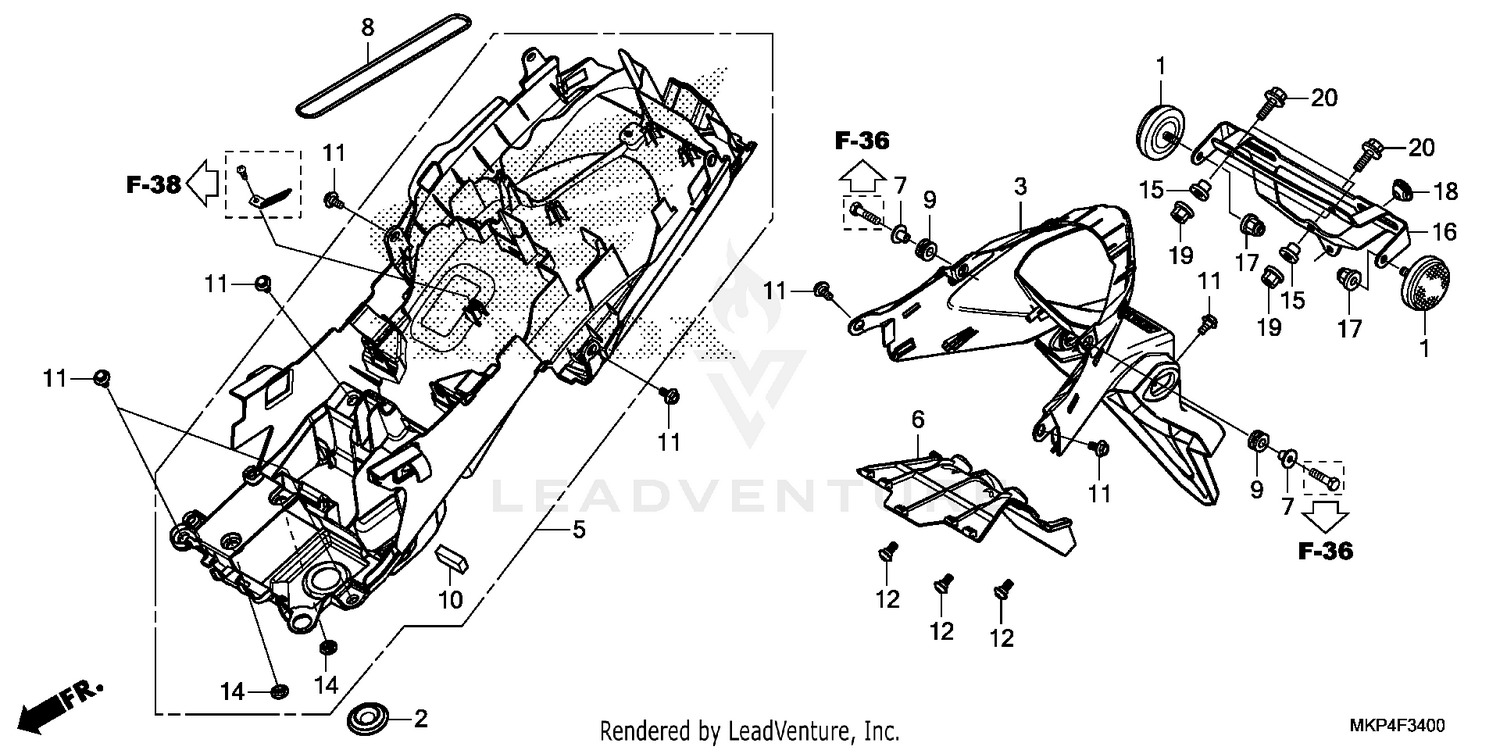

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REFLECTOR, RR. REFLEX (RED)
33741-HB9-641
|
$16.07 | ||
|
Available to order. Add to View Price |
|||
|
#2
GROMMET, PANEL (INNER)
64285-MKP-J00
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#3
FENDER SET A, RR. (TYPE1) (WL)
80100-MGZ-J01ZA
|
$16.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
FENDER ASSY. B, RR.
80104-MKP-J80
|
$44.27 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, RR. FENDER
80106-MGZ-J00
|
$8.27 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, TAILLIGHT
80113-MGZ-J00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND, TOOL
80123-KPP-900
|
$1.02 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER, SIDE COVER
83545-KCJ-690
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER, SIDE COVER SPONGE
83705-MT3-300
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6MM)
90111-187-000
|
$7.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, SPECIAL (6X14)
90115-MGZ-J00
|
$1.22 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR, MOUNTING
90503-MJE-D40
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR, FR. WHEEL COVER (FOR RR.)
44125-MN5-000
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET, NUMBER PLATE
84700-KYJ-920
|
$19.11 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, U (6MM) (FUJI SEIMITSU)
90301-KGH-901
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLUG, HOLE
90852-446-630
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, FLANGE (6MM)
94050-06000
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, FLANGE (6X14)
96001-06014-07
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
