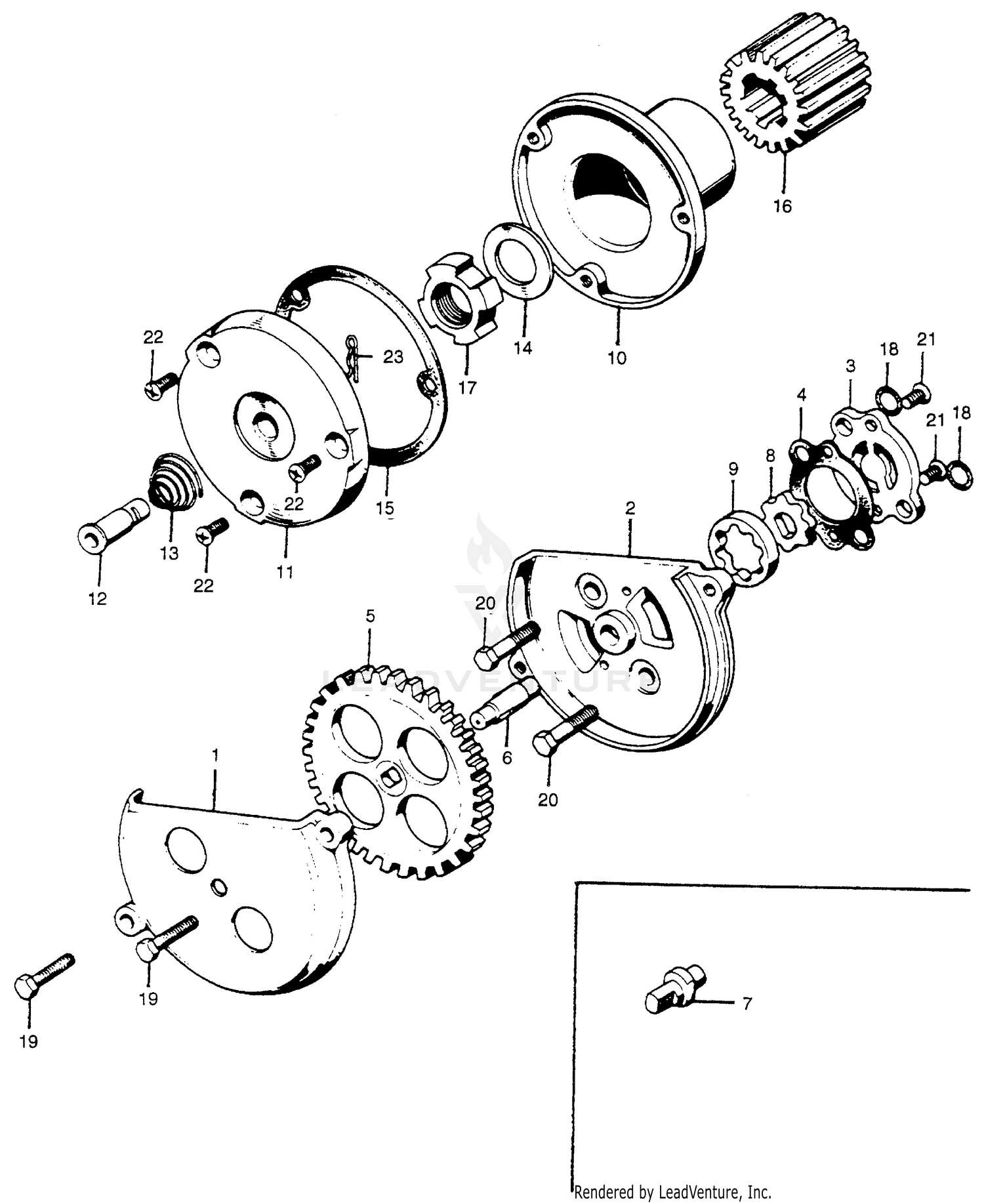

Oil Filter Rotor + Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, OIL PUMP GEAR (NOT AVAILABLE)
15106-107-000
|
$24.77 | ||
|
Available to order. Add to View Price |
|||
|
#2
BODY, OIL PUMP (NOT AVAILABLE)
15111-107-010
|
$48.37 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE, OIL PUMP
15116-107-020
|
$16.44 | ||
|
Unavailable |
|||
|
#4
GASKET, OIL PUMP
15126-107-020
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, OIL PUMP DRIVE (NOT AVAILABLE)
15131-107-010
|
$52.42 | ||
|
Unavailable |
|||
|
#6
SHAFT, OIL PUMP (NOT AVAILABLE)
15136-107-000
|
$18.80 | ||
|
Unavailable |
|||
|
#8
ROTOR, OIL PUMP (INNER)
15331-107-000
|
$6.28 | ||
|
Available to order. Add to View Price |
|||
|
#9
ROTOR, OIL PUMP (OUTER)
15332-107-000
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROTOR, OIL FILTER
15430-107-000
Superseded by 15430-324-000
|
$33.85 | ||
|
Unavailable |
|||
|
#10
ROTOR, OIL FILTER
15430-324-000
|
$33.85 | ||
|
Unavailable |
|||
|
#11
CAP, OIL FILTER ROTOR
15436-107-000
|
$45.13 | ||
|
Available to order. Add to View Price |
|||
|
#12
THROUGH, OIL
15441-KCS-650
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#12
THROUGH, OIL
15441-107-000
Superseded by 15441-KCS-650
|
$7.73 | ||
|
Unavailable |
|||
|
#13
SPRING, OIL THROUGH
15446-107-000
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, OIL FILTER ROTOR LOCKING
15451-107-000
|
$5.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
GSKT, OIL FILTER CAP
15459-KT0-710
Superseded by 15459-K70-630
|
$4.34 | ||
|
Available to order. Add to View Price |
|||
|
#15
GSKT, OIL FILTER CAP
15459-107-000
Superseded by 15459-K70-630
|
$4.34 | ||
|
Unavailable |
|||
|
#15
GSKT, OIL FILTER CAP
15459-107-306
Superseded by 15459-K70-630
|
$4.34 | ||
|
Unavailable |
|||
|
#16
GEAR, PRIMARY DRIVE (18T) (NOT AVAILABLE)
23121-107-000
Superseded by 23121-324-000
|
$78.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, PRIMARY DRIVE (18T) (NOT AVAILABLE)
23121-324-000
|
$78.30 | ||
|
Unavailable |
|||
|
#17
NUT, LOCK (16MM)
90231-107-000
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING (9.4X2.4)
91304-KK3-830
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING (9.4X2.4)
91304-107-000
Superseded by 91304-KK3-830
|
$2.53 | ||
|
Unavailable |
|||
|
#19
BOLT, HEX. (5X20)
92000-05020-0A
Superseded by 92101-05020-0A
|
$1.22 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEX. (5X20)
92101-05020-0A
|
$1.22 | ||
|
Unavailable |
|||
|
#19
BOLT, HEX. (5X20)
92301-05020-0A
Superseded by 92101-05020-0A
|
$1.22 | ||
|
Unavailable |
|||
|
#20
BOLT, HEX. (6X20)
92000-06020
Superseded by 92101-06020-0A
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, HEX. (6X20)
92101-06020-0A
|
$1.08 | ||
|
Unavailable |
|||
|
#21
SCREW, FLAT (4X12)
93600-04012-0A
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, OVAL (5X12)
93700-05012-0A
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, LOCK (8MM)
94251-08000
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
