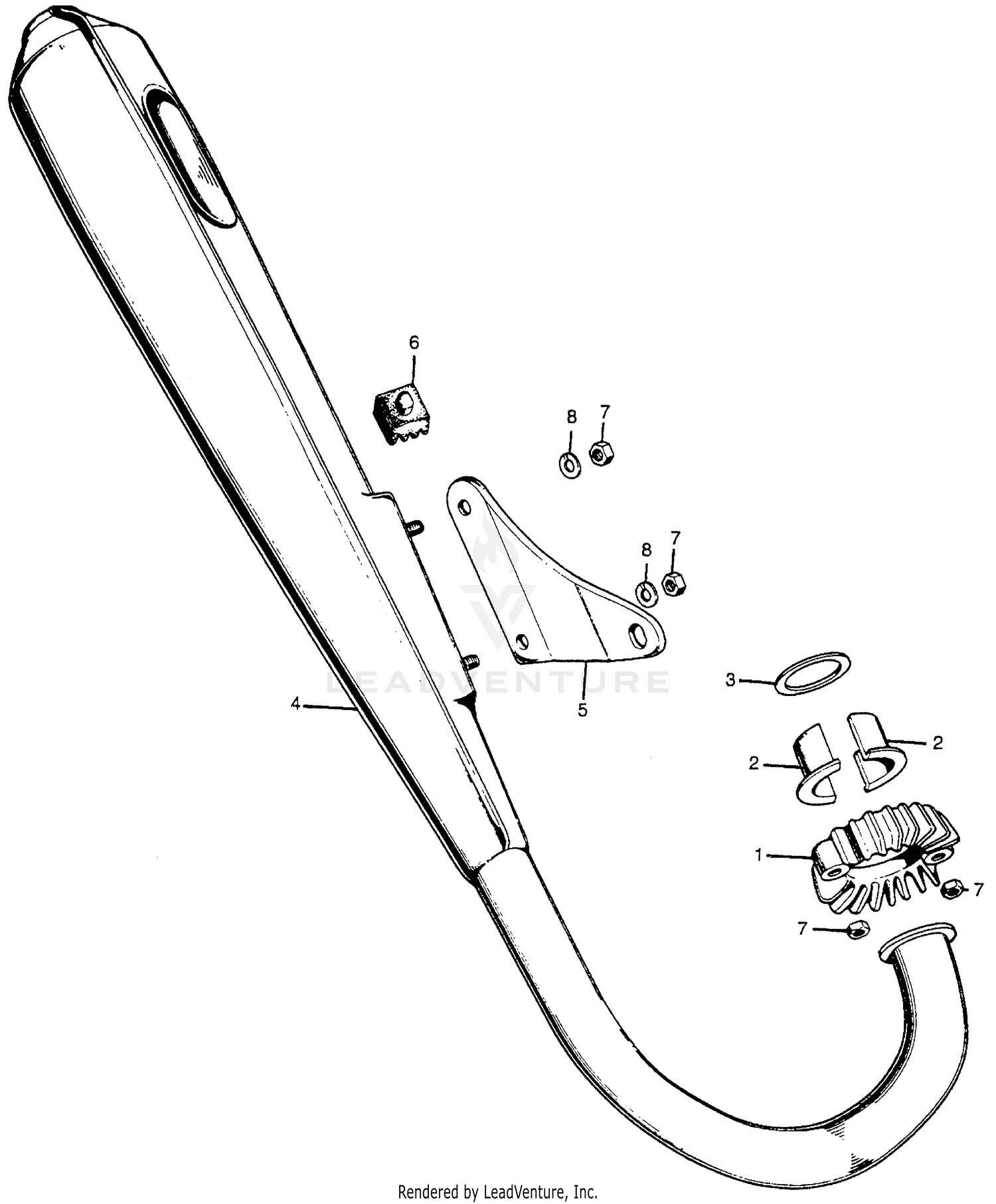

Cb Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, EX. PIPE
18231-303-000
Superseded by 18231-333-010
|
$40.69 | ||
|
Available to order. Add to View Price |
|||
|
#1
JOINT, EX. PIPE
18231-333-010
|
$40.69 | ||
|
Unavailable |
|||
|
#2
COLLAR, EX. JOINT
18233-107-000
|
$7.98 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, EX. PIPE
18291-MN5-650
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
GASKET, EX. PIPE
18291-216-000
Superseded by 18291-MN5-650
|
$4.75 | ||
|
Unavailable |
|||
|
#4
MUFFLER, EX. (NOT AVAILABLE)
18300-107-671
Superseded by 18300-107-677
|
$190.35 | ||
|
Unavailable |
|||
|
#5
BRACKET, MUFFLER *NH1* (BLACK)
18353-107-020B
Superseded by 18353-107-690B
|
$35.01 | ||
|
Unavailable |
|||
|
#5
BRACKET, MUFFLER *NH1* (BLACK)
18353-107-690B
|
$35.01 | ||
|
Unavailable |
|||
|
#6
RUBBER A, STAND STOPPER
95011-61000
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, HEX. (6MM)
90310-KA3-711
Superseded by 94001-06200-0S
|
$1.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
NUT, HEX. (6MM)
94000-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#7
NUT, HEX. (6MM)
94001-06000
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#7
NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#7
NUT, HEX. (6MM)
94001-06008-0S
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#7
NUT, HEX. (6MM)
94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#7
NUT, HEX. (6MM)
94030-06000
Superseded by 94001-06200-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#8
WASHER, SPRING (6MM)
94111-06000
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
