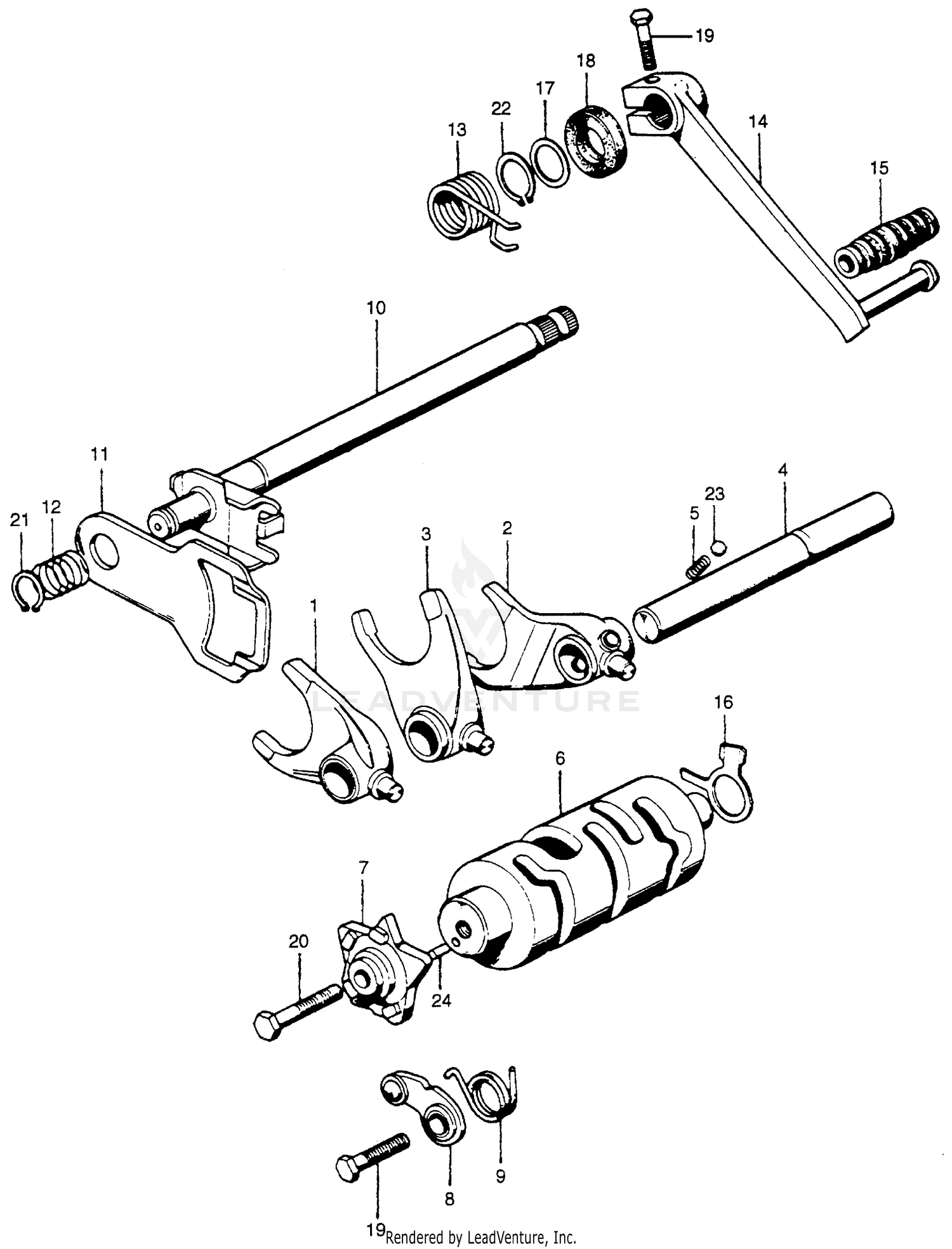

Gearshift Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK, R. GEARSHIFT
24211-107-000
|
$53.57 | ||
|
Available to order. Add to View Price |
|||
|
#2
FORK, L. GEARSHIFT
24221-107-000
|
$83.35 | ||
|
Unavailable |
|||
|
#3
FORK, CENTER GEARSHIFT
24231-107-000
Superseded by 24231-107-010
|
$54.21 | ||
|
Unavailable |
|||
|
#3
FORK, CENTER GEARSHIFT
24231-107-010
|
$54.21 | ||
|
Unavailable |
|||
|
#4
SHAFT, GEARSHIFT FORK GUIDE
24241-107-000
|
$10.28 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, BALL SETTING (NOT AVAILABLE)
24271-107-000
|
$3.69 | ||
|
Unavailable |
|||
|
#6
DRUM, GEARSHIFT (NOT AVAILABLE)
24301-107-000
|
$60.78 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAM, GEARSHIFT
24411-KCN-000
|
$34.82 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAM, GEARSHIFT
24411-107-000
Superseded by 24411-KCN-000
|
$34.82 | ||
|
Unavailable |
|||
|
#7
CAM, GEARSHIFT
24411-107-003
Superseded by 24411-KCN-000
|
$34.82 | ||
|
Unavailable |
|||
|
#7
CAM, GEARSHIFT
24411-107-013
Superseded by 24411-KCN-000
|
$34.82 | ||
|
Unavailable |
|||
|
#8
STOPPER, GEARSHIFT DRUM
24430-107-000
Superseded by 24430-324-000
|
$12.22 | ||
|
Unavailable |
|||
|
#8
STOPPER, GEARSHIFT DRUM
24430-324-000
|
$12.22 | ||
|
Unavailable |
|||
|
#9
SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)
24435-107-000
Superseded by 24435-107-761
|
$3.33 | ||
|
Unavailable |
|||
|
#9
SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)
24435-107-761
|
$3.33 | ||
|
Unavailable |
|||
|
#10
SPINDLE, GEARSHIFT
24610-107-000
Superseded by 24610-107-760
|
$51.65 | ||
|
Unavailable |
|||
|
#10
SPINDLE, GEARSHIFT
24610-107-760
|
$51.65 | ||
|
Unavailable |
|||
|
#12
SPRING, GEARSHIFT PLATE
24631-107-000
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, GEARSHIFT RETURN
24651-107-000
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#14
PEDAL, GEARSHIFT
24700-107-000
Superseded by 24701-107-700
|
$33.76 | ||
|
Unavailable |
|||
|
#14
PEDAL, GEARSHIFT
24700-107-700
Superseded by 24701-107-700
|
$33.76 | ||
|
Unavailable |
|||
|
#14
PEDAL, GEARSHIFT
24701-107-700
|
$33.76 | ||
|
Unavailable |
|||
|
#16
ROTOR, NEUTRAL SWITCH
35753-KG2-951
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#16
ROTOR, NEUTRAL SWITCH
35753-028-601
Superseded by 35753-KG2-951
|
$6.00 | ||
|
Unavailable |
|||
|
#17
WASHER, THRUST (14MM)
90451-001-000
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
OIL SEAL (14X28X7) (ARAI)
91206-286-013
|
$3.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BOLT, HEX. (6X20)
92000-06020
Superseded by 92101-06020-0A
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEX. (6X20)
92101-06020-0A
|
$1.08 | ||
|
Unavailable |
|||
|
#20
BOLT, HEX. (6X25)
92000-06025
Superseded by 92101-06025-0A
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
BOLT, HEX. (6X25)
92101-06025-0A
|
$1.70 | ||
|
Unavailable |
|||
|
#21
CIRCLIP (OUTER) (12MM)
94510-12000
|
$1.89 | ||
|
Available to order. Add to View Price |
|||
|
#22
CIRCLIP (OUTER) (14MM)
94510-14000
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#23
BALL, STEEL (#8) (1/4)
96211-08000
|
$1.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
ROLLER (4X10)
96220-40100
|
$0.56 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
