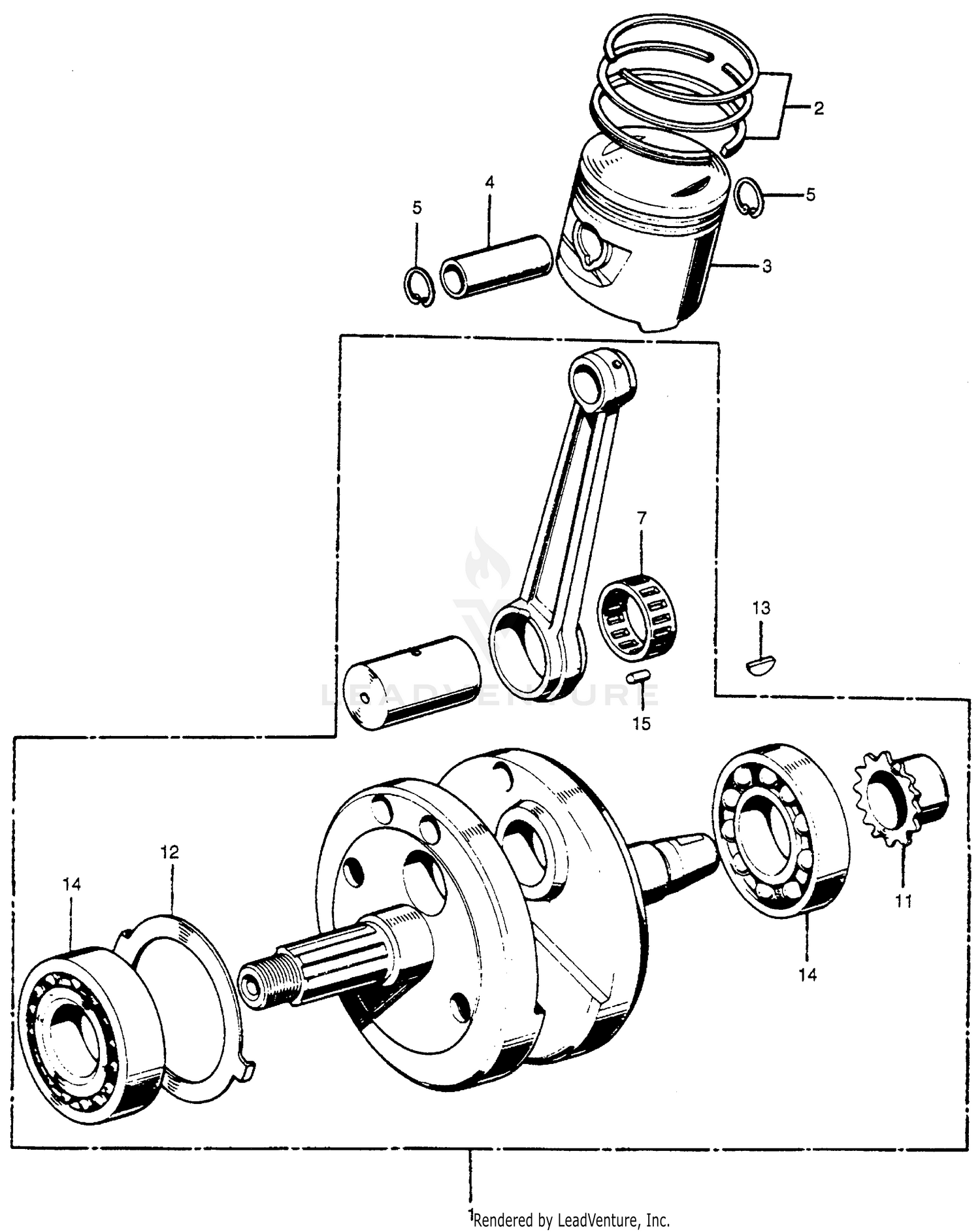

Crankshaft + Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT
13000-107-010
|
$588.65 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (STD)
13011-107-711
Superseded by 13011-107-760
|
$36.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING SET, PISTON (STD)
13011-107-760
|
$36.42 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (OS 0.25)
13021-107-711
Superseded by 13021-107-760
|
$23.92 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (OS 0.25)
13021-107-760
|
$23.92 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (OS 0.50)
13031-107-711
Superseded by 13031-107-760
|
$42.20 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (OS 0.50)
13031-107-760
|
$42.20 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (0.75)
13041-107-711
Superseded by 13041-107-760
|
$47.45 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (0.75)
13041-107-760
|
$47.45 | ||
|
Unavailable |
|||
|
#2
RING SET, PISTON (1.00) (RIKEN)
13051-107-711
|
$33.76 | ||
|
Available to order. Add to View Price |
|||
|
#2
RING SET, PISTON (1.00)
13051-107-760
|
$33.76 | ||
|
Unavailable |
|||
|
#3
PISTON (STD)
13101-107-710
Superseded by 13101-107-760
|
$85.06 | ||
|
Unavailable |
|||
|
#3
PISTON (STD)
13101-107-760
|
$85.06 | ||
|
Unavailable |
|||
|
#3
PISTON (OS 0.25) (NOT AVAILABLE)
13102-107-710
Superseded by 13102-107-760
|
$80.93 | ||
|
Unavailable |
|||
|
#3
PISTON (OS 0.25) (NOT AVAILABLE)
13102-107-760
|
$80.93 | ||
|
Unavailable |
|||
|
#3
PISTON (OS 0.50) (NOT AVAILABLE)
13103-107-710
Superseded by 13103-107-760
|
$45.72 | ||
|
Unavailable |
|||
|
#3
PISTON (OS 0.50) (NOT AVAILABLE)
13103-107-760
|
$45.72 | ||
|
Unavailable |
|||
|
#3
PISTON (0.75) (NOT AVAILABLE)
13104-107-710
Superseded by 13104-107-760
|
$49.63 | ||
|
Unavailable |
|||
|
#3
PISTON (0.75) (NOT AVAILABLE)
13104-107-760
|
$49.63 | ||
|
Unavailable |
|||
|
#3
PISTON (1.00) (NOT AVAILABLE)
13105-107-710
Superseded by 13105-107-760
|
$51.87 | ||
|
Unavailable |
|||
|
#3
PISTON (1.00) (NOT AVAILABLE)
13105-107-760
|
$51.87 | ||
|
Unavailable |
|||
|
#4
PIN, PISTON
13111-028-000
|
$13.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP, PISTON PIN
13115-200-000
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP, PISTON PIN (14MM)
94601-14000
|
$0.82 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
RETAINER, CONNECTING ROD ROLLER
13211-107-000
Superseded by 13211-121-960
|
$15.26 | ||
|
Unavailable |
|||
|
#7
RETAINER, CONNECTING ROD ROLLER
13211-121-960
|
$15.26 | ||
|
Unavailable |
|||
|
#7
RETAINER, CONNECTING ROD ROLLER
13211-354-300
Superseded by 13211-121-960
|
$15.26 | ||
|
Unavailable |
|||
|
#11
SPROCKET, TIMING (16T)
14311-107-000
Superseded by 14311-958-000
|
$49.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPROCKET, TIMING (16T)
14311-958-000
|
$49.75 | ||
|
Unavailable |
|||
|
#13
KEY, WOODRUFF
90741-253-000
|
$1.90 | ||
|
Unavailable |
|||
|
#14
BEARING, RADIAL BALL (6305)
96100-63050
Superseded by 96100-63050-00
|
$18.51 | ||
|
Unavailable |
|||
|
#14
BEARING, RADIAL BALL (6305)
96100-63050-00
|
$18.51 | ||
|
Unavailable |
|||
|
#15
ROLLER (3X10) (NOT AVAILABLE)
96220-30100
|
$0.40 | ||
|
Unavailable |
|||
|
#15
ROLLER (3X10) (NOT AVAILABLE)
96220-30100
|
$0.40 | ||
|
Unavailable |
|||
