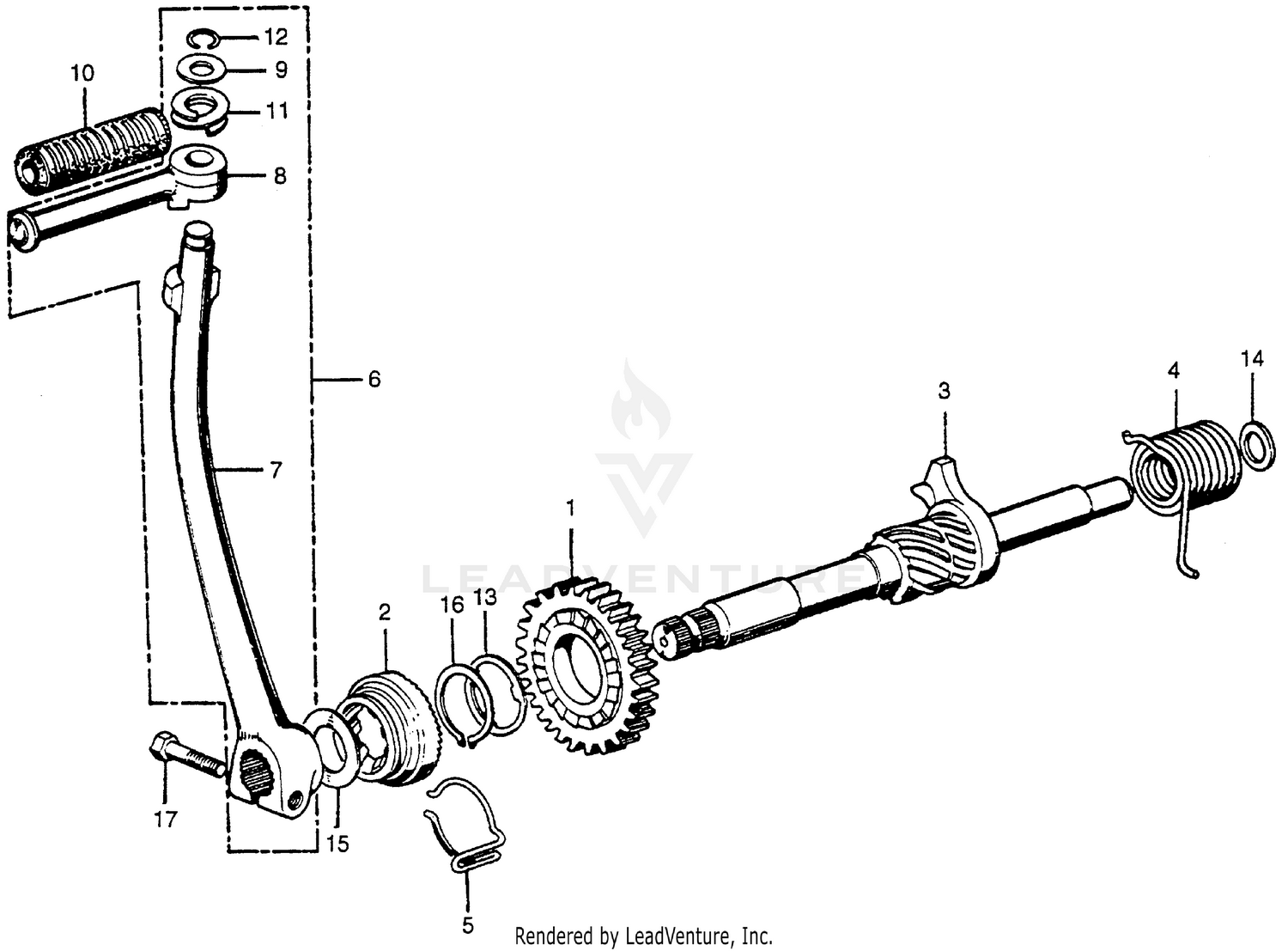

Kick Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PINION, KICK STARTER (30T)
28211-107-000
|
$69.42 | ||
|
Unavailable |
|||
|
#1
PINION, KICK STARTER (29T)
28211-383-000
|
$45.60 | ||
|
Unavailable |
|||
|
#2
RATCHET, KICK STARTER DRIVE
28221-107-010
|
$33.66 | ||
|
Unavailable |
|||
|
#3
SPINDLE, KICK STARTER (NOT AVAILABLE)
28250-107-303
|
$58.18 | ||
|
Unavailable |
|||
|
#4
SPRING, KICK STARTER
28261-107-000
|
$7.68 | ||
|
Unavailable |
|||
|
#5
SPRING, STARTER PINION FRICTION (NOT AVAILABLE)
28271-107-000
|
$2.10 | ||
|
Unavailable |
|||
|
#6
ARM ASSY., KICK STARTER (NOT AVAILABLE)
28300-107-010
|
$164.40 | ||
|
Unavailable |
|||
|
#7
ARM, KICK STARTER (NOT AVAILABLE)
28301-107-010
|
$118.78 | ||
|
Unavailable |
|||
|
#8
PEDAL, KICK STARTER
28302-001-000
Superseded by 28302-126-770
|
$21.18 | ||
|
Unavailable |
|||
|
#8
PEDAL, KICK STARTER
28302-126-770
|
$21.18 | ||
|
Unavailable |
|||
|
#9
WASHER, KICK STARTER KNUCKLE
28303-001-000
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER A, KICK STARTER
28311-001-000
Superseded by 95011-51000
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER A, KICK STARTER
95011-51000
|
$4.64 | ||
|
Unavailable |
|||
|
#11
SPRING, KICK STARTER KNUCKLE
28322-001-000
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP, KICK STARTER KNUCKLE
28324-001-000
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, THRUST (25MM) (NOT AVAILABLE)
90458-107-000
|
$1.22 | ||
|
Unavailable |
|||
|
#14
WASHER, THRUST (12MM)
90459-107-000
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, THRUST (16MM)
90462-107-000
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP, SPECIAL (23MM)
90601-035-000
Superseded by 90601-727-000
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
CIRCLIP, SPECIAL (23MM)
90601-727-000
|
$2.05 | ||
|
Unavailable |
|||
|
#17
BOLT, HEX. (6X20)
92000-06020
Superseded by 92101-06020-0A
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEX. (6X20)
92101-06020-0A
|
$1.08 | ||
|
Unavailable |
|||
