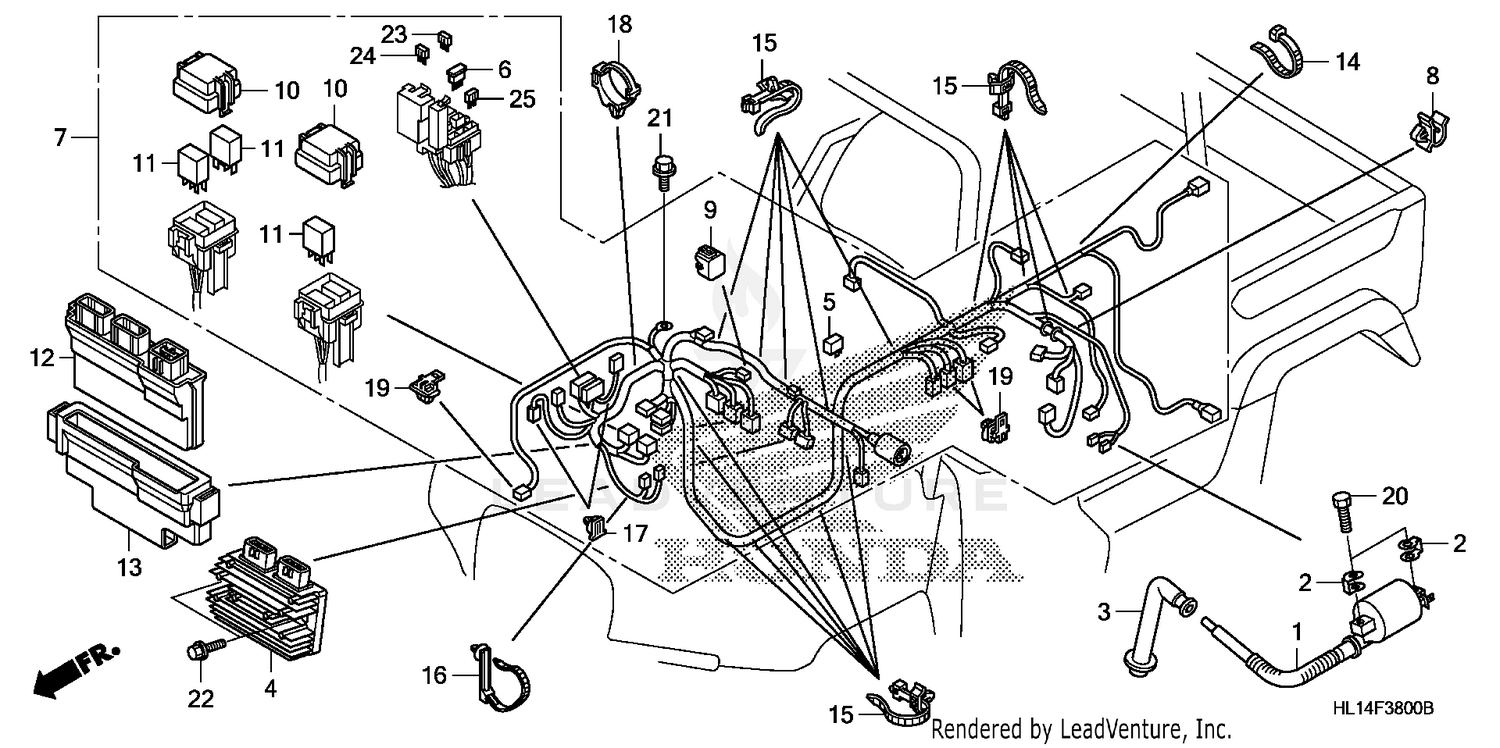

Wire Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COIL, IGNITION
30510-HL1-A01
|
$87.93 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPACER, IGNITION COIL
30520-ML7-000
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP ASSY., NOISE SUPPRESSOR
30700-HL1-A21
|
$55.82 | ||
|
Available to order. Add to View Price |
|||
|
#4
RECTIFIER ASSY., REGULATOR
31600-HP5-601
|
$104.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
RECTIFIER ASSY., SILICON (SHINDENGEN)
31700-124-008
|
$36.00 | ||
|
Available to order. Add to View Price |
|||
|
#6
DIODE ASSY., THREE WAY (SUMITOMO)
31730-MAS-601
|
$13.09 | ||
|
Available to order. Add to View Price |
|||
|
#7
WIRE HARNESS
32100-HL1-A20
|
$463.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP, WIRE HARNESS
32171-GJ1-003
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, DUMMY (4P) (RED)
32606-GEV-761
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, RELAY BLOCK (UPPER) (2P)
38182-SDA-003
|
$6.37 | ||
|
Available to order. Add to View Price |
|||
|
#11
RELAY, POWER (MICRO ISO 4P)
38501-MCS-G01
|
$13.04 | ||
|
Available to order. Add to View Price |
|||
|
#12
PGM-FI UNIT
38770-HL1-A01
|
$1,423.69 | ||
|
Available to order. Add to View Price |
|||
|
#13
CUSHION, PGM-FI UNIT
38771-HP5-600
|
$13.96 | ||
|
Available to order. Add to View Price |
|||
|
#14
BAND, WIRE HARNESS
90620-SB2-003
|
$27.07 | ||
|
Available to order. Add to View Price |
|||
|
#15
BAND, WIRE HARNESS (150MM) (NATURAL)
90649-SC2-003
|
$7.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
BAND, HARNESS OFFSET (30) (145MM) (DARK GRAY)
32133-SLA-003
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP, CONNECTOR (RED)
91555-SM4-003
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP, WIRE HARNESS (BLACK)
91556-SK7-003
|
$6.83 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP, CONNECTOR (BLACK)
91565-SEL-003
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, HEX. (6X20)
92101-06020-4J
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (6X12)
95701-06012-00
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#23
FUSE, MINI (10A)
98200-41000
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#24
FUSE, MINI (15A)
98200-41500
|
$1.27 | ||
|
Unavailable |
|||
|
#25
FUSE, MINI (30A)
98200-43000
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
