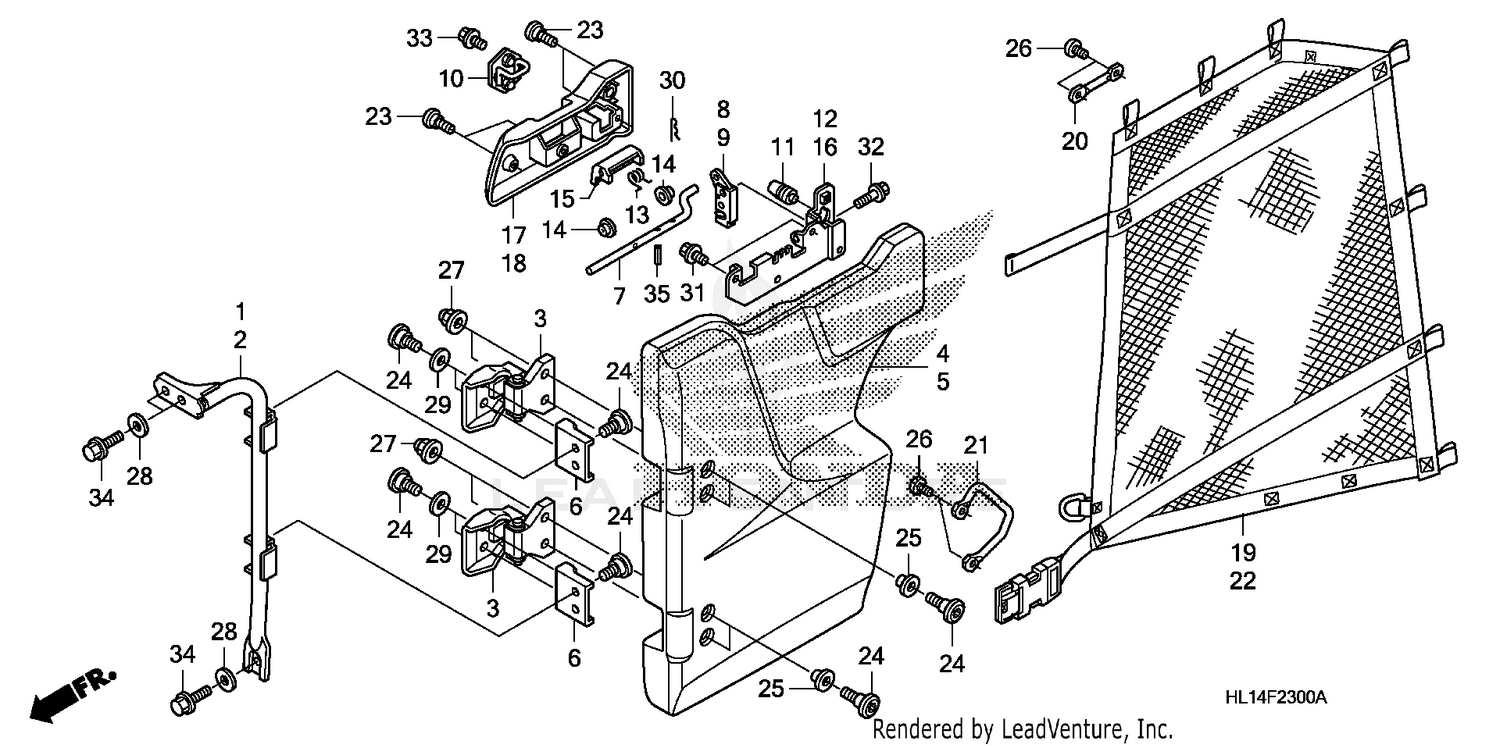

Door Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, R. HINGE
67110-HL1-A20
|
$147.18 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIPE, L. HINGE
67120-HL1-A20
|
$147.18 | ||
|
Available to order. Add to View Price |
|||
|
#3
HINGE
67150-HL1-A01
|
$96.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
DOOR, R. *NH1* (BLACK)
67205-HL1-A00ZA
|
$179.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
DOOR, L. *NH1* (BLACK)
67215-HL1-A00ZA
|
$188.07 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, HINGE
67225-HL1-A00
|
$26.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
LEVER, DOOR
67230-HL1-A00
|
$38.11 | ||
|
Available to order. Add to View Price |
|||
|
#8
LATCH, R. DOOR
67236-HL1-A01
|
$18.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
LATCH, L. DOOR
67237-HL1-A01
|
$18.58 | ||
|
Available to order. Add to View Price |
|||
|
#10
STRIKER, DOOR
67238-HL1-A00
|
$25.96 | ||
|
Available to order. Add to View Price |
|||
|
#11
STOPPER, DOOR
67239-HL1-A00
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, R. DOOR LEVER
67240-HL1-A00
|
$127.93 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, DOOR LEVER
67241-HL1-A00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
BUSH, FLANGE (6MM)
67243-HL1-A00
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#15
HANDLE, DOOR *NH1* (BLACK)
67244-HL1-A00ZA
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE, L. DOOR LEVER
67250-HL1-A00
|
$134.53 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, R. DOOR *NH1* (BLACK)
67251-HL1-A00ZA
|
$13.07 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, L. DOOR *NH1* (BLACK)
67252-HL1-A00ZA
|
$13.07 | ||
|
Available to order. Add to View Price |
|||
|
#19
NET ASSY., R. SIDE
67310-HL1-A50
|
$84.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
WIRE, SIDE NET
67317-HL1-A00
|
$15.64 | ||
|
Available to order. Add to View Price |
|||
|
#21
WIRE, SIDE NET BUCKLE
67319-HL1-A00
|
$23.16 | ||
|
Available to order. Add to View Price |
|||
|
#22
NET ASSY., L. SIDE
67320-HL1-A50
|
$84.62 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, SPLASH GUARD
90103-HC4-770
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, HINGE (8X24)
90104-HL1-A00
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR, DOOR
90105-HL1-A00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, SOCKET (6X10)
90106-HL1-A00
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, CAP (8MM)
90322-S10-003
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLAIN (8MM)
94102-08700
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLAIN (10MM)
94102-10700
|
$1.22 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIN, LOCK (6MM)
94251-06000
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X10)
95701-06010-08
|
$1.68 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X10)
95801-06010-08
Superseded by 95701-06010-08
|
$1.68 | ||
|
Unavailable |
|||
|
#32
BOLT, FLANGE (6X20)
95701-06020-08
|
$0.40 | ||
|
Unavailable |
|||
|
#32
BOLT, FLANGE (6X20)
95801-06020-08
Superseded by 95701-06020-08
|
$0.40 | ||
|
Unavailable |
|||
|
#33
BOLT, FLANGE (8X12)
95701-08012-07
|
$1.88 | ||
|
Unavailable |
|||
|
#33
BOLT, FLANGE (8X12)
95801-08012-07
Superseded by 95701-08012-07
|
$1.88 | ||
|
Unavailable |
|||
|
#34
BOLT, FLANGE (8X20)
95701-08020-08
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE (8X20)
95801-08020-08
Superseded by 95701-08020-08
|
$1.66 | ||
|
Unavailable |
|||
|
#35
ROLLER (2.5X15.8)
96220-25158
|
$0.42 | ||
|
Available to order. Add to View Price |
|||
