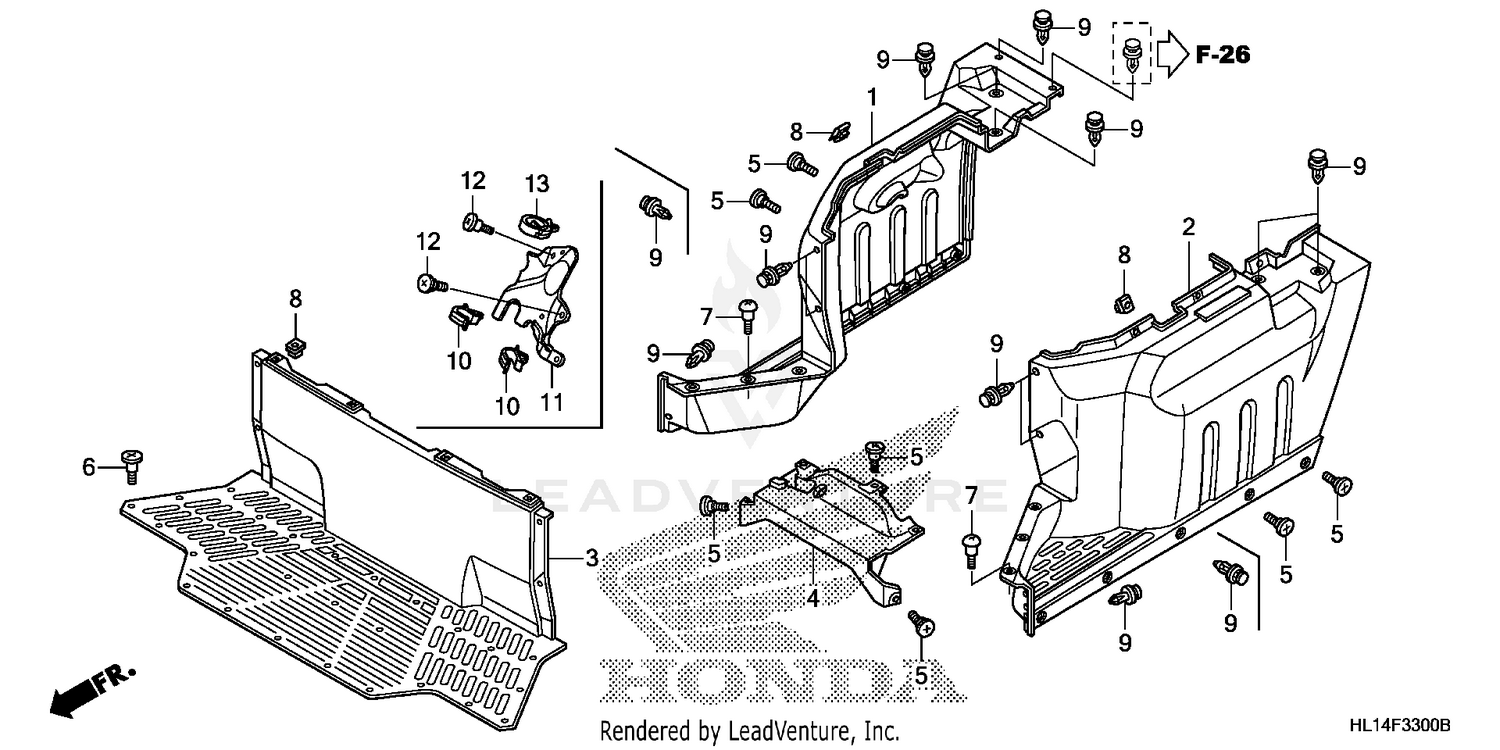

Middle Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, R. MIDDLE *NH1* (BLACK)
71110-HL1-A00ZA
|
$259.36 | ||
|
Available to order. Add to View Price |
|||
|
#2
FENDER, L. MIDDLE *NH1* (BLACK)
71120-HL1-A50ZA
|
$287.33 | ||
|
Available to order. Add to View Price |
|||
|
#3
FENDER, CENTER *NH1* (BLACK)
71131-HL1-A50ZA
|
$326.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, SPLASH GUARD
90103-HC4-770
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, SPECIAL (6MM)
90103-HF1-670
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, SPECIAL (6X10)
90165-MV9-000
|
$6.27 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, AIR SPOILER CLIP
90305-SH3-000
|
$8.13 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, AIR SPOILER CLIP
90323-SE0-000
Superseded by 90305-SH3-000
|
$8.13 | ||
|
Unavailable |
|||
|
#8
NUT, AIR SPOILER CLIP
90323-SE1-000
Superseded by 90305-SH3-000
|
$8.13 | ||
|
Unavailable |
|||
|
#9
CLIP, SPLASH GUARD
90653-HC4-900
|
$0.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CLIP, WIRE HARNESS
32171-GJ1-003
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, HEAT GUARD
71137-HL1-A50
|
$12.78 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, SPLASH GUARD
90103-HC4-770
|
$2.55 | ||
|
Unavailable |
|||
|
#13
CLIP, WIRE HARNESS (BLACK)
91558-SD5-003
|
$9.50 | ||
|
Available to order. Add to View Price |
|||
