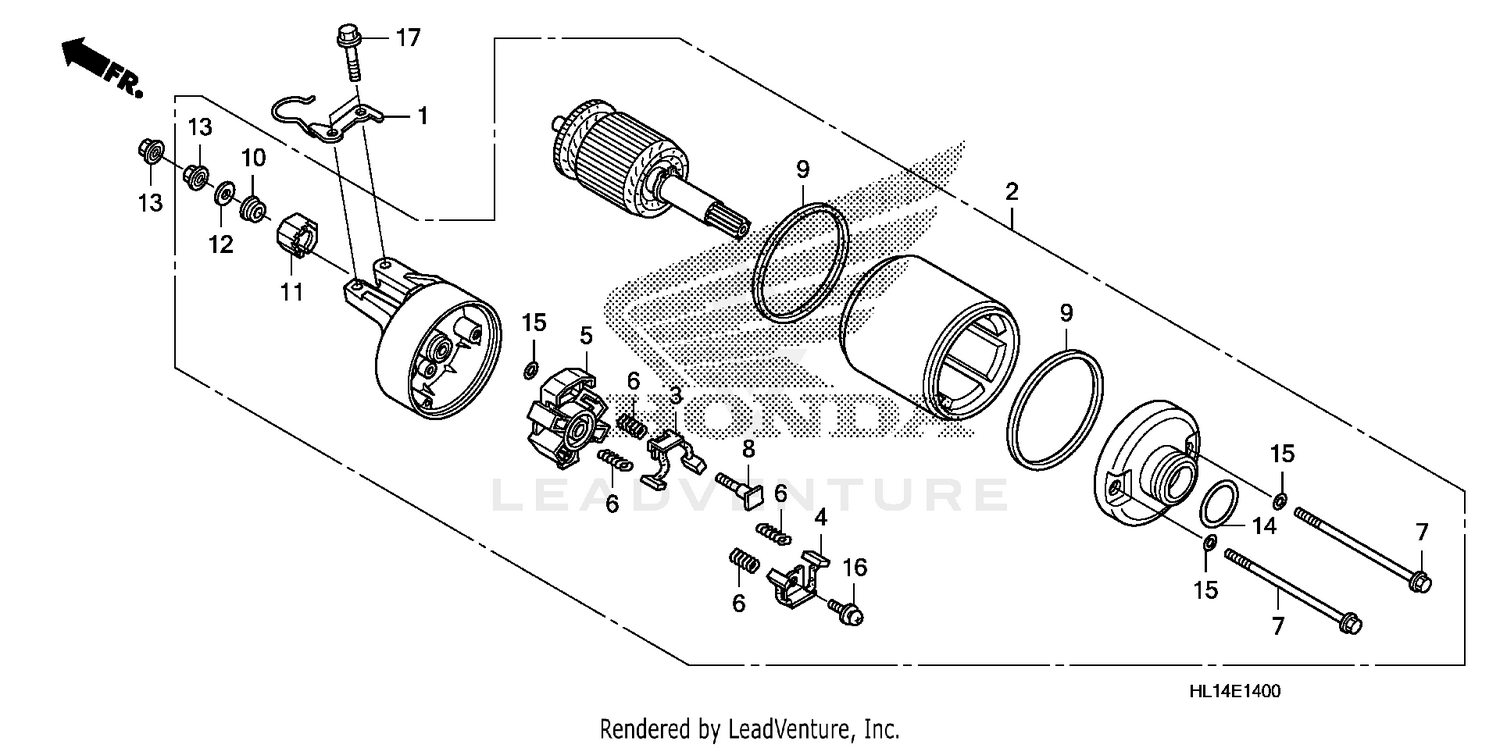

Starter Motor (1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, HOSE
19315-HN8-A60
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#2
STARTER MOTOR ASSY.
06311-HL1-305
|
$615.22 | ||
|
Available to order. Add to View Price |
|||
|
#2
STARTER MOTOR ASSY.
31200-HL1-A01
Superseded by 06311-HL1-305
|
$615.22 | ||
|
Unavailable |
|||
|
#3
BRUSH SET A, CARBON
31201-MEW-921
|
$9.78 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRUSH SET B, CARBON
31202-MEW-921
|
$15.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOLDER, BRUSH
31203-MEW-921
|
$9.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, CARBON BRUSH
31204-MEW-921
|
$15.30 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, SETTING
31205-MEW-921
|
$11.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, TERMINAL
31206-MEW-921
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING
31207-KS5-901
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#10
INSULATOR
31208-MEW-921
|
$8.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
STOPPER, TERMINAL
31209-MEW-921
|
$12.98 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER
31210-MEW-921
|
$2.07 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT-WASHER (6MM)
90071-MB0-000
|
$2.36 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING (24.4X3.1)
91309-425-003
Superseded by 91312-MG7-003
|
$7.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
O-RING (24.4X3.1)
91312-MG7-003
|
$7.98 | ||
|
Unavailable |
|||
|
#15
O-RING (4X2)
91320-MB0-000
|
$2.76 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SCREW-WASHER (5X12)
93892-05012-08
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X25)
95801-06025-00
|
$1.24 | ||
|
Available to order. Add to View Price |
|||
