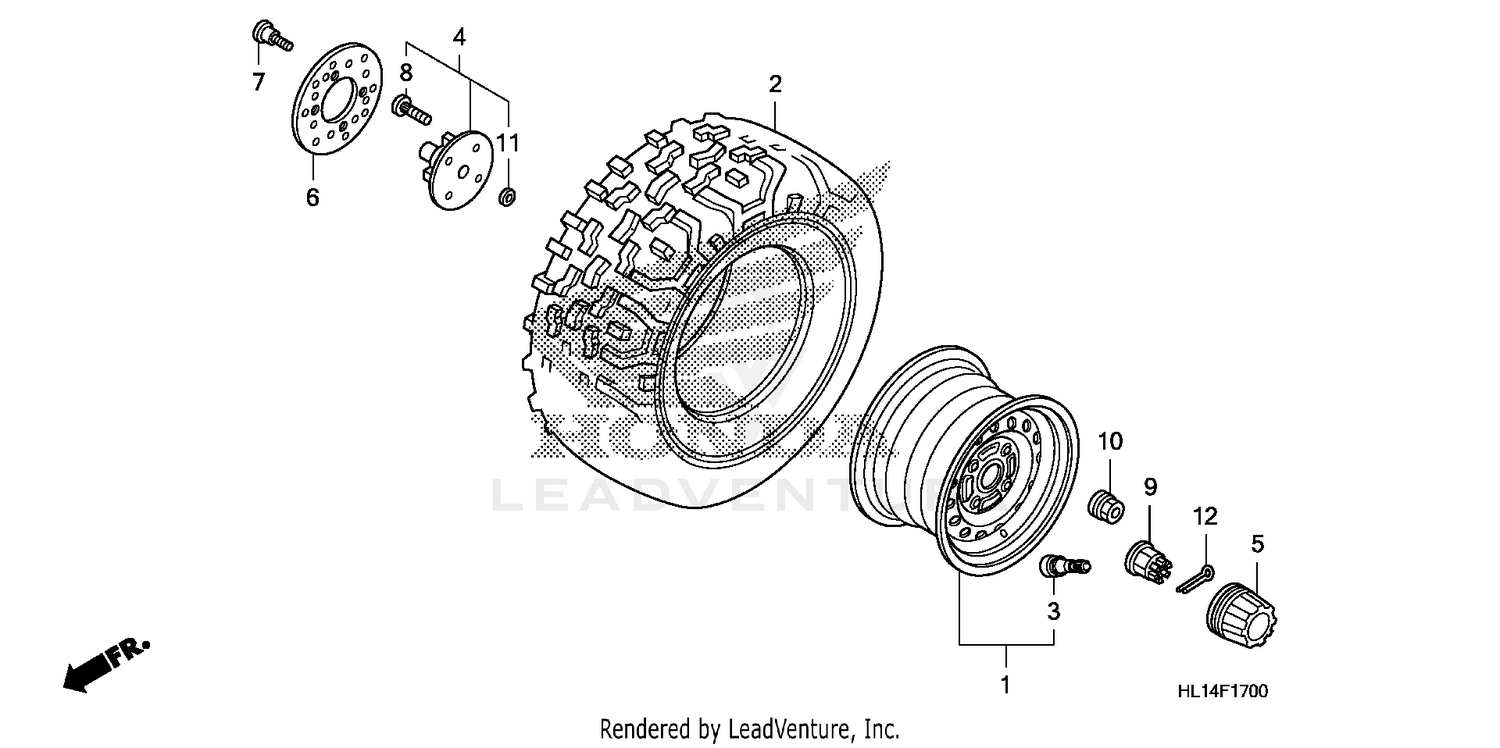

Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL SUB-ASSY.
42650-HL1-A50
|
$83.47 | ||
|
Available to order. Add to View Price |
|||
|
#2
TIRE (25X10.00-12NHS) (CHENG SHIN) (MUST BUY 2 TO REPLACE REAR TI RES AS A SET. PIB# MPB 13897)
42711-HL1-A51
|
$183.78 | ||
|
Available to order. Add to View Price |
|||
|
#3
VALVE, RIM (TR412)
42753-HF1-670
Superseded by 42753-HL3-A00
|
$6.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
HUB SUB-ASSY., WHEEL
44615-HL1-A00
|
$368.69 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, WHEEL CENTER
44732-HL1-A00
|
$16.47 | ||
|
Available to order. Add to View Price |
|||
|
#6
DISK, BRAKE
45251-HL1-A01
|
$134.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FR. DISK (8X24) (SAGA)
90105-KL8-741
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FR. DISK (8X24)
90105-KR3-000
|
$7.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, DISK (8X24) (TSUKIBOSHI)
90105-MBB-000
Superseded by 90105-MV9-003
|
$7.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, DISK (8X24) (TSUKIBOSHI)
90105-MV9-003
|
$7.80 | ||
|
Unavailable |
|||
|
#8
BOLT, WHEEL (ROCKNEL FASTENER)
90113-SA0-006
Superseded by 90113-SM1-005
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, AXLE (20MM)
90304-HM7-A10
|
$14.18 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, WHEEL (FUSE RASHI)
90304-SC2-000
|
$12.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
DUST SEAL (22X26.5X11)
91263-HN8-003
|
$6.18 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, SPLIT (4.0X30)
94201-40300
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
