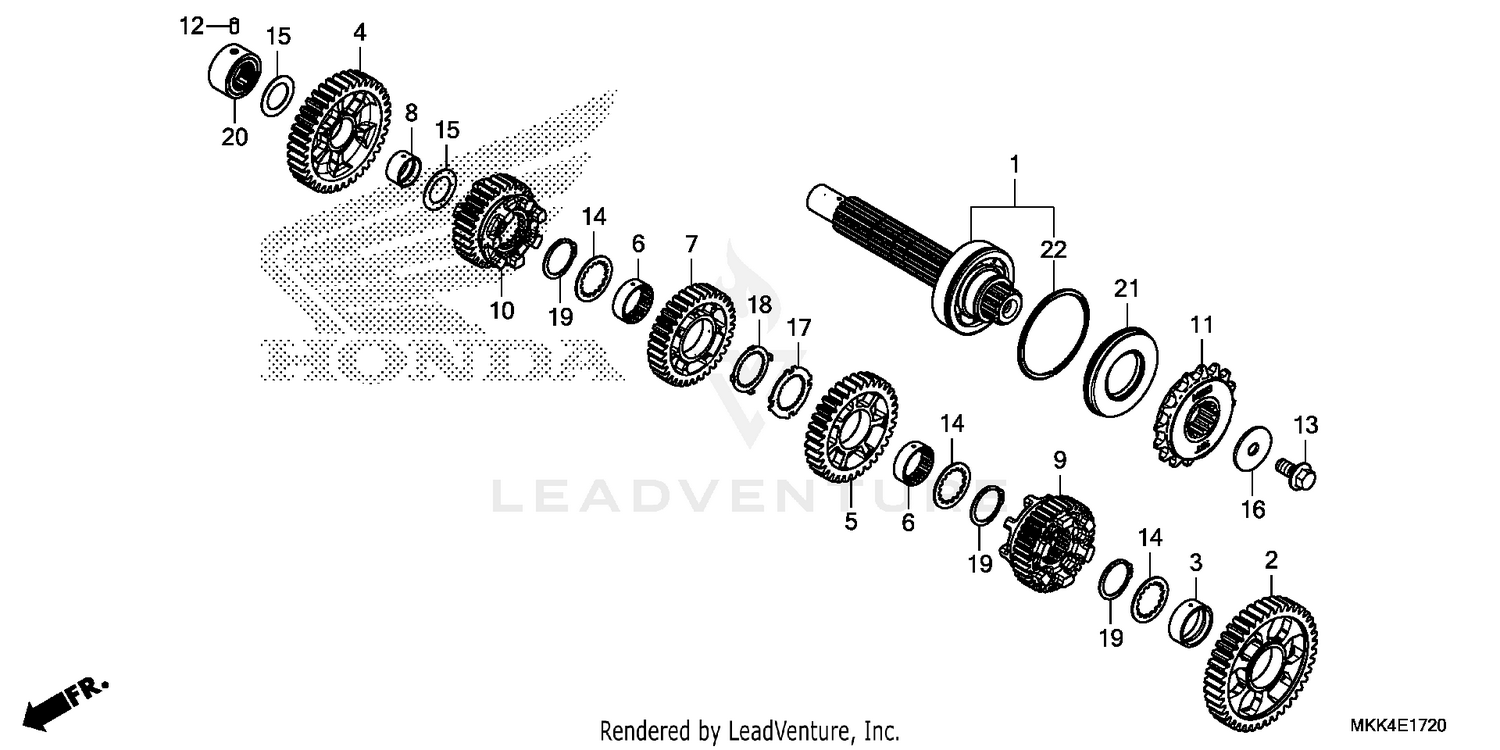

Transmission (countershaft) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COUNTERSHAFT
23220-MJP-G80
|
$207.13 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, COUNTERSHAFT FIRST (41T)
23421-MJP-G80
|
$140.13 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR (30X35X13)
23422-HL4-000
|
$20.25 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, COUNTERSHAFT SECOND (37T)
23441-MJP-G80
|
$133.93 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, COUNTERSHAFT THIRD (33T)
23461-MJP-G80
|
$128.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR, SPLINE (30X11)
23462-MAT-000
|
$26.27 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, COUNTERSHAFT FOURTH (34T)
23481-MJP-G80
|
$128.82 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR (22X13)
23495-KY1-000
|
$23.87 | ||
|
Available to order. Add to View Price |
|||
|
#9
GEAR, COUNTERSHAFT FIFTH (36T)
23501-MJP-G80
|
$149.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, COUNTERSHAFT SIXTH (30T)
23521-MJP-G80
|
$144.31 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPROCKET, DRIVE (16T)
23801-MEE-D00
|
$69.96 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, GEARSHIFT FORK GUIDE
24261-283-000
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, SPECIAL (10MM)
90037-422-003
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPLINE (30X38X1.5)
90452-HL4-000
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER B, THRUST (22MM) (BLUE)
90455-ML7-000
|
$6.11 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER (10.2MM)
90459-438-000
|
$7.33 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPLINE (30MM)
90463-MAT-000
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, LOCK (30MM)
90464-MAT-000
|
$7.67 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP (30MM)
90604-MM5-000
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING, NEEDLE (22MM)
91023-MM5-641
|
$32.76 | ||
|
Available to order. Add to View Price |
|||
|
#21
OIL SEAL (39X72X8)
91207-MBB-003
Superseded by 91207-MBB-013
|
$15.53 | ||
|
Available to order. Add to View Price |
|||
|
#22
RING, SNAP (72MM)
94560-72200
|
$3.92 | ||
|
Available to order. Add to View Price |
|||
