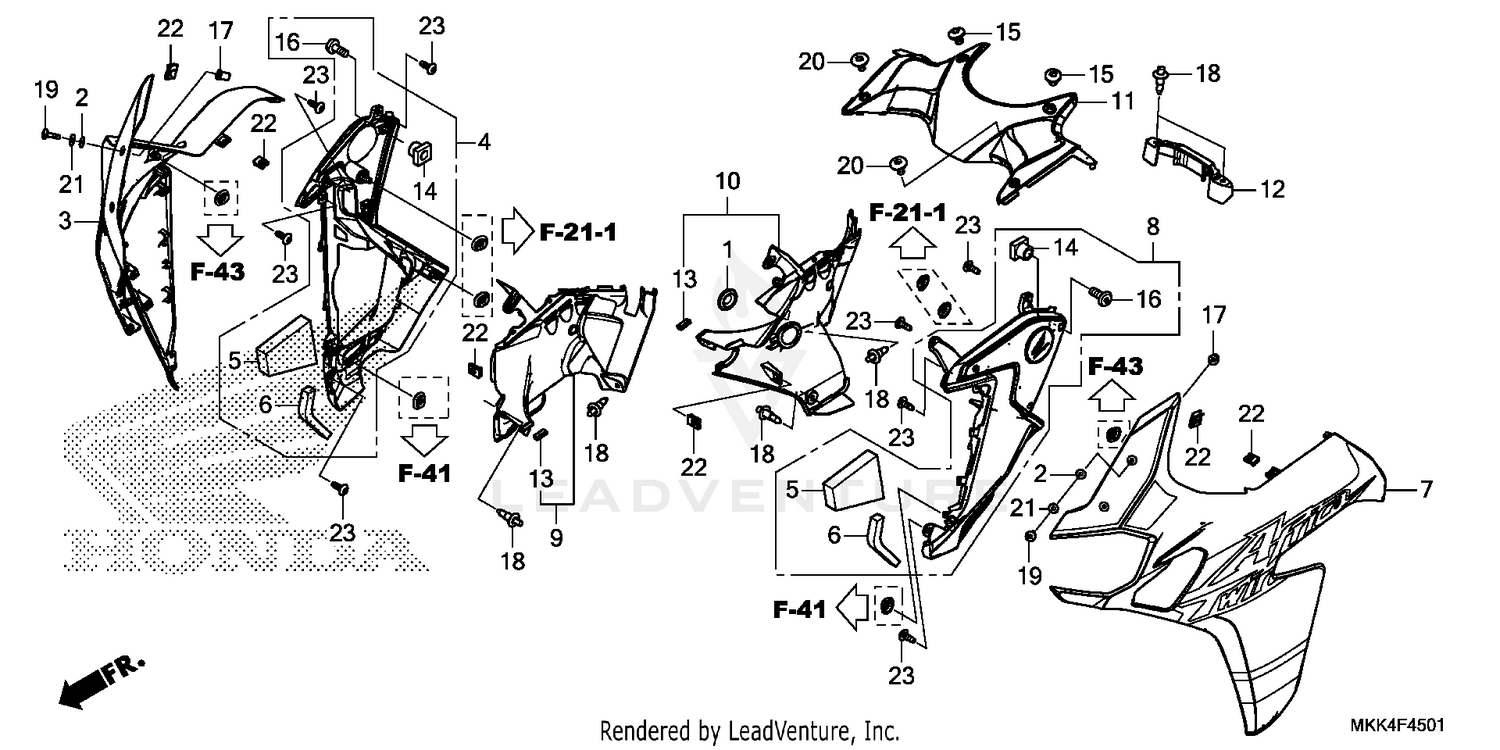

Middle Cowl (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GROMMET, AUDIO BOX
39119-MJG-640
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER, SCREEN SETTING
64205-166-610
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
COWL SET, R. (TYPE1)
64310-MKK-D20ZA
|
$559.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER SET, R. FR. SI
64320-MKK-D20
|
$155.38 | ||
|
Available to order. Add to View Price |
|||
|
#5
MAT A, FR. SIDE COWL
64322-MKK-D20
|
$6.13 | ||
|
Available to order. Add to View Price |
|||
|
#6
MAT B, FR. SIDE COWL
64323-MKK-D20
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
COWL SET, L. (TYPE1)
64360-MKK-D20ZA
|
$559.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER SET, L. FR. SI
64370-MKK-D20
|
$155.38 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, R. (INNER)
64521-MJP-G50
|
$20.38 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, L. (INNER)
64571-MJP-G50
|
$20.38 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER, FR. TANK
64611-MKK-D20
|
$25.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, RR. TANK
64712-MKK-D20
|
$13.47 | ||
|
Available to order. Add to View Price |
|||
|
#13
PROTECTOR, RUBBER
77212-MFJ-D00
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, SPECIAL (5MM) (NOT AVAILABLE)
90016-ZA5-000
|
$4.78 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, SPECIAL (6X8)
90106-MKK-D00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, SPECIAL (5X8)
90107-MKK-D20
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, COWL SETTING (5MM)
90111-KW3-003
|
$5.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
CLIP, BUMPER SEAL
90116-SP0-003
|
$5.93 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN (5X20) (SUS)
90118-MJP-G50
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, SPECIAL (5X11)
90122-MJK-N20
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, THRUST (5MM)
90504-964-000
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, CLIP (5MM)
90677-KAN-961
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, TAPPING (4X12)
93903-24380
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
