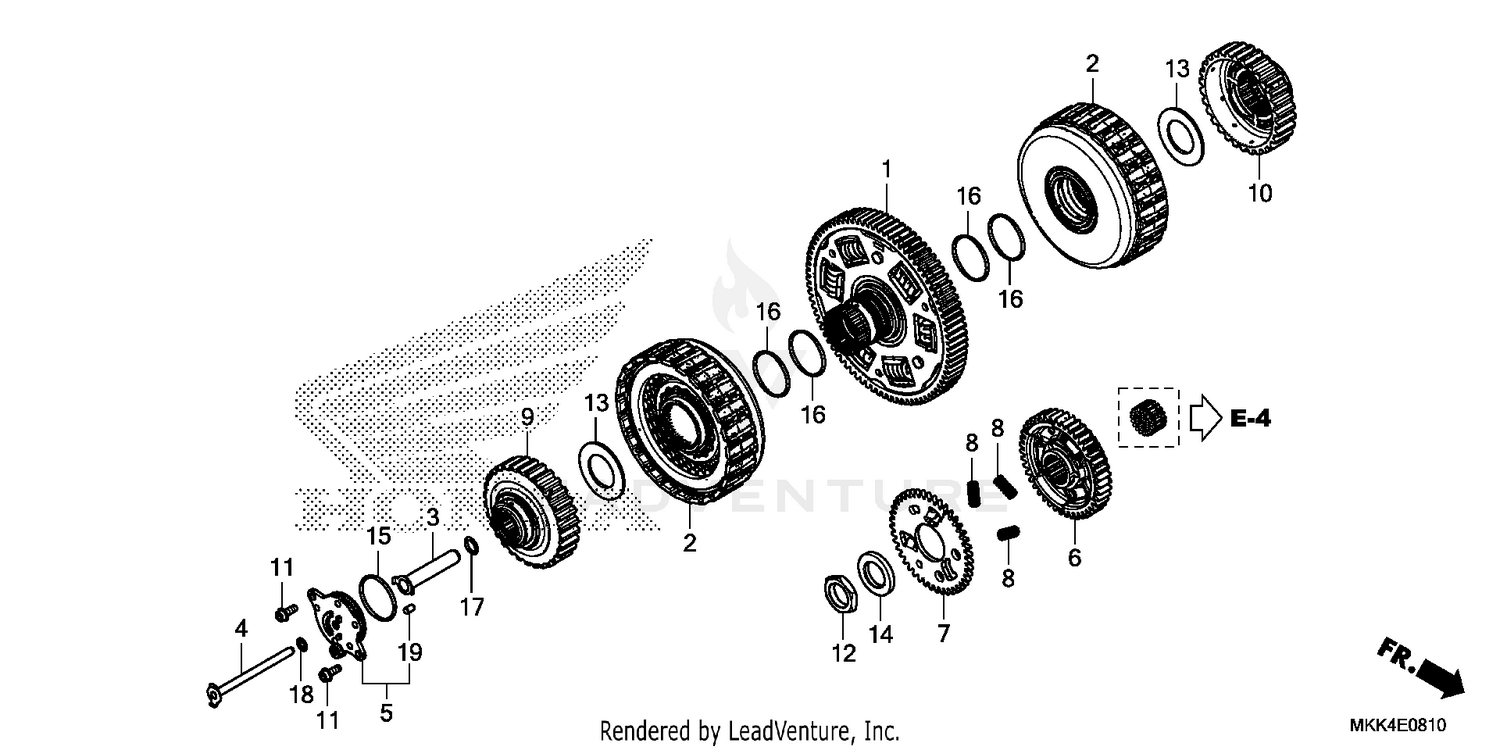

Clutch (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRIMARY DRIVEN (81T)
22100-HL4-003
|
$741.47 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLUTCH ASSY.
22500-MJP-G81
|
$556.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIPE A, FEED
22711-MJP-G80
|
$20.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE B, FEED
22712-MJP-G80
|
$22.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE, FEED PIPE
22720-MJP-G80
|
$86.64 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, PRIMARY DRIVE (43T)
23103-MJP-G80
|
$119.33 | ||
|
Available to order. Add to View Price |
|||
|
#7
SUB-GEAR, PRIMARY (43T)
23104-HL4-000
|
$72.24 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, PRIMARY DAMPER
23115-MW4-000
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUIDE (30T)
23405-MJP-G80
|
$122.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUIDE, SECOND CLUTCH GEAR (30T)
23406-HL4-000
|
$101.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE SOCKET (5X14)
90089-KAS-900
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, LOCK (22MM)
90201-HL4-000
|
$5.89 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER (29.5X50X2)
90403-HL4-000
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER (22X37X5)
90404-HL4-000
|
$8.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING (39.8X2.2)
91302-PA9-003
Superseded by 91302-K0G-911
|
$5.28 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING (35X2.2)
91302-RGC-003
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING (10.7X1.9)
91308-PY4-003
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-RING (6X1.5) (N0K)
91315-PC9-004
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, DOWEL (5X8)
94302-05080
Superseded by 94303-05080
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, DOWEL (5X8)
94303-05080
|
$2.35 | ||
|
Unavailable |
|||
