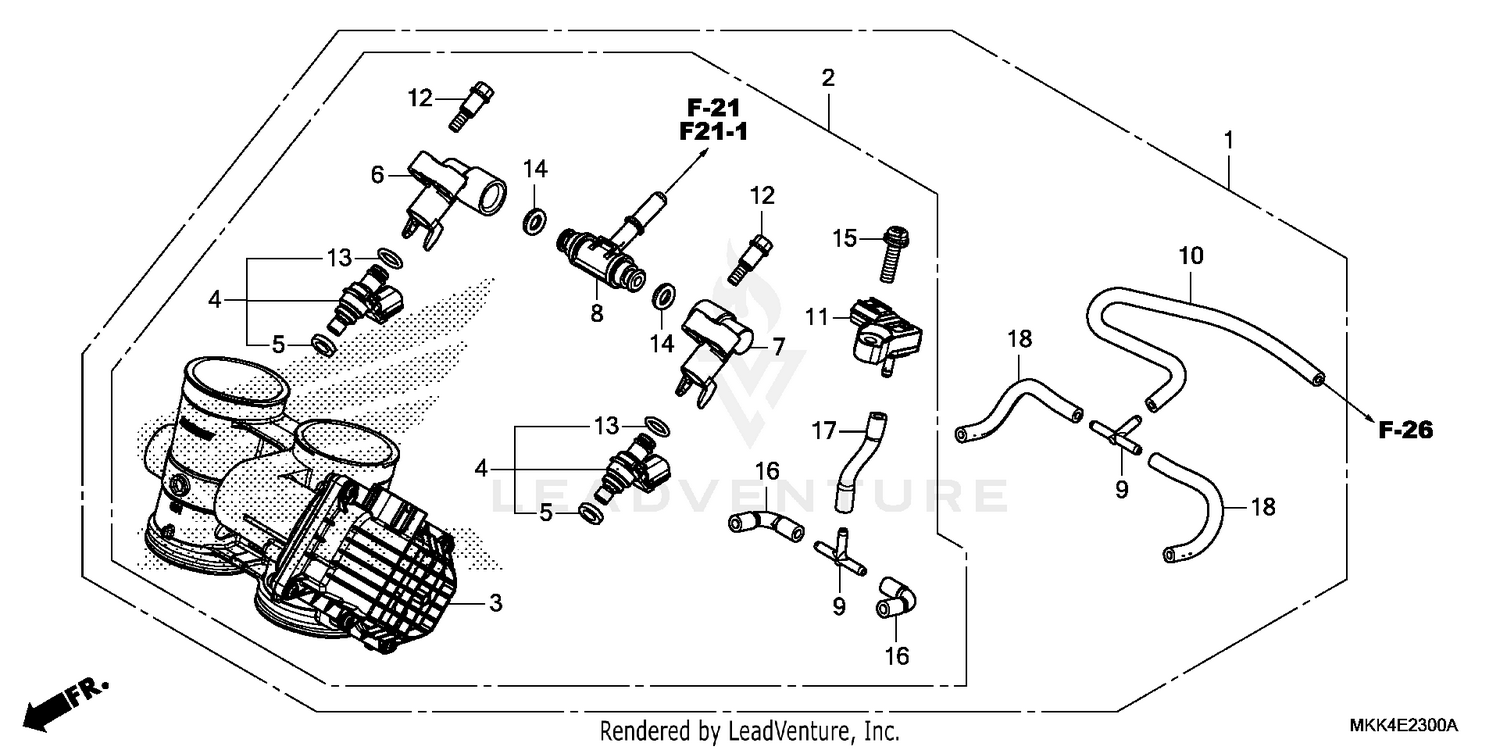

Throttle Body Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY ASSY., THROTTLE (H3A A)
16400-MKK-D02
|
$1,605.24 | ||
|
Available to order. Add to View Price |
|||
|
#3
BODY SET
16410-MKK-D01
|
$971.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
INJECTOR ASSY., FUEL
16450-MJP-G52
|
$225.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING, SEAL (Honda Code 8954000)
16472-KPC-D50
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE, FUEL (A)
16610-HL4-003
|
$17.87 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE, FUEL (B)
16620-HL4-003
|
$11.79 | ||
|
Available to order. Add to View Price |
|||
|
#8
T-JOINT, FUEL
16630-MFJ-D00
|
$26.82 | ||
|
Available to order. Add to View Price |
|||
|
#9
JOINT, VACUUM TUBE (A)
17201-MG9-000
|
$19.31 | ||
|
Available to order. Add to View Price |
|||
|
#10
TUBE
17413-MKK-D00
|
$7.13 | ||
|
Available to order. Add to View Price |
|||
|
#11
SENSOR A, MASTER POWER PRESSURE
46401-TM8-A01
|
$212.30 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, SHOULDER
90021-MGZ-D02
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING (6.3X2.2)
91301-GGL-J01
|
$12.67 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING (7.47X3.6)
91301-PLC-000
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW-WASHER (6X25)
93893-06025-18
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#16
BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)
95005-35001-20M
|
$11.73 | ||
|
Available to order. Add to View Price |
|||
|
#17
BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)
95005-35001-20M
|
$11.73 | ||
|
Unavailable |
|||
|
#18
BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)
95005-35001-20M
|
$11.73 | ||
|
Unavailable |
|||
