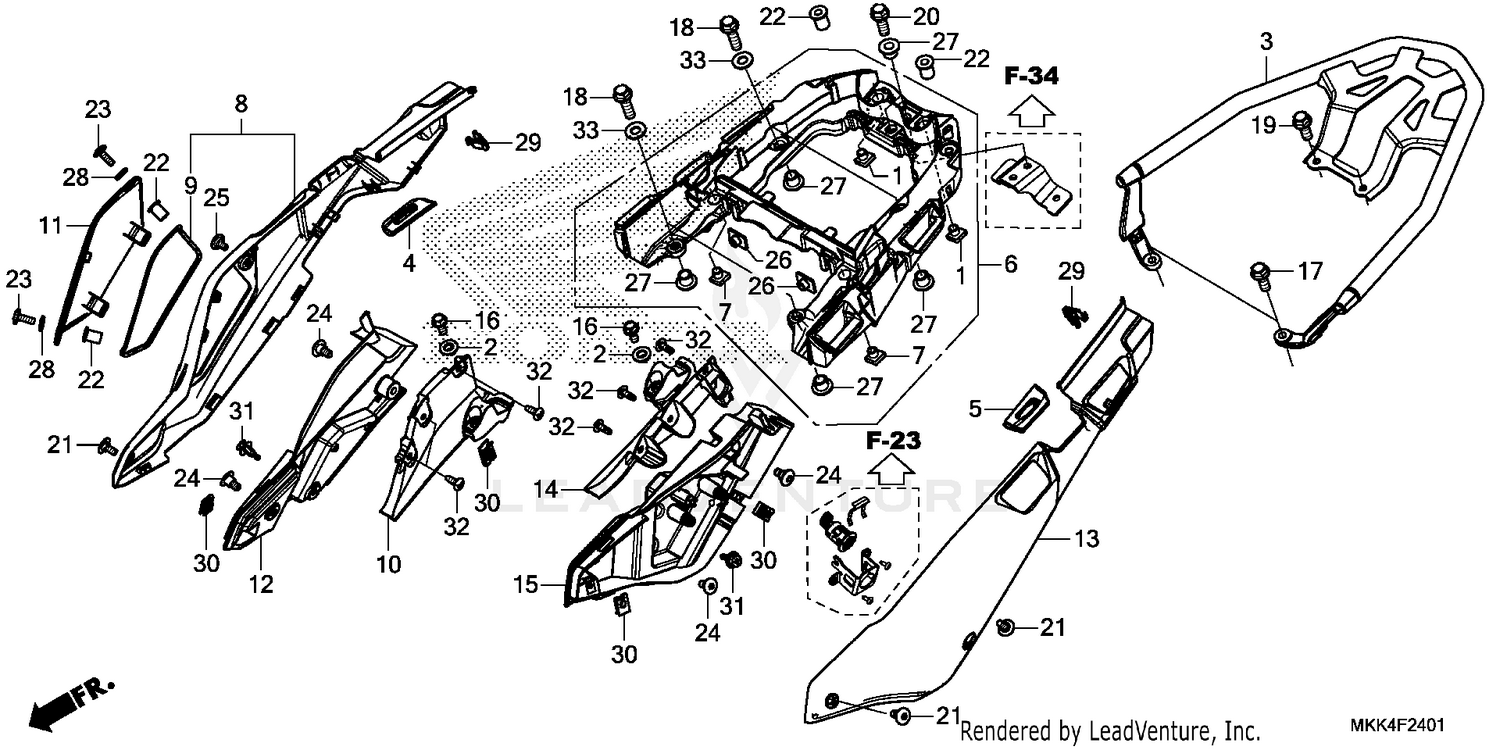

Side Cover@rear Carrier (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NUT, RR. CARRIER (8MM)
61304-MGH-640
|
$7.38 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR, FENDER
80118-MFJ-D00
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
CARRIER, RR.
81210-MKK-D20
|
$841.11 | ||
|
Available to order. Add to View Price |
|||
|
#4
RUB, R. RR. CARRIER
81302-MKK-D20
|
$11.27 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUB, L. RR. CARRIER
81307-MKK-D20
|
$11.27 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, RR. CARRIER
81350-MKK-D20
|
$403.76 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, RR. (8MM)
81351-MKK-D20
|
$8.42 | ||
|
Available to order. Add to View Price |
|||
|
#8
COWL, R. RR. (TYPE1)
83600-MKK-D20ZA
|
$254.64 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL, LID
83615-MKK-D20
|
$5.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
BODY A, R. RR. SIDE
83620-MKK-D20
|
$10.78 | ||
|
Available to order. Add to View Price |
|||
|
#11
LID SET, R. (TYPE1)
83630-MKK-D20ZA
|
$86.04 | ||
|
Available to order. Add to View Price |
|||
|
#12
BODY B, R. RR. SIDE
83640-MKK-D20
|
$20.62 | ||
|
Available to order. Add to View Price |
|||
|
#13
COWL, L. RR. (TYPE1)
83710-MKK-D20ZA
|
$304.25 | ||
|
Available to order. Add to View Price |
|||
|
#14
BODY A, L. RR. SIDE
83720-MKK-D20
|
$10.78 | ||
|
Available to order. Add to View Price |
|||
|
#15
BODY B, L. RR. SIDE
83740-MKK-D20
|
$20.62 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X14)
90030-GHB-630
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (8X20)
90035-GHB-660
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (8X28)
90035-GHB-690
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE (8X16)
90036-GHB-640
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (8X22)
90036-GHB-670
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, SPECIAL (5X12)
90106-MBY-000
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, COWL SETTING (5MM)
90111-KW3-003
|
$5.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SCREW, PAN (5X15)
90113-MCJ-000
|
$2.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
SCREW, SPECIAL (6X14)
90114-KWL-000
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, SPECIAL (5X11)
90122-MJK-N20
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, SPECIAL (6X7)
90303-HA0-680
|
$4.82 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR (8MM)
90450-KG8-000
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, THRUST (5MM)
90504-964-000
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLIP, SNAP FITTING (PO)(NATURAL)
90666-SDA-A01
|
$0.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
NUT, CLIP (5MM)
90677-KAN-961
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLIP, BODY
90683-MBW-003
|
$2.71 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
SCREW, TAPPING (4X12)
93903-34380
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLAIN (8MM)
94101-08800
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
