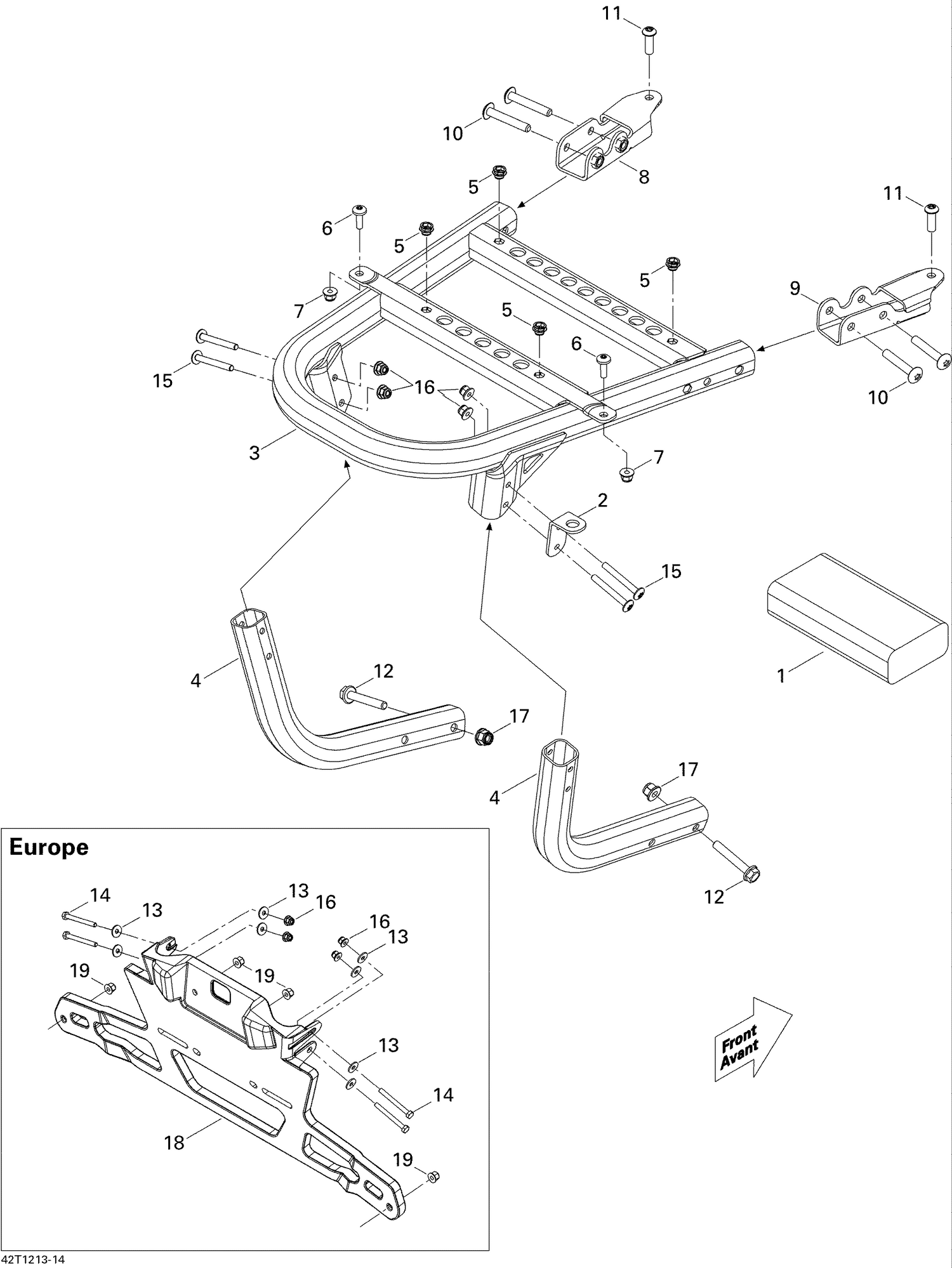

09- Rear Cargo Box Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Tool Kit
704700148
Superseded by 704700162
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
FLAG SUPPORT - Call your local BRP dealership
705005837
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
Kit Rear Bumper
715001894
|
$248.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Deep Black, Rear Pillar -SB
705004981
Superseded by 705018526
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Threaded Insert M6 X 1.0
293450274
Superseded by 250100242
|
|||
|
Unavailable |
|||
|
#6
Torx Screw M6 X 20
250000075
Superseded by 250000712
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#7
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
LH Front Bracket
705004977
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
RH Front Bracket
705004978
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Torx Truss Screw M8 X 50
250000298
Superseded by 250000761
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#11
Torx Screw M8 X 25, Scotch Grip
250000283
|
$6.39 | ||
|
Available to order. Add to View Price |
|||
|
#12
Hex. Flange Screw M8 X 50
207685044
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#13
Flat Washer 6 mm
234062410
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#13
Flat Washer 6 mm
234062410
|
$0.79 | ||
|
Unavailable |
|||
|
#14
Hex. Screw M6 X 60
207066044
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#15
Hex. Screw M6 X 60
207066044
|
$0.69 | ||
|
Unavailable |
|||
|
#16
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
Unavailable |
|||
|
#17
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
Plate Support
708300553
|
$24.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
Flange Elastic Nut M5
233251414
Superseded by 233251434
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
