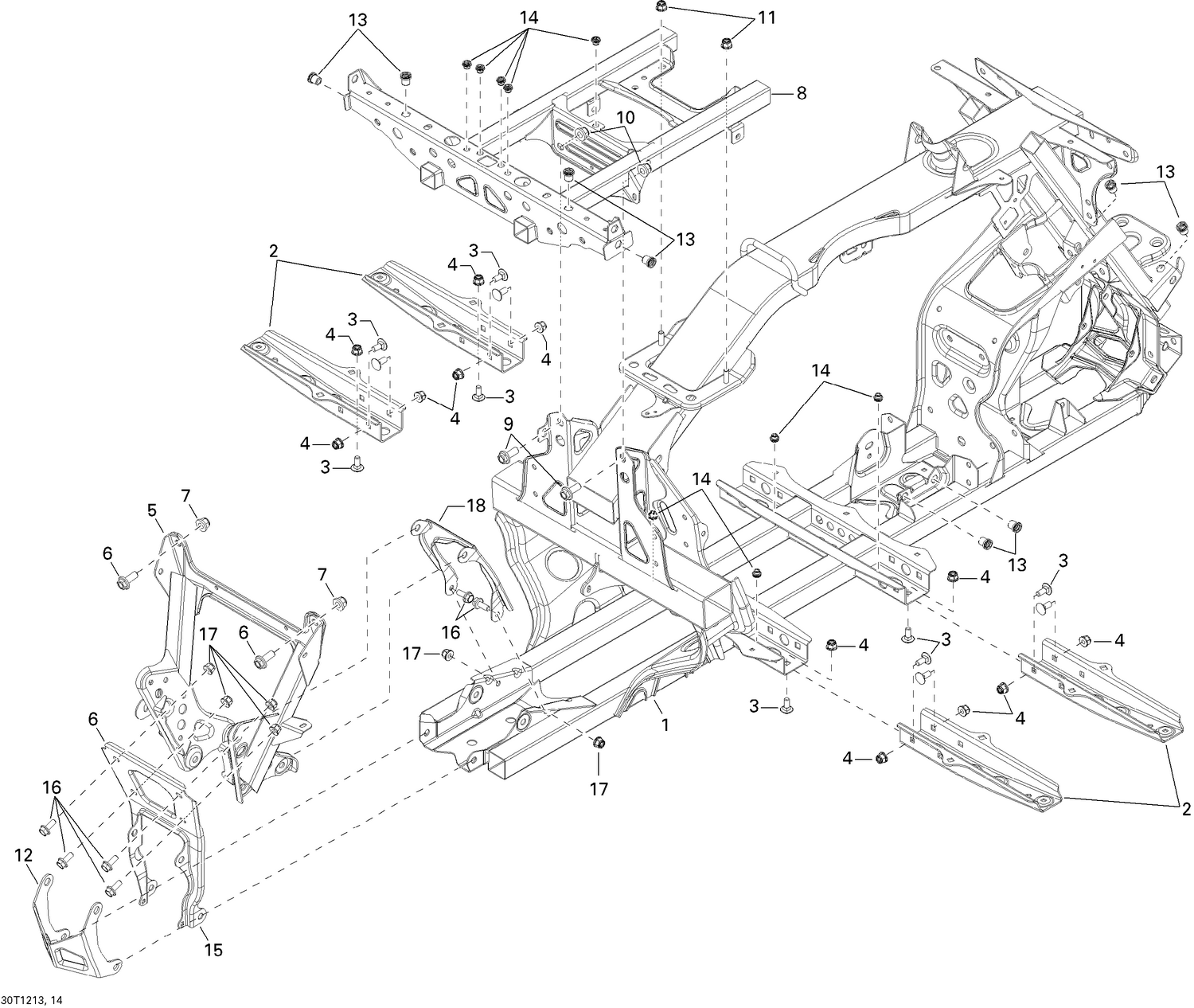

09- Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME, BLACK - Call your local BRP dealership
705202248
Superseded by 705203598
|
$859.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SUPPORT KIT - Call your local BRP dealership
705202021
Superseded by 703500852
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Carriage Bolt, M8 X 20
207782044
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
Rear Pillar
705201907
Superseded by 705210818
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Hex. Flange Screw M10 X 25
207602546
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#7
Hex. Flange Elastic Nut M10
233201416
Superseded by 233201436
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
WELDED EXTENSION, BLACK - Call your local BRP dealership
705202291
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Hex. Flange Screw M10 X 25
207602546
|
$2.19 | ||
|
Unavailable |
|||
|
#10
Hex. Flange Elastic Nut M10
233201416
Superseded by 233201436
|
$2.19 | ||
|
Unavailable |
|||
|
#11
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
Unavailable |
|||
|
#12
Differential Protector
705202592
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Insert Half Hex Body M8 x 1.25
293450307
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#14
Threaded Insert M6 X 1.0
293450232
Superseded by 250100242
|
|||
|
Unavailable |
|||
|
#15
Rear Support
705202846
Superseded by 705203301
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Hex. Flange Screw M8 X 20
207682046
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
FRONT LINK - Call your local BRP dealership
705202900
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
