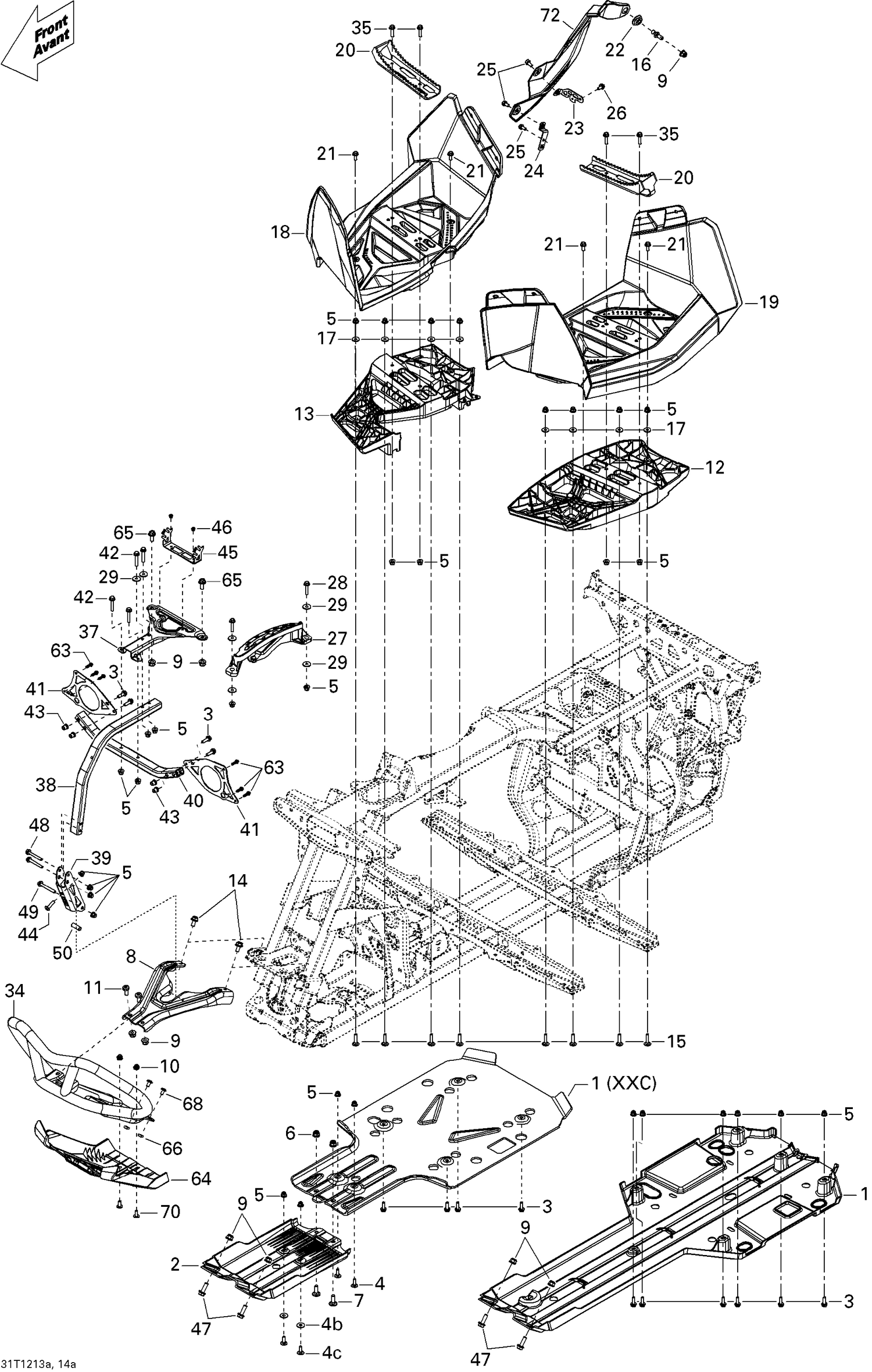

09- Body And Accessories 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Protective Plate Kit
705004154
Superseded by 715002374
|
$64.49 | ||
|
Available to order. Add to View Price |
|||
|
#1
Ens Protec Cen.*Kit Cent. Skid
705202331
Superseded by 715002078
|
$138.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Skid Plate, Front
715000925
|
$92.99 | ||
|
Unavailable |
|||
|
#2
Skid Plate
705005775
Superseded by 705007820
|
$20.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
Hex. Flange Screw M6 X 20
207662084
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
Hex. Flange Screw M6 X 20
207662084
|
$1.69 | ||
|
Unavailable |
|||
|
#4
Carriage Bolt M6 X 20
207762044
|
$1.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4b
Torx Screw M6 X 20
250000075
Superseded by 250000712
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#4c
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
Flange Elastic Nut M6
233261434
|
$4.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
Flange Elastic Nut M6
233261434
|
$4.49 | ||
|
Unavailable |
|||
|
#6
Hex. Flange Elastic Nut M8
233281434
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#7
Carriage Bolt, M8 X 25
207782544
|
$1.59 | ||
|
Available to order. Add to View Price |
|||
|
#8
Bumper Support
705003505
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Hex. Flange Elastic Nut M8
233281434
|
$2.19 | ||
|
Unavailable |
|||
|
#10
Insert Half Hex Body M8 x 1.25
293450307
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#11
Torx Screw M8 X 20, Scotch Grip
250000117
Superseded by 250000740
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#12
LH Footboard
705004176
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
RH Footboard
705004177
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Hex. Flange Screw M8 X 20
207682044
|
$1.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
Carriage Bolt M6 X 30
207763044
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
Ball Head Stud
250300039
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#17
Flat Washer 6 mm
234062410
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#19
LH Footboard/Fender
705004730
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
RH Footboard/Fender
705004729
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Footrest
705002326
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Hex. Flange Screw M6 X 16
207661684
Superseded by 207661654
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#22
Oval Washer
705000321
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
|
#23
Engine Cover Support
705002667
Superseded by 705011461
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
Engine Cover Support
705003646
|
$9.23 | ||
|
Available to order. Add to View Price |
|||
|
#25
Hex. Flange Screw M6 X 12
210261280
Superseded by 210261250
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
Hex. Flange Screw M6 X 12, Scotch Grip
207561244
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Lever Indicator
705003838
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Hex. Flange Screw M6 X 30, Scotch Grip
207663044
Superseded by 207563034
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
Flat Washer
224061201
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#34
Front Bumper
705004993
Superseded by 705011635
|
$280.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Hex. Flange Screw M6 X 25
207662584
Superseded by 207662554
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
Bracket
705003599
|
$24.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
Front Sectinal Bent Tube
705003511
Superseded by 705016643
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
Support
705002282
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
Bent Sectional Tube
705003510
Superseded by 705016093
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
Painted Headlamp Support
705004309
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
Hex. Flange Screw M6 X 35
207663544
|
$0.92 | ||
|
Available to order. Add to View Price |
|||
|
#43
Insert
415107300
Superseded by 293450275
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
Torx Screw M6 x 25
250000284
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#45
Fuse Holder
710002482
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
Pop Rivet 3/16"
390402400
|
$0.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
Hex. Flange Screw M8 X 25
207682544
|
$1.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#48
Hex. Flange Screw M6 X 45
207664544
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#49
Hex. Flange Screw M6 X 50
207665044
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#50
Spacer
705005809
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#63
Hex. Flange Screw K50 X 2.24 X 16
241151640
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#64
Front Bumper Plate
705004850
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#65
Hex. Flange Screw M8 X 20
207682044
|
$1.19 | ||
|
Unavailable |
|||
|
#66
Square Nut M6
232862412
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#68
Torx Screw M6 X 12
250000454
|
$4.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#70
Torx Truss Screw M6 X 16
250000129
Superseded by 250000721
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#72
Engine Cover
705004966
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
