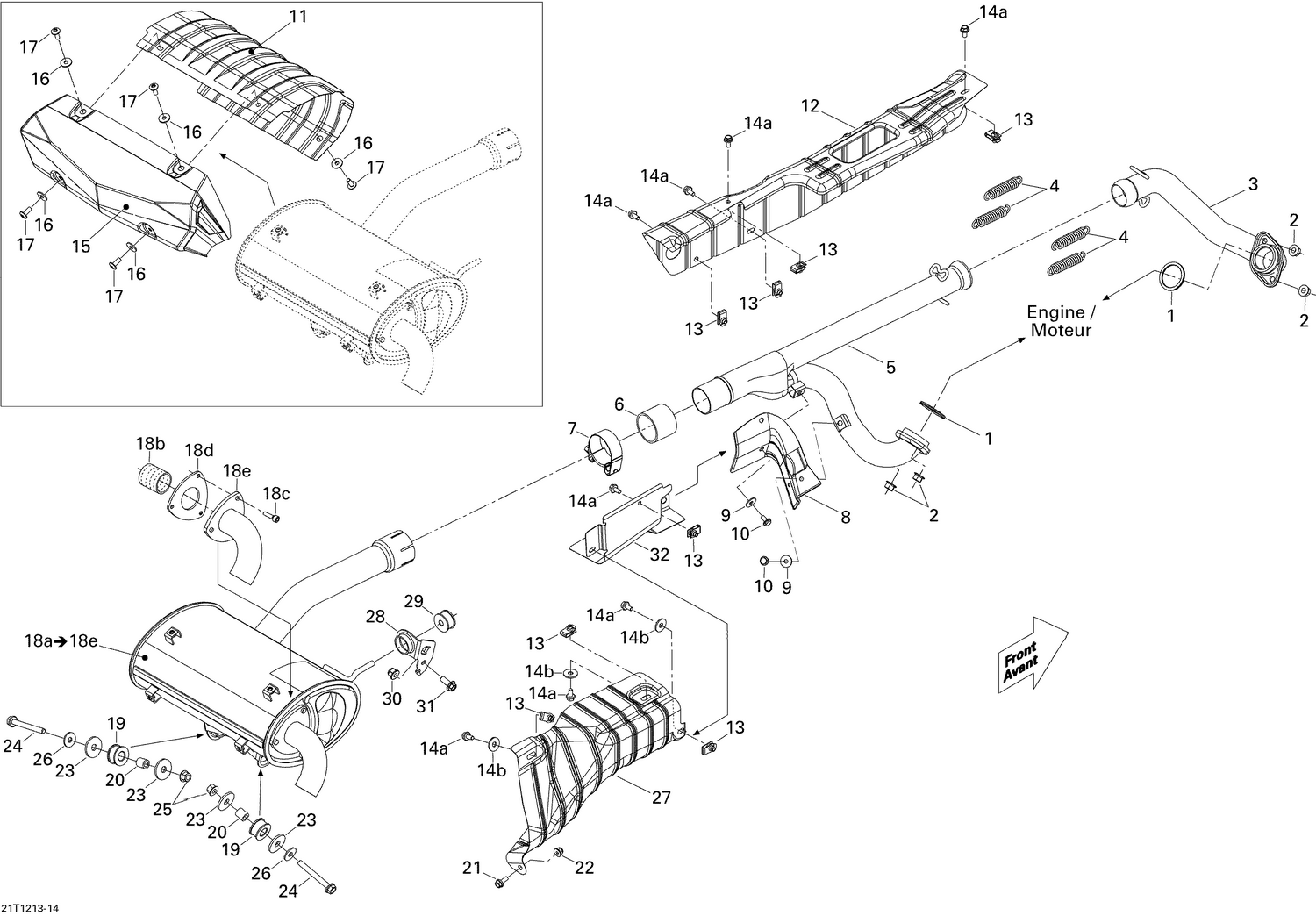

01- Exhaust System Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Gasket
707600317
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
Hex. Flange Nut M8
233081416
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#3
Front Head Pipe
707600764
|
$142.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Spring
415107100
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
Rear Head Pipe
707600766
Superseded by 707601446
|
$206.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
Pipe Gasket
707600955
Superseded by 707601544
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
Norma Gear Clamp
293650177
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
Pipe Protector
707600932
|
$15.81 | ||
|
Available to order. Add to View Price |
|||
|
#9
Flat Washer
391302000
Superseded by 250200082
|
$0.44 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
Hex. Flange Screw M6 X 12
250000574
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#11
Heat Deflector
707600737
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
Heat Shield
707600712
Superseded by 707603724
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Panel Nut M6 X 1.0
250000048
Superseded by 250100198
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14a
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14b
Flat Washer 6 mm
234062410
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#15
Heat Deflector
707600738
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Stainless Steel Flat Washer
234062670
|
$2.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
Torx Screw M6 X 16
250000223
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#18a
MUFFLER_EXHAUST - Call your local BRP dealership
707600748
|
$550.99 | ||
|
Available to order. Add to View Price |
|||
|
#18a
Muffler
707600749
|
$569.99 | ||
|
Available to order. Add to View Price |
|||
|
#18b
Spark Arrester
715900089
Superseded by 707601803
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#18c
Socket Head Screw M6 X 20
205062060
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#18d
Gasket
715900149
Superseded by 707601799
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#18e
MUFFLER END PIECE - Call your local BRP dealership
715900144
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Vibration Damper
707600701
Superseded by 707603323
|
$11.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
Bushing
293900106
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#21
Hex. Flange Screw M6 X 16
207661684
Superseded by 207661654
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#22
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
Washer
503032900
|
$3.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
Hex. Flange Screw M8 X 70
207687044
|
$7.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
Hex. Flange Nut M8
233081416
|
$1.19 | ||
|
Unavailable |
|||
|
#26
Flat Washer 8 mm
234082410
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
Protector Kit
707600869
Superseded by 703500816
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Support
707600933
|
$7.90 | ||
|
Available to order. Add to View Price |
|||
|
#29
Anti-Vibration Rubber
707600702
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
|
#30
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
Hex. Flange Screw
207682034
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#32
HEAT DEFLECTOR - Call your local BRP dealership
707600983
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
