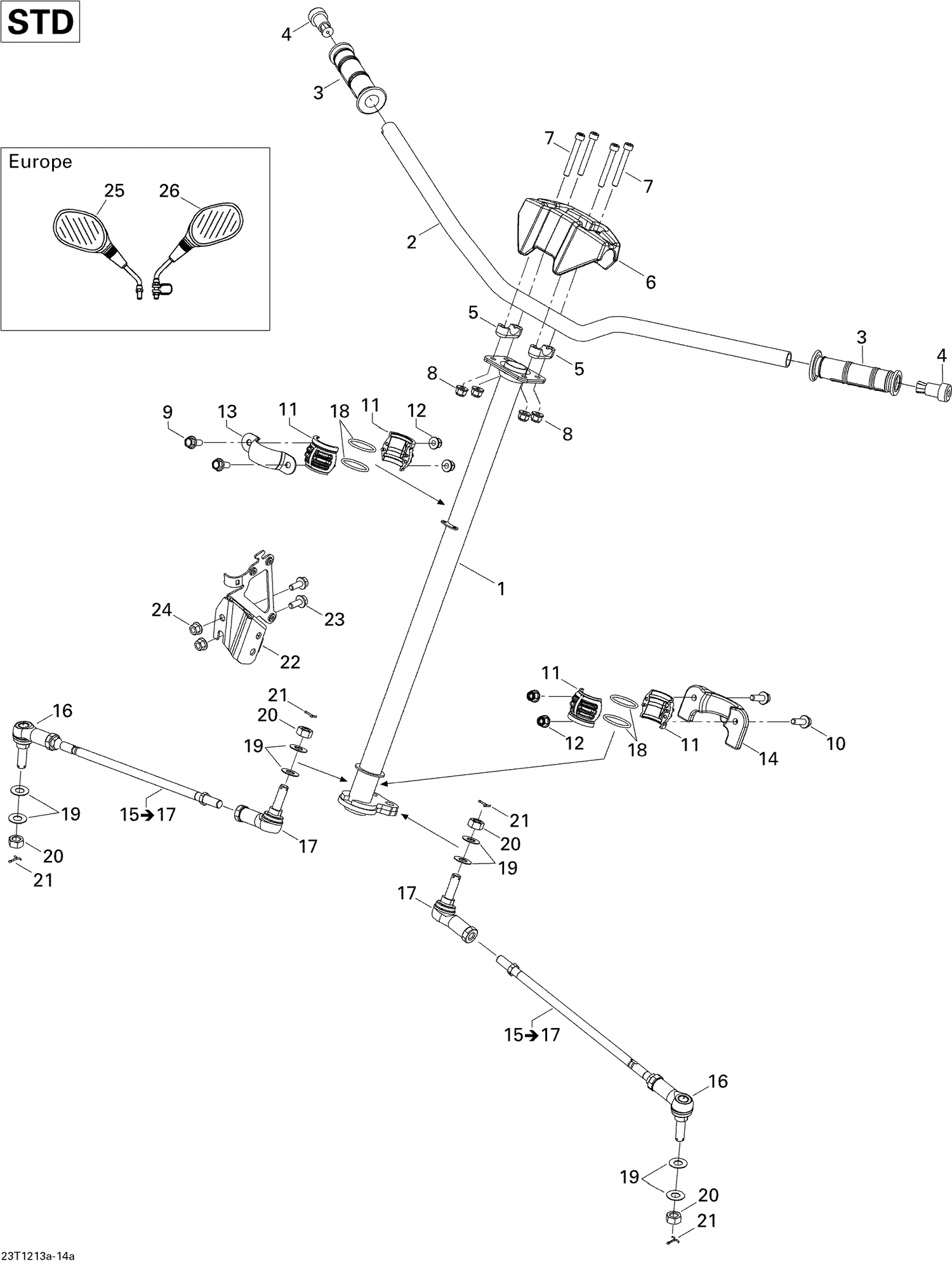

07- Steering Std Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Main Tube
709401008
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Handlebar
709400880
Superseded by 709401242
|
$64.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
Handle Grip
709400493
|
$14.83 | ||
|
Available to order. Add to View Price |
|||
|
#4
End Piece
709400449
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
Steering Support
709400919
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SUPPORT - Call your local BRP dealership
709400920
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Socket Head Screw M8 X 60
205086060
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#8
Hex. Elastic Flange Nut M8
233281416
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
Hex. Flange Screw M8 X 25
207682544
|
$1.39 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
Spherical Half Bushing
709400783
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#12
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
Upper Column Attachment
709400827
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#14
Column Attachment
709400912
Superseded by 709401428
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Tie Rod Ass`y
703500783
Superseded by 703501038
|
$96.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
LH Ball Joint
709400486
Superseded by 709402303
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
RH Ball Joint
709400490
Superseded by 709402302
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
O-Ring
293300068
|
$7.79 | ||
|
Available to order. Add to View Price |
|||
|
#19
Hardened Washer
706200281
|
$2.89 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
Nut M12
250100099
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#21
Cotter Pin
211400013
|
$0.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
RH STEERING BRACKET - Call your local BRP dealership
709400994
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
|
$1.69 | ||
|
Unavailable |
|||
|
#24
Hex. Flange Nut M8
233081416
|
$1.19 | ||
|
Available to order. Add to View Price |
|||
|
#25
LH Mirror
709400406
|
$33.99 | ||
|
Unavailable |
|||
|
#26
RH Mirror
709400523
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
