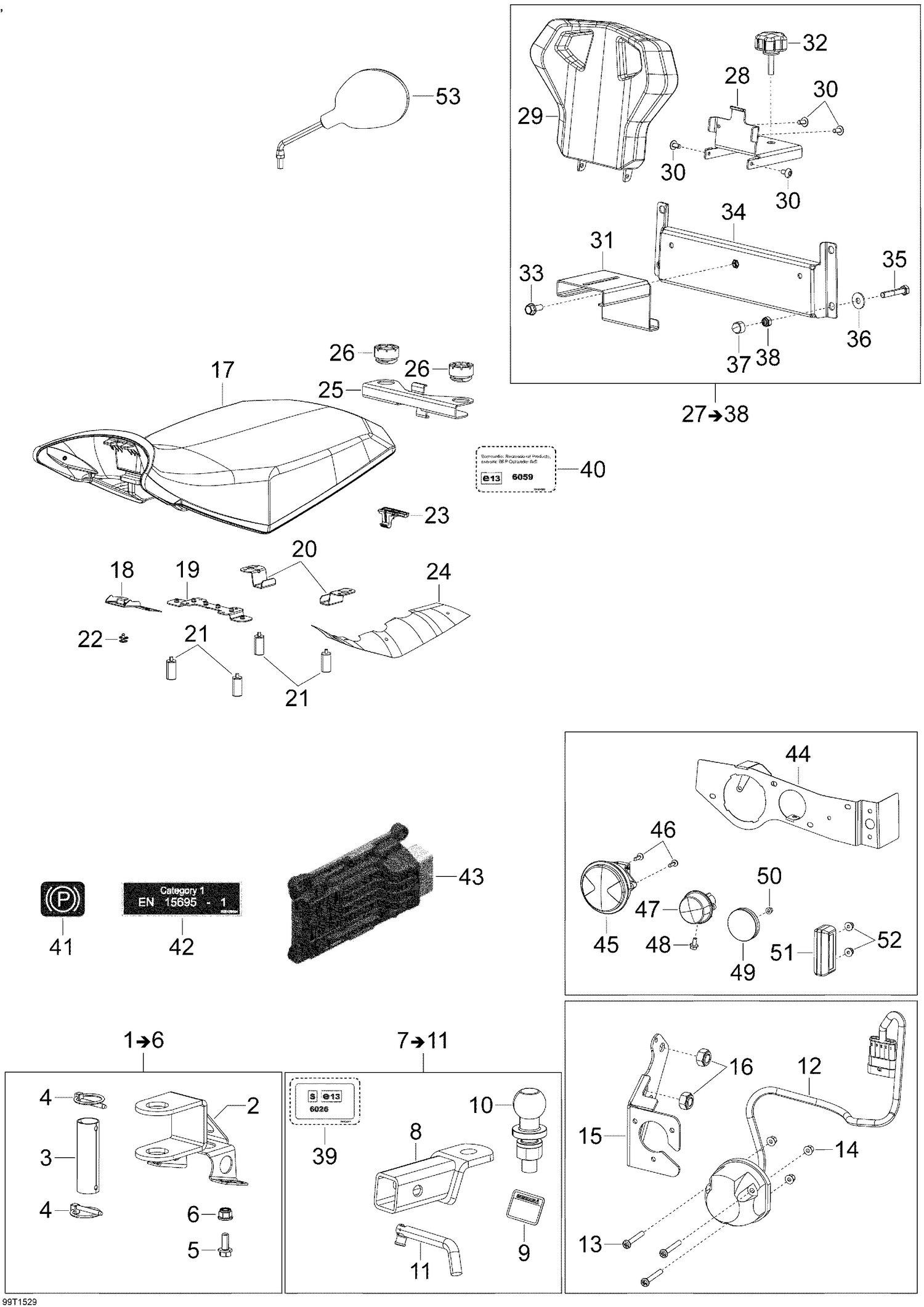

11- T3 Parts _99t1529 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Not Available As Spare Part - Front Coupling Device Ass'y
|
|||
|
Unavailable |
|||
|
#2
Front Coupling Device
605256497
Superseded by 705205025
|
|||
|
Unavailable |
|||
|
#3
Pin
605456511
|
|||
|
Unavailable |
|||
|
#4
Pin
605456518
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Hex. Flange Screw M8 X 20
207682044
|
$1.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
Coupling Ball Ass'y
715002872
|
|||
|
Unavailable |
|||
|
#8
Not Available As Spare Part - Ball Mount
|
|||
|
Unavailable |
|||
|
#9
Not Available As Spare Part - Warning Decal (EN)
|
|||
|
Unavailable |
|||
|
#9
Not Available As Spare Part - Warning Decal (FR)
|
|||
|
Unavailable |
|||
|
#10
Not Available As Spare Part - Ball 50mm
|
|||
|
Unavailable |
|||
|
#11
Hitch Pin
705204490
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Trailer Harness
515177667
|
|||
|
Unavailable |
|||
|
#13
Not Available As Spare Part - Screw M5 x 35
|
|||
|
Unavailable |
|||
|
#14
Flange Elastic Nut M5
233251434
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
Plug Fastening Plate
705204572
|
|||
|
Unavailable |
|||
|
#16
Elastic Stop Nut M10
232500416
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Seat Ass'y
605156590
Superseded by 708002208
|
|||
|
Unavailable |
|||
|
#18
Front Bottom Support
605456520
|
|||
|
Unavailable |
|||
|
#19
Support Central Cushion
510005986
|
|||
|
Unavailable |
|||
|
#20
Support Rear Cushion
510005988
|
|||
|
Unavailable |
|||
|
#21
RUBBER DAMPER - Call your local BRP dealership
605456546
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Rivet
293150067
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Latch
708000909
|
$6.39 | ||
|
Available to order. Add to View Price |
|||
|
#24
HEAT SHIELD - Call your local BRP dealership
705005761
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#25
RAISER, SEAT (REAR) - Call your local BRP dealership
705204016
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Bumper Rubber
708000760
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Not Available As Spare Part - Backrest Ass'y
|
|||
|
Unavailable |
|||
|
#28
Angle Support
705204093
|
|||
|
Unavailable |
|||
|
#29
Backrest
708001751
Superseded by 708001794
|
|||
|
Unavailable |
|||
|
#30
Torx Truss Screw M6 x 12
250000675
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#31
Backrest Fixing Body Painted
708001607
|
|||
|
Unavailable |
|||
|
#32
Handle M8 X 35
510003533
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
Hex. Flange Screw M8 X 20
207682046
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
Back Rest Support
708001611
|
|||
|
Unavailable |
|||
|
#35
Hex. Screw M8 X 45
207084544
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
Stainless Steel Flat Washer
234082670
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#37
Cover
28056
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
Hex. Elastic Stop Nut M8
232581414
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#39
Instruction Decal
704904417
|
|||
|
Unavailable |
|||
|
#40
Instruction Decal
704904599
|
|||
|
Unavailable |
|||
|
#41
P-Decal, T3
605356244
|
|||
|
Unavailable |
|||
|
#42
Cabin Decal, T3
605456594
|
|||
|
Unavailable |
|||
|
#43
ECU Module
420266929
Superseded by 420464030
|
$1,289.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
LH Tail Light Plate
605356527
|
|||
|
Unavailable |
|||
|
#44
RH Tail Light Plate
605356528
|
|||
|
Unavailable |
|||
|
#45
Tail Light Ass'y
710001645
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
Torx Screw K50 X 16
250000720
|
$1.69 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
Flasher
710002964
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
Hex. Flange Screw M6 X 12, Scotch Grip
207561244
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
Red Reflector
705002408
Superseded by 705011221
|
$14.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#50
Flange Elastic Nut M5
233251434
|
$2.09 | ||
|
Unavailable |
|||
|
#51
Light
710002055
Superseded by 710008467
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
Hex. Flange Elastic Nut M6 x 1.0
233261414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#53
LH Mirror
709400406
|
$33.99 | ||
|
Unavailable |
|||
|
#53
RH Mirror
709400407
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
