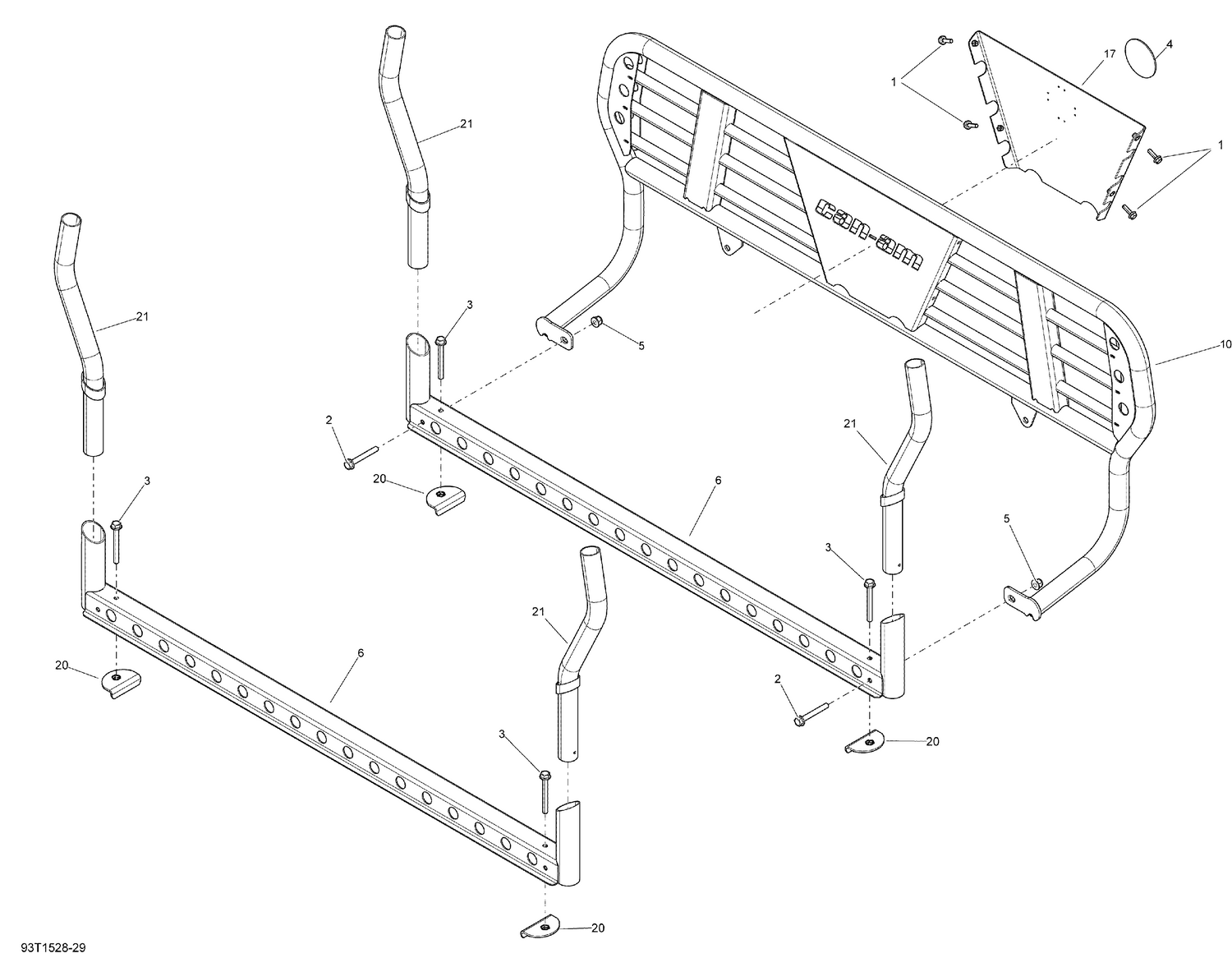

09- Forestry Log Bar_93t1528 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Hex. Flange Screw M6 x 20
207662056
|
$1.09 | ||
|
Available to order. Add to View Price |
|||
|
#2
Hex. Flange Screw M8 x 60
207686044
|
$3.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
Hex. Flange Screw M8 X 70
207687044
|
$7.59 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRP Logo 68mm
219903609
Superseded by 516008739
|
$16.99 | ||
|
Unavailable |
|||
|
#5
Hex. Flange Elastic Nut M8
233281414
|
$1.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
FRAME TUBE PAINTED - Call your local BRP dealership
708300974
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Front Wall Assembly
708301554
|
|||
|
Unavailable |
|||
|
#17
COVER PLATE - Call your local BRP dealership
708301072
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
FASTENING PLATE - Call your local BRP dealership
708301094
|
$5.39 | ||
|
Available to order. Add to View Price |
|||
|
#21
LOG BAR PAINTED - Call your local BRP dealership
708301277
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
